Laser Safety for 650 nm, 5 mW Red Lasers

1. Introduction

Red laser modules operating at a wavelength of approximately 650 nanometers (nm) with a maximum output power of 5 milliwatts (mW) are widely used in commercial, industrial, educational, and hobbyist applications. Typical uses include alignment tools, positioning guides, optical experiments, robotics, measurement systems, and DIY electronics projects. While these lasers are considered low-power compared to industrial or medical lasers, they still present real and identifiable hazards if misused or mishandled.

This document provides a detailed overview of laser safety considerations for 650 nm, five mW red laser point modules, typically housed in 12 mm cylindrical casings. It explains laser classification, biological hazards, risk factors, safe operating practices, regulatory considerations, and recommended control measures. The intent is to promote safe use while maintaining awareness of regulatory and practical responsibilities.

2. Laser Classification

2.1 IEC and ANSI Classification

Under IEC 60825-1 (the international laser safety standard), a visible continuous-wave laser with output power up to and including five mW is classified as:

• Class 3R

Under older IEC terminology and the ANSI (United States) standard, this same laser is often referred to as:

• Class IIIa

Both classifications describe lasers that are potentially hazardous when exposed directly to the eye, but present a low risk of injury when used responsibly and as intended.

2.2 Meaning of Class 3R

Class 3R lasers:

• Are visible (400–700 nm)

• Have output power between 1 mW and five mW

• Exceed the safe exposure limit for intentional staring

• Do not usually require protective housings or interlocks

• Require clear warning labels and user awareness

Class 3R lasers are widely allowed for commercial sale, but their use still requires basic safety discipline.

3. Optical Characteristics of a Laser Safety for 650 nm Laser

3.1 Wavelength and Visibility

At 650 nm, red light lies near the upper end of the visible spectrum. While it is visible to the human eye, the eye’s sensitivity at 650 nm is lower than at green wavelengths (~532 nm). As a result, users may underestimate brightness and risk, even though retinal exposure may still be hazardous.

3.2 Beam Profile

A point-type laser module typically emits:

• A collimated beam with low divergence

• A small spot size at close range

• Increasing beam diameter over distance

Low divergence increases hazard potential because more optical power is concentrated into a small retinal spot.

4. Biological Hazards

4.1 Eye Hazards

The primary hazard of a 650 nm, 5fivemW laser is eye injury.

When visible laser light enters the eye:

• The cornea and lens focus the beam onto the retina

• Optical focusing can increase irradiance by up to 100,000 times

• Even brief exposure can exceed safe retinal limits

Potential effects include:

• Temporary visual disturbance or glare

• Retinal heating

• Retinal burns (in rare cases of prolonged exposure)

• Permanent blind spots (scotomas) in severe cases

The natural blink reflex (approximately 0.25 seconds) provides some protection, but it cannot be relied upon as a safety control.

4.2 Skin Hazards

At five mW, skin injury is unlikely under normal conditions. Prolonged exposure at very close range may cause minor warming but does not typically result in burns. Skin exposure is considered a secondary hazard compared to eye exposure.

4.3 Fire Hazards

Class 3R red lasers do not present a fire risk under normal operating conditions. They lack sufficient power density to ignite materials.

5. Risk Factors That Increase Hazard

Even within Class 3R limits, several factors can significantly increase risk:

5.1 Optical Aids

Viewing a laser beam through:

• Magnifying glasses

• Telescopes

• Binoculars

• Camera lenses

can concentrate the beam, increasing exposure well beyond safe limits.

5.2 Reflective Surfaces

Specular (mirror-like) reflections from:

• Polished metal

• Glass

• Mirrors

• Chrome-plated surfaces

can redirect the beam into the eye with little loss of intensity.

5.3 Close-Range Exposure

At short distances:

• Beam diameter is the smallest

• Power density is highest

• The retinal hazard is greatest

5.4 Misalignment and Unsecured Mounting

Handheld or poorly mounted laser modules are more likely to:

• Sweep across eye level

• Be unintentionally directed at observers

6. Safe Operating Practices

6.1 General Safety Rules

When using a 650 nm, five mW red laser:

• Never look directly into the beam

• Never point the laser at people or animals

• Avoid eye-level beam paths

• Keep the beam terminated on a non-reflective surface

• Use the laser only for its intended purpose

6.2 Beam Control

Good beam management significantly reduces risk:

• Mount lasers securely in fixed holders

• Align beams well below or above eye level

• Use beam stops made of matte, non-reflective materials

• Avoid unnecessary beam exposure

6.3 Work Environment

• Operate in well-lit environments to reduce pupil dilation

• Restrict access when aligning or testing

• Clearly mark the laser operating area

7. Protective Equipment

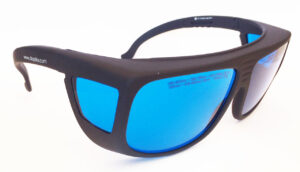

7.1 Laser Safety Eyewear

For Class 3R lasers, protective eyewear is not always mandatory, but it is strongly recommended during:

• Alignment procedures

• Optical experimentation

• Extended exposure scenarios

Appropriate eyewear should:

• Be rated for 650 nm

• Provide sufficient optical density (OD)

• Meet applicable safety standards

7.2 When Eyewear Is Recommended

Consider eyewear when:

• Using multiple lasers

• Working near reflective components

• Operating the laser continuously

• Supervising inexperienced users

8. Labelling and Use Labelingation

8.1 Required Labelling

A 650 nm, five mW laser should carry:

• Laser warning label

• Class designation (Class 3R / IIIa)

• Wavelength and maximum output power

• Manufacturer or supplier identification

Example warning text:

“Laser Radiation – Avoid Direct Eye Exposure – Class 3R Laser Product”

8.2 Documentation

Users should be provided with:

• Basic safety instructions

• Intended use description

• Warnings against misuse

• Power supply requirements

9. Regulatory Considerations

9.1 International Standards

Key standards governing low-power lasers include:

• IEC 60825-1 (International)

• ANSI Z136 series (United States)

• Local regulatory frameworks depend on the region

Compliance Labelling involves correct labelling, output limits, and documentation rather than licensing for low-power lasers.

9.2 Consumer and Commercial Use

In most jurisdictions:

• 5 mW red lasers are legal for sale

• Restrictions may apply to misuse (e.g., aiming at aircraft)

• Employers may have additional workplace safety obligations

10. Educational and Hobbyist Use

10.1 Use in Education

650 nm, five mW lasers are commonly used in:

• Physics demonstrations

• Optics experiments

• Alignment exercises

In educational environments:

• Supervision is essential

• Clear safety briefings should be provided

• Students should not handle lasers unsupervised

10.2 DIY and Maker Projects

When integrating laser modules into projects:

• Include physical barriers where possible

• Design enclosures to prevent accidental exposure

• Avoid free-space beams unless necessary

11. Children and Public Access

Class 3R lasers should not be treated as toys.

If used in public or semi-public settings:

• Access should be controlled

• Beam paths should be inaccessible

• Warning signage should be visible

Children should only interact with devices equipped with lasers under adult supervision.

12. Storage and Transport

When not in use:

• Disconnect power sources

• Store lasers in protective packaging

• Avoid leaving lasers energised unintentionally

• Prevent unauthorised access

During transport:

• Ensure the laser cannot be powered on accidentally

• Protect the aperture from damage

13. Incident Response

If accidental eye exposure is suspected:

• Turn off the laser immediately

• Avoid further exposure

• Seek medical evaluation if visual disturbance occurs

• Document the incident for safety review

Prompt evaluation is essential even if symptoms seem mild.

14. Summary and Best Practices

Laser Safety for 650 nm is a versatile and widely used light source that provides strong visibility with relatively low power. However, it can still cause eye injury when misused. By understanding its classification, hazards, and safe operating principles, users can significantly reduce risk.

Key takeaways:

• Classified as Class 3R / IIIa

• Eye exposure is the primary hazard

• Avoid direct viewing and reflective surfaces

• Secure mounting and beam control are essential

• Labelling and user education are critical safety controls

Responsible use ensures that low-power red laser modules can be operated safely and effectively across a wide range of applications.
