0.66 Inch Blue or White SPI OLED LCD 64×48 7pin

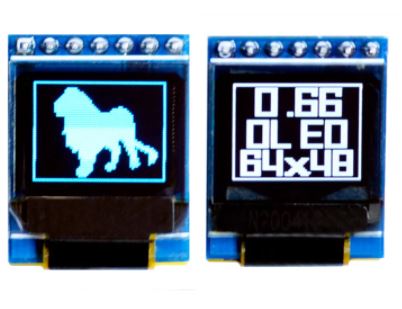

This is another tiny OLED display that has 64×48 pixels resolution, with SSD1306 display IC. it has two display colour options, (blue and white) to choose
$8.15
This item: 0.66 Inch Blue or White SPI OLED LCD 64x48 7pin
$8.15
$8.15
Description
Additional information
Applications
Support & Utility
Q & A
0.66 Inch Blue or White SPI OLED LCD 64×48 7pin resolution in which the emissive electroluminescent layer is a film of organic compound that emits light in response to an electric current.
Working without a backlight, the OLED display module could give out light by itself.
An OLED screen can achieve a higher contrast ratio than an LCD in low ambient light conditions such as a dark room.
The OLED display module also has a much faster response time than an LCD.
The display with small dimensions is suitable for MP3, function cellphones, smart health devices, etc.
Features :
- Driver IC: SSD1306
- Size: 0.66 inch OLED

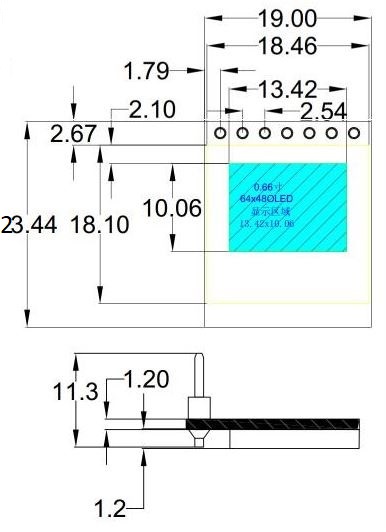

- Display area: 19.0×23.6 mm
- Resolution: 64*48
- Interface: SPI
- Size 23x19x2.5mm
- Pixel Size: 0.155*0.155mm
- Input Voltage: 3.0-5.5V
- Compatible I/O Level: 3.3V, 5V
- Operating Temperature: -40~85℃

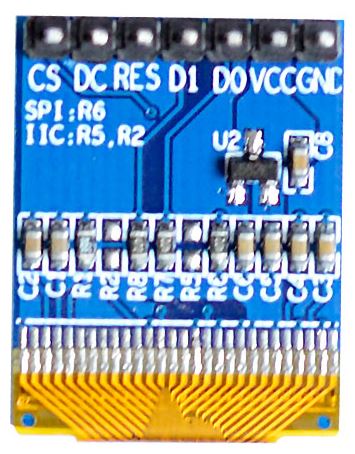

Pin Description:
- GND (Power ground)
- VCC (Power + 3.3-5V)
- D0 SPI
- D1 SPI
- RES
- DC
- SC
Package included:
1 x 0.66 Inch White or blue SPI OLED LCD
Development Resources: demo codes, schematics, datasheets, etc
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angles and display monitors.
| Weight | 0.010 kg |
|---|---|
| Dimensions | 7 × 5 × 1.5 cm |
| Colour Text | Blue, White |
Product Applications
Current Product Support
| SKU | Product | Type | Download/View |
|---|---|---|---|
| (TS-S005) (TS-S004) | 0.66 Inch Blue or White SPI OLED LCD 64×48 7pin - Oled | Datasheet | Download |
| (TS-S005) (TS-S004) | 0.66 Inch Blue or White SPI OLED LCD 64×48 7pin - SSD1306 | Datasheet | Download |
