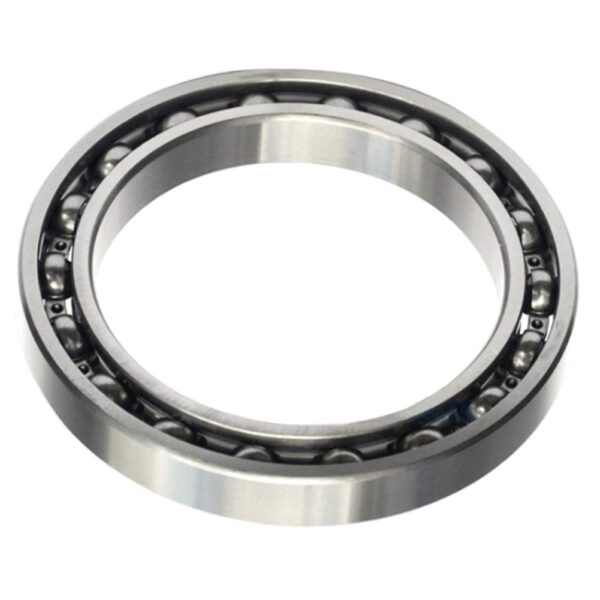

16014 Open Ball Bearing (70x110x13mm)

Name: 16014 Open Ball Bearing (70x110x13mm)
SKU: TS-P531
Availability: InStock

Sale!52%

16014 Open Ball Bearing (70x110x13mm) deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality.

2 in stock

This item: 16014 Open Ball Bearing (70x110x13mm)

2 in stock

401230 Lithium ion polymer Battery (LiPo) (3.7V 100mAh)

1 × 401230 Lithium ion polymer Battery (LiPo) (3.7V 100mAh)

89 in stock

$8.65

2 in 1 Voltmeter 5V USB Charger Step-Down Power Module

1 × 2 in 1 Voltmeter 5V USB Charger Step-Down Power Module

12 in stock

$6.95

751643 Lithium ion polymer Battery (LiPo) (3.7V 430mAh)

751643 Lithium ion polymer Battery lithium polymer

1 × 751643 Lithium ion polymer Battery (LiPo) (3.7V 430mAh)

31 in stock

$8.95

Mini MP1584en Adjustable 4.5V to 28V To 0.8V to 20V Step Down Module 3A Buck Converter

Mini MP1584en DC-DC 4.5 V to 28 V To 0.8 V to 20 V Step Down Module 3A Buck Converteradjustable-power-step-down-module-24v-to-12v-1.jpg

1 × Mini MP1584en Adjustable 4.5V to 28V To 0.8V to 20V Step Down Module 3A Buck Converter

46 in stock

$3.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $10.40
Qty Discount	10 +	8% $10.07

SKU: TS-P531

Categories:Bearing - Bushing, Power Control, Robotics, CNC, Printer Parts

Description

Additional information

Applications

Support & Utility

Q & A

This 16014 Open Ball Bearing (70x110x13mm) is particularly suitable for achieving a good load capacity and high speeds in limited space conditions. Main dimensions according to DIN 625-1.

Specifications:

Bearing Model: 16014
Also Known As: 16014-ZZ

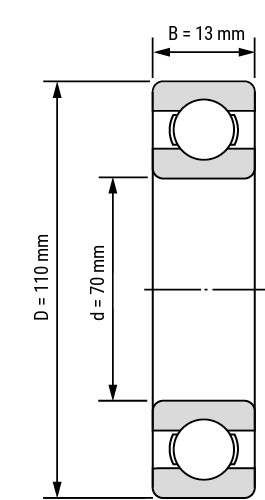

Inner Diameter (d): 70 mm
Outer Diameter (D): 110 mm
Width (B): 13 mm
Min. Chamfer (r): 0.6 mm
Dynamic Load (Cr): 26.80 kn
Static Load (Cor): 23.60 kn
Max. Speed (Grease): 6100 RPM
Max. Speed (Oil): 7100 RPM
Operating Temperature: -20°C +120°C
Series:16000
Material: GCR15 Bearing Steel
Closures: Open Seal Both Sides

Package Includes:

16014 Open Ball Bearing (70x110x13mm)

	Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc
	Hackaday serves up fresh hacks every day from around the Internet.
	Instructables is a community for people who enjoy making things. Explore, share, and do your next project with us!
	Where the world builds software
	Raspberry Pi Foundation: What would you like to make today?
	Arduino’s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
	Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:	There may be slight size deviations due to manual measurement, variations in measuring methods, and the use of different tools. The picture may not accurately reflect the actual colour of the item due to variations in photography lighting, angles, and display monitors.
