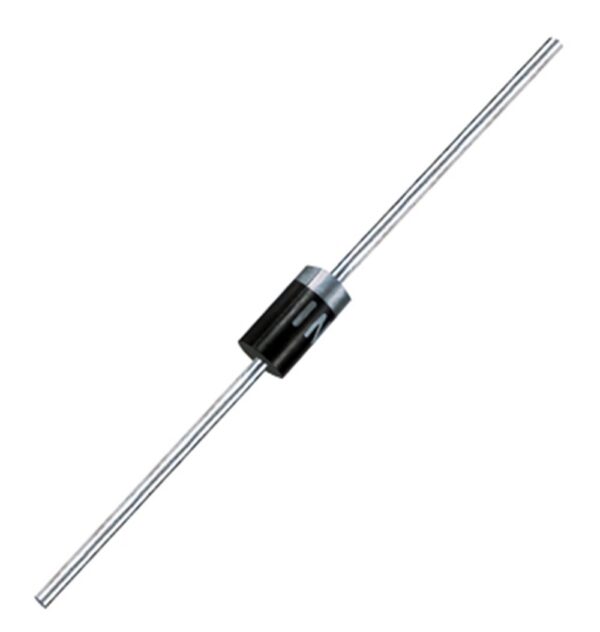

1N4004 400V 1A Standard Recovery Diode

1N4004 400V 1A Standard Recovery Diode is a 1A 2-pin General Purpose Rectifier that offers the best available combination of quality. It is optimized for energy-efficient designs and offers high reverse voltage. The 1N4004RL is a standard Recovery Rectifier with a moulded epoxy case and solderable axial leads.

Specifications:

• Voltage – DC Reverse (Vr) (Max): 400 V
• Current – Average Rectified (Io): 1A
• Voltage – Forward (Vf) (Max) @ If: 1 V @ 1 A
• Speed Standard Recovery: >500ns, > 200mA (Io)
• Current – Reverse Leakage @ Vr: 5 µA @ 400 V
• Capacitance @ Vr, F: 15pF @ 4V, 1MHz
• Mounting Type: Through Hole
• Package / Case: DO-204AL, DO-41, Axial
• Operating Temperature: -65°C ~ 150°C
• Solder dip 275 °C max. 10 s, per JESD 22-B106
• V-0 flammability rating Base P/N-E3 – RoHS-compliant, commercial-grade
• Base Product Number: 1N4004

Package includes: 1N4004 400V 1A Standard Recovery Diode 10, 25, 50 100 or 500 pack
