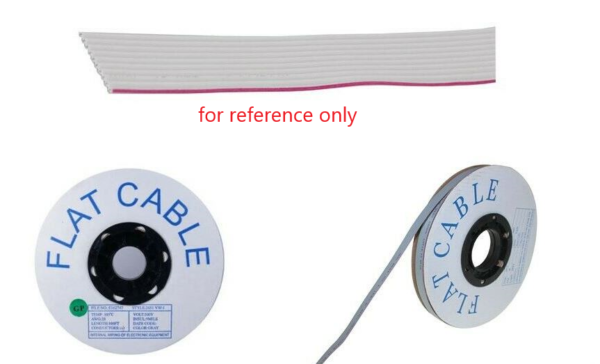

20 Wire IDC Flat Ribbon Cable Pitch 1.27mm 28 AWG 300V per 1m

Conductor

• size: 28AWG (0.89mm2)
• material: tinned copper
• construction: 7/0.127mm

Insulation

• material: Fire resistant PVC 105ºC
• Average thickness: 0.26mm
• minimum thickness: 0.18mm
• diameter: 20 x 1.29±0.15mm
• colour: grey (the edge with red trace)

Electric

• conductor resistance: max. 237Ω/km, 20ºC
• capacitance: 60pF/m (G-S-G), 42pF/m (G-S)
• inductance: 1.45µH/m
• impedance: 100±10Ω (G-S-G)
• propagation delay time 5.0ns/m
• spark test 2500V
• dielectric strength: min. 2kV in 1 minute
• rating voltage: max. 300V
• rating temperature: -20ºC to 105ºC
• Standard: UL2651/CSA C22.2 No. 210.2
• *Specifications are subject to change without notice.

Package included: 20 Wire IDC Flat Ribbon Cable Pitch 1.27mm 28 AWG 300V per 1m
