2mm 1x40Pin Male Breakable Headers

2mm 1x40Pin Male Breakable Headers are ideal for several applications and specific designs. These headers also make it easier to choose from different board mounting configurations.

Specifications:

• Contacts:1×40 Pins
• Pitch: 2mm
• Plastic Height 2mm

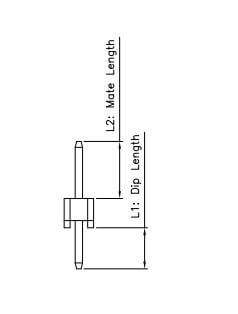

• Mate Length:3.9mm
• Dip Length:2.8mm
• Standard 0.50mm(0.0197″)square post
• Current Rating: 3A
• Insulation Resistance: 1000MΩ min. @ 500VDC
• Contact Resistance: 20mΩ max. @ 100mA DC
• Housing: PBT, UL94V-0, Black
• Contact: Brass.
• Operating Temperature: -40c +105c

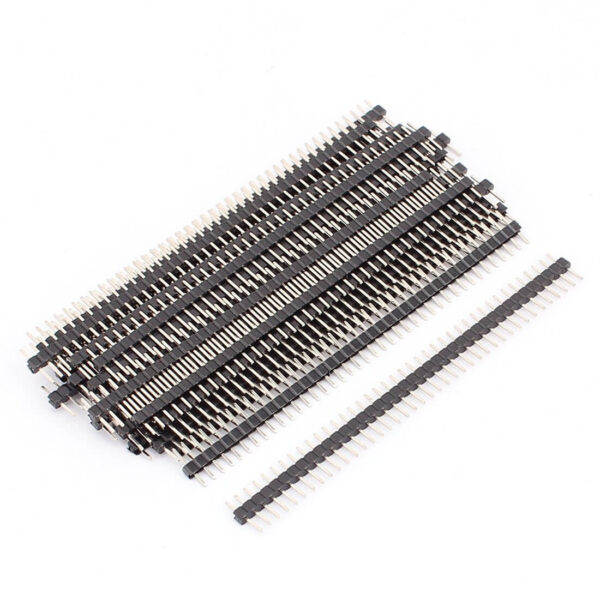

Package includes: 10 Pack – 2mm 1x40Pin Male Breakable Headers
