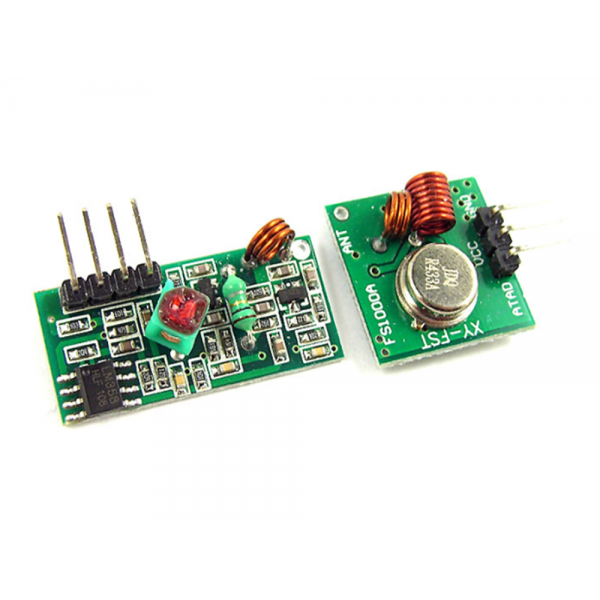

315mhz RF Wireless Transmitter And Receiver Module Kit

The 315Mhz RF Transmitter with a Receiver kit creates a wireless RF connection for a remote control switch, receiver module, or similar wireless applications/projects.
The kit consists of an XY-MK-5V 315MHz receiver and an XY-FST 315MHz transmitter.

Specifications:315mhz Wireless Receiver:

• Model: XY-MK-5V
• Operating voltage: 5VDC
• Quiescent current: 4MA
• Receiving frequency: 315 MHz
• Receiver sensitivity: -105 dB
• Dimensions: 30mm x 14mm x 7mm

Specifications:Transmitter:

• Model: XY-FST
• Transmit distance: 20 – 200 meters (varies by input power and line of sight)
• Operating voltage: 3.5VDC – 12VDC
• Transfer rate: 4KB/s
• Transmitting power: 10mW
• Transmitting frequency: 315 MHz
• Dimensions: 19mm x 19mm

Package Included: 1 x 315mhz RF Wireless Transmitter And Receiver Module Kit.
