3A 6V-28V PWM DC Motor Speed Controller

Name: 3A 6V-28V PWM DC Motor Speed Controller
SKU: TS-P1291
Availability: InStock

3A 6V-28V PWM DC Motor Speed Controller The adjustable speed range is between 1-100%, allowing for more precise increments of speed control. With LED Power On

$9.95

7 in stock

This item: 3A 6V-28V PWM DC Motor Speed Controller

7 in stock

$9.95

Servo Motor SG-5010 - 180 degrees

1 × Servo Motor SG-5010 - 180 degrees

3 in stock

$11.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $9.45
Qty Discount	10 +	8% $9.15

SKU: TS-P1291

Categories:Motor Drivers & Controllers, Motors - Servo's

Description

Additional information

Applications

Support & Utility

Q & A

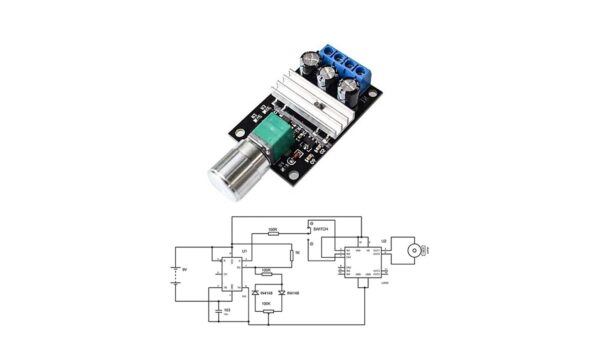

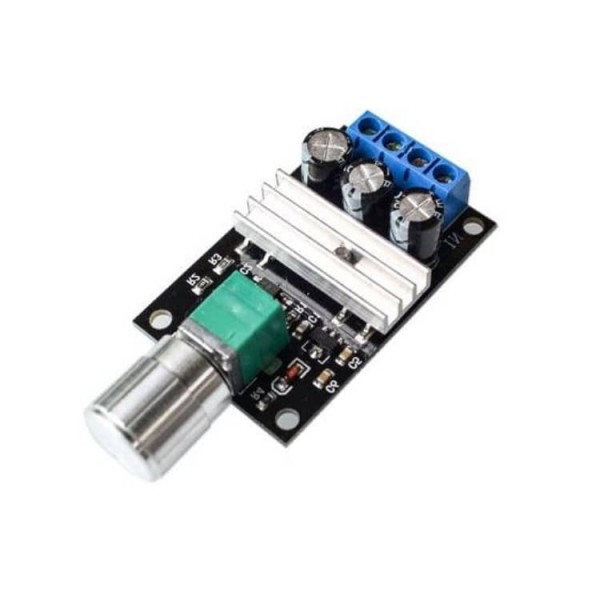

3A 6V-28V PWM DC Motor Speed Controller is a Mini Style DC Motor Speed Regulator that controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

The adjustable speed range is between 1-100%, allowing for more precise increments of speed control.

These are excellent for adjusting the brightness of LED lights or controlling the speed of DC motors.

Specifications:

Motor control ( single direction only – motors up to 3A)
LED Display
Working voltage: DC 6V-28V
Maximum Output Current: 3A
Static Current:0.02 A ( Standby )
PWM duty ratio: 1-100%
Frequency of PWM: 10khz
Size: 50mm*32mm*14mm

Package Includes:

3A 6V-28V PWM DC Motor Speed Controller
Mounting Hardware
Knob: Silver
