501010 3.7V 35mAh Lithium ion polymer Battery

Sorry Due to Postal and Shipping Regulations

501010 3.7V 35mAh Lithium ion polymer Battery – LiPo

Name: 501010 3.7V 35mAh Lithium ion polymer Battery - LiPo
SKU: TS-B124
Availability: OutOfStock

Reliable power for your devices, Bluetooth-compatible earphones, a lighting fixture with a dedicated design, and compatibility with multiple devices.Stable output of 3.7V voltages, ensuring stability and safety.

$12.95

Out of stock

Want to be notified when this product is back in stock?

Use this e-mail address to send me availability alerts and updates.

Title	Qty	Discount
Qty Discount	4 - 9	5% $12.30
Qty Discount	10 +	8% $11.91

SKU: TS-B124

Categories:- 35 mAh, 2 pin Lithium ion polymer, Lithium Ion Polymer, Power Control

Description

Additional information

Applications

Support & Utility

Q & A

The 501010 is an ultra-compact, rechargeable lithium-ion polymer battery designed for space-constrained, low-power electronic applications. Its thin pouch construction provides high energy density and flexible form-factor integration for miniature devices. They are the best go-to option for many wireless earbuds.

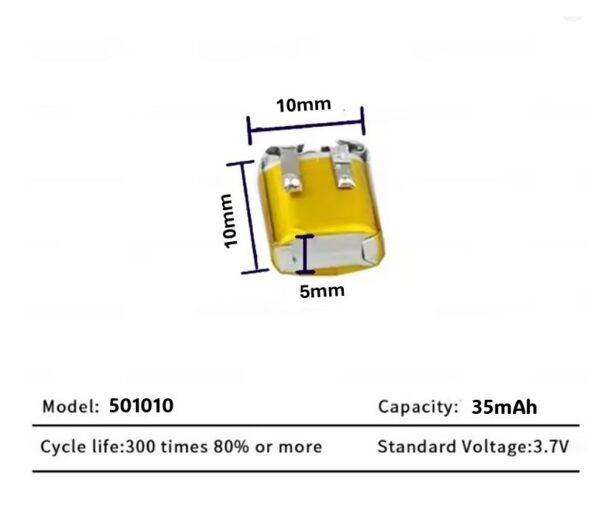

Model series Info 501010 5mm = Thickness, 10mm= Width, 10mm = length + or -5%

Lithium-ion polymer (Li-Po) batteries are thin, light, and powerful. When ultimately charged, they output 4.2V to 3.7V. This battery has a capacity of 35 mAh, for a total of about 0.1295 Wh. If you need a larger (or smaller!) battery, we have an extensive range of Lithium-ion polymer batteries.

These cells do not have BMS on Board Due to Size. BMS protection is controlled by the Headphone internal protection circuitry or by the Charging Pod, which keeps the battery voltage from rising too high (overcharging) or falling too low (overdischarging).

The BMS will cut out when completely dead at 2.75V. It will also protect against output shorts. Even with this protection, you must use only a LiPo constant-voltage/current charger to recharge them at 0.5C or less.

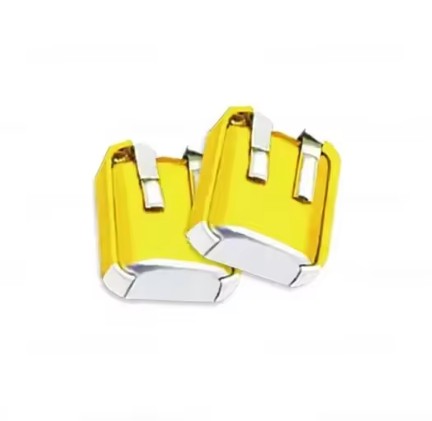

The batteries come pre-attached with 2-Tinned Flat tabs

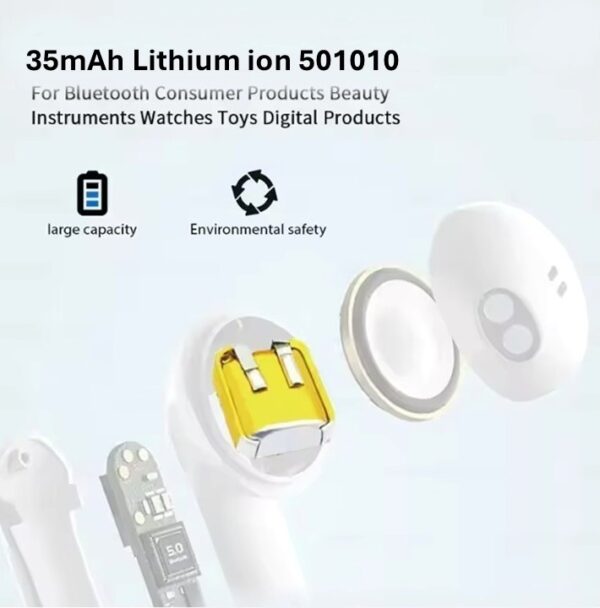

Compatable with: i7 i8 i9s i10 TWS Bluetooth Headset

Specifications:

Model: 501010
Sold as a Twin Pack
Battery Chemical Composition: Lithium-Ion
Nominal Voltage: 3.7v
Nominal Capacity: 35 mAh
Battery Watt Hour Rating (Required for Lithium Batteries): 0.1295 Wh
Max charge current: 1C
Cut-off Voltage: 2.75V +-5%
Standard Charging method: 0.5C CC (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current decline to ≤0.01C
Discharging method: Constant current 0.2C, end voltage 2.75V.± 0.05 V
Charge Current: 0.2C = 8mA
Maximum Charge Current: 0.5C = 17.5mA
Max discharge current: 1C
Maximum discharge current: 1.2A
Working current: 0.15A-1.20A
Cut-off Voltage: 2.75V± 0.05 V
Connection Type: Tabs
Dimension: Thickness x Width x Height 5*10*10 mm
Weight: 1.5 Grams
Cycle Life: 300 times 80% or More
Operating Environment: Charging: 0°C~45°C;65±20RH
Operating Environment: Discharging: 20°C~60°C;65±20RH
Storage temperature: -5℃~35℃
Charging Attention: Charging current and charging voltage should be within the specified limits.
Dangerous Road Freight: NO
Dangerous Air Freight: YES

Usage & Precaution:

Lithium-ion and lithium polymer cells are powerful batteries; you should take extreme care when using them. If exposed to abusive conditions, they may get hot, explode, or ignite and cause serious injury. Unfortunately, we can not replace batteries damaged by non-compliant chargers or equipment.
Be sure to follow the safety warnings listed below:

Do not

Overcharge: Ensure the charger voltage does not exceed the battery’s full charge voltage.
Over-discharge: Ensure the equipment you use with this battery does not draw more current from it than the stated “Maximum Continuous Discharge Current.”
Leaving batteries discharged for an extended period can incur irreversible damage
by placing the battery in fire, heating, or direct sunlight.
Install the battery backward so the polarity is reversed.
Connect the battery’s positive and negative terminals with any metal object,
expose the battery to water or saltwater, or let the battery get wet.
Disassemble or modify the battery. The battery contains safety and protection devices.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for damage, loose wiring, or the possibility of short circuits. As with all Lithium-ion polymer batteries and any power source, they should be used by experts who are comfortable working with power supplies.

Note: Please check your current cable orientation, as there is no Industry Standard for Cable setup. Wrong orientation can damage the cell and your item.

Package Includes:

501010 3.7V 35mAh Lithium ion polymer Battery – LiPo (twin pack)
