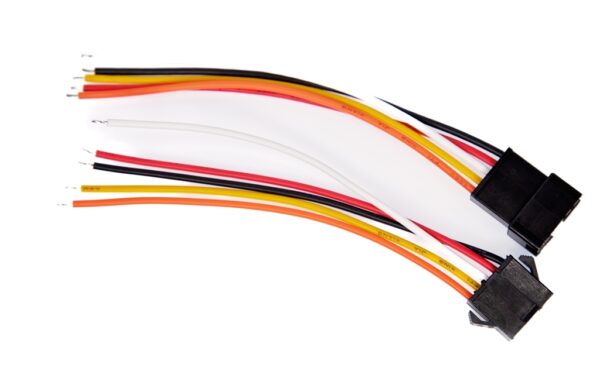

5-pin JST-SM locking pigtail connector set

5 PIN Male Female JST SM Locking Pigtail

Name: 5 PIN Male Female JST SM Locking Pigtail
SKU: TS-L231
Availability: InStock

5-pin JST-SM locking pigtail connector set. Ideal for quick-disconnect applications requiring a durable, Polarised connector pair that guarantees correct orientation every time.

$3.55

6 in stock

This item: 5 PIN Male Female JST SM Locking Pigtail

6 in stock

$3.55

1.5m 3.5mm Stereo Plug To 3.5mm Stereo Plug Lead

1 × 1.5m 3.5mm Stereo Plug To 3.5mm Stereo Plug Lead

5 in stock

$5.95

USB 2.0 200cm Hi-Speed Cable

1 × USB 2.0 200cm Hi-Speed Cable

19 in stock

$8.35

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.37
Qty Discount	10 +	8% $3.27

SKU: TS-L231

Categories:Cable assemblies, JST Cable Assemblies, JST-SM

Description

Additional information

Applications

Support & Utility

Q & A

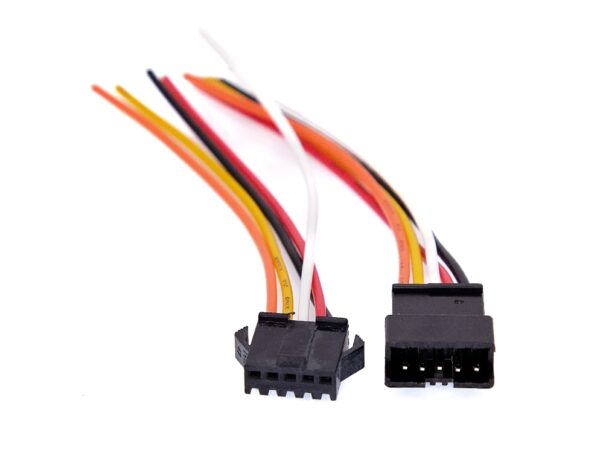

The 5-pin JST-SM locking pigtail Connector set includes one male and one female plug pre-wired with leads. It features a secure Snap-lock design, Preventing accidental disconnection in vibration-prone environments. Commonly used for LED strips, RGB Lighting, model wiring, drones, and small electronic projects

Specifications:

JST-SM: 5 Pin
Rated Current: 3A per pin
Chassis/signal wiring (short runs, open air): ~7 A max
Wire Type: 22AWG
Type: AWM 1007
Pitch: 2.54mm±0.05
Working Temperature:-20℃~+80℃
Keep in mind that the actual safe current depends on Insulation type, ambient temperature, cable bundling, Installation method, and voltage drop.

Package Includes:

5-pin JST-SM locking pigtail connector set
