902042 (3.7V 500mAh) High Discharge Polymer Lithium Ion

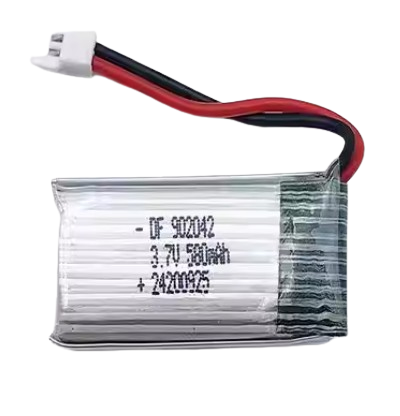

Name: 902042 (3.7V 500mAh) High Discharge Polymer Lithium Ion
SKU: TS-B126
Availability: OutOfStock

The batteries come Pre-attached with a Molex 51005 Connector with a 10cm cable, as shown, and include the necessary protection circuitry.

$10.95

Out of stock

Want to be notified when this product is back in stock?

Use this e-mail address to send me availability alerts and updates.

Title	Qty	Discount
Qty Discount	4 - 9	5% $10.40
Qty Discount	10 +	8% $10.07

SKU: TS-B126

Categories:-500 mAh, Lithium Ion Polymer High Discharge 25C, Power Control

Description

Additional information

Reviews (0)

Applications

Support & Utility

Q & A

LiPo Battery 902042 (3.7V 500mAh) High Discharge Polymer Lithium Ion. These Cells are designed with 25C discharge. This makes them appropriate for R.C. cars, planes, drones, helicopters, quadcopters, etc.

High-Discharge Batteries are designed to supply a continuous discharge rate of 25C for a brief time; this is why they are great for RC cars, planes, and drones, whereas Normal Lipo supplies current over days to months at 1C or less.

Model series Info 902042 9.6 = Thickness, 19.1= Width, 45.1 = length + or -3%

Lithium-ion polymer (also known as ‘lipo’) batteries are thin, light and powerful. The output ranges from 4.2V when ultimately charged to 3.7V. This battery has a capacity of 500 mAh, which is about 1.85 Wh. If you need a larger (or smaller!) battery, we have an extensive range of Lithium-ion polymer batteries.

Protection circuitry keeps the battery voltage from going too high (over-charging) or too low (over-discharging), so the battery will cut out when completely dead at 2.75V. It will also protect against output shorts. Even with this protection, it is essential that you use only a LiPo constant-voltage/current charger to recharge them at 0.5C or 1C.

Tempero Systems recommends charging at 0.5 °C or lower to extend lifespan.

High Discharge Battery comes pre-attached with a Molex 51005 2-pin connector with 2.0mm spacing and includes the necessary protection circuitry.

Note: Please check your current cable orientation, as there is no Industry Standard for Cable setup. Wrong orientation can damage the cell and your item.

If it does not match, it is easy to alternate the connector orientation. Just use a Plastic Pry Tool or similar to press down on the small latch securing each crimp socket in the housing and swap them. Ensure they do NOT touch each other!

Compatible Model: Syma X5C Skytech M68 TK107 Hengqi905 Cheerson CX-30 86

Specifications:

Model: 902042
Battery Chemical Composition: Lithium-Ion
Nominal Voltage: 3.7v
Nominal Capacity: 500 mAh
Battery Watt-Hour Rating (Required for Lithium Batteries): 1.85 Wh
High Discharge rate: 25C
Cut-off Voltage: 2.75v +-5%
Standard Charging method: 0.5C CC (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current decline to ≤0.01C
Discharging method: Constant current 0.2 C end voltage 2.75V.
Maximum Charge Current: 0.5C to 1C (0.5C) is recommended for longer Life
Charging time: 1 Hour @ 0.5C
C.V.: ≥3.85V
Connection Type: Molex 51005
Cable: 10cm
Dimension: Thickness x Width x Height 9.6*19.1*45.1 mm
Weight: 14.5 Grams
Cycle Life: Over 500 times
Operating Environment: Charging: 0°C~45°C;65±20RH
Operating Environment: Discharging: 10°C~60°C;65±20RH
Storage temperature: -5℃~35℃
Charging Attention: Charging current and charging voltage should be within the specified limits.
Dangerous Road Freight: NO
Dangerous Air Freight: YES

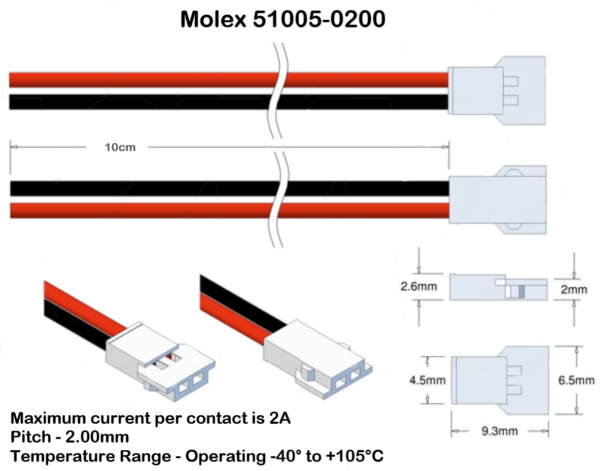

Specifications: Molex 51005-0200

Maximum current per contact is 2A
Pitch – Mating Interface 2.00mm
Natural colour
Temperature Range – Operating -40° to +105°C
UL94V-0 flammability rating

Usage & Precaution:

Lithium-ion and lithium-polymer cells are effective batteries, but YOU must take extreme care with them. Using them may get hot, explode or ignite and cause serious injury if exposed to abusive conditions. Unfortunately, we can not replace batteries damaged by non-compliant chargers or equipment.
Be sure to follow the safety warnings listed below:

Do not

Overcharge: Ensure the charger voltage does not exceed the battery series full charge voltage.
Over-discharge: Ensure the equipment you use with this battery does not draw more current than the stated “Maximum Continuous Discharge Current.”
Leaving batteries discharged for an extended period can incur irreversible damage
by placing the battery in fire, heating, or direct sunlight.
Install the battery backwards so the polarity is reversed.
Connect the battery positive and negative terminals with any metal object,
expose the battery to water or saltwater, or let the battery get wet.
Disassemble or modify the battery. The battery contains safety and protection devices.

Additional safety notes: Do not use a NiMH/NiCad/lead-acid charger! Also, never charge or use unattended. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits. As with all Lithium-ion polymer batteries and any power source, they should be used by experts who are comfortable working with power supplies.

Package Includes:
