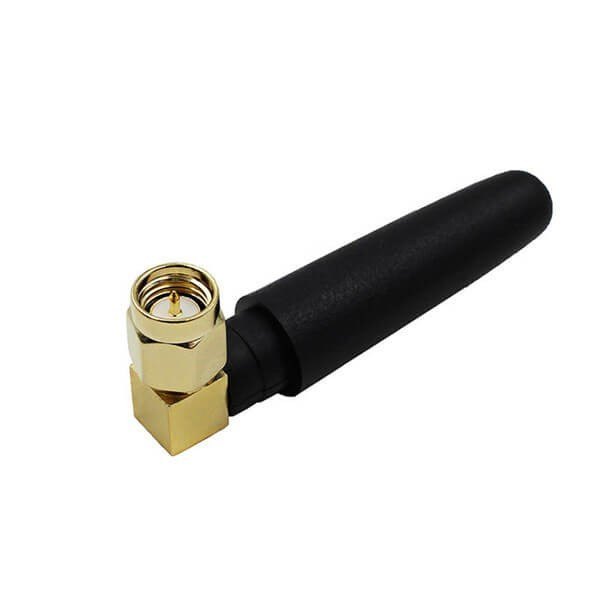

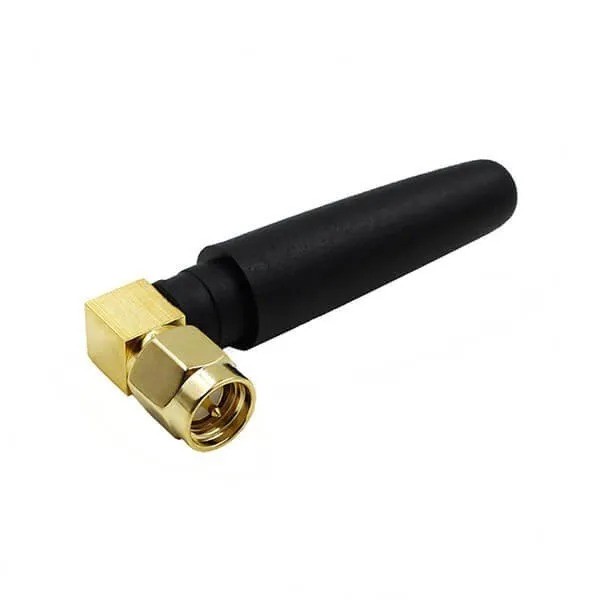

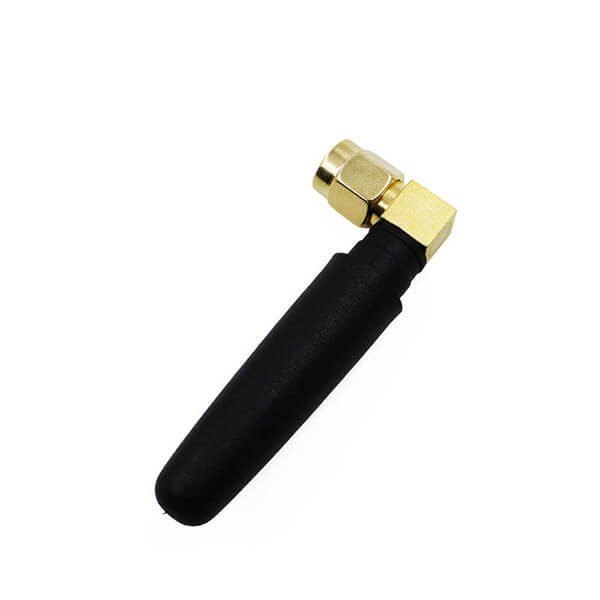

915MHz 2.5dbi 5Cm Right Angle Antenna IPEX - SMA Male LoRa Meshtastic

SMA Female: connector with centre receptacle pin

915MHz 2.5dbi 5Cm Right Angle Antenna IPEX – SMA Male LoRa Meshtastic

Name: 915MHz 2.5dbi 5Cm Right Angle Antenna IPEX - SMA Male LoRa Meshtastic
SKU: 51823
Availability: InStock

This Meshtastic LoRa antenna can be a valuable addition to your LoRa system. It has a gain of 3dBi, a length of 200mm, and a frequency of 902-923MHz.

915MHz 2.5dbi 5Cm Right Angle Antenna IPEX - SMA Male LoRa Meshtastic

This item: 915MHz 2.5dbi 5Cm Right Angle Antenna IPEX - SMA Male LoRa Meshtastic

NRF905 PTR8000 Wireless Module Transmission 433/486/915MHz

1 × NRF905 PTR8000 Wireless Module Transmission 433/486/915MHz

8 in stock

$10.95

NRF24L01 2.4GHz Wireless Transceiver Module

1 × NRF24L01 2.4GHz Wireless Transceiver Module

2 in stock

$4.95

CH340 USB to ESP8266 ESP-01 Wifi Module Adapter

1 × CH340 USB to ESP8266 ESP-01 Wifi Module Adapter

11 in stock

$6.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: N/A

Categories:915 MHz, Antenna, Wireless Communication

Description

Additional information

Applications

Support & Utility

Q & A

915MHz 2.5dbi 5Cm Right Angle Antenna IPEX – SMA Male LoRa Meshtastic Frequency Range: 824-960/1710-1990MHz. This Antenna is perfect for Meshtastic LoRa/LoRaWAN devices with an uFL/IPEX connector.

The Antenna has an SMA Male connector with a 50 mm length and an I-PEX Connector to make connecting to your Meshtastic LoRA device easy.

Specifications:

Radiation Direction: Omnidirectional
Band 915MHz
Frequency Range: 824-960/1710-1990
Gain: 2.5dbi
VSWR: ≤1.5
Mount Type: Right Angle
Input Impedance: 50Ω
Connector Type: SMA Male
Power: 50W
Cable
Frequency Range: 0mHz-6GHz
Maximum Power: 20 watts
Impedance: 50 ohm
SMA Connector: 6mm x 11mm
Connector Type: IPEX-1 to RP SMA Female (Matched to Antenna Connector)
Hardware: Nut, Helical Spring washer, internal Tooth Washer

Package Includes:

915MHz 2.5dbi 5Cm Right Angle Antenna IPEX – SMA Male LoRa Meshtastic and with or without Cable
