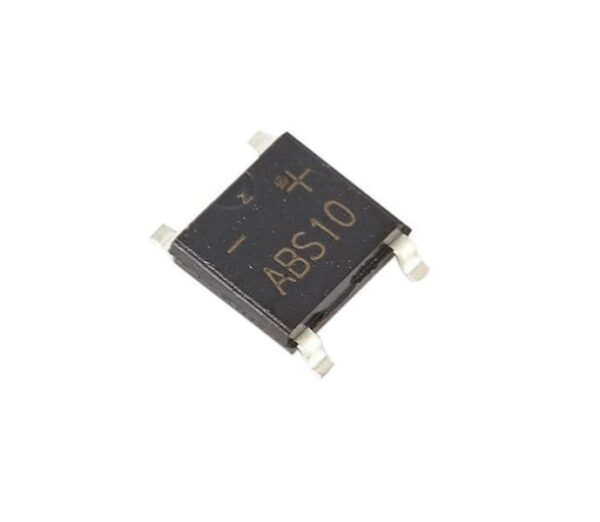

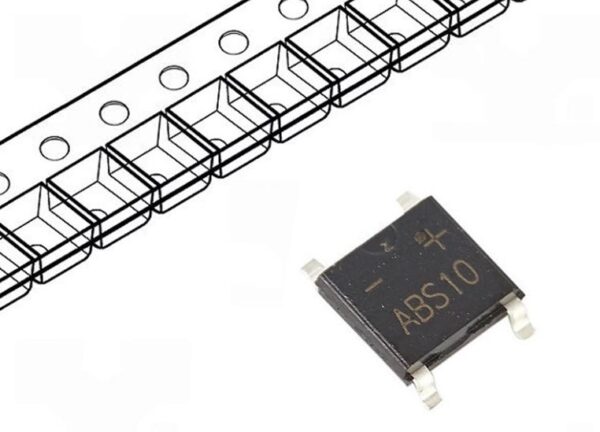

ABS10 1A1000V SOP4 SMD Bridge Rectifier

Name: ABS10 1A1000V SOP4 SMD Bridge Rectifier
SKU: 52296
Availability: InStock

A diode bridge is an arrangement of four (or more) diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input

This item: ABS10 1A1000V SOP4 SMD Bridge Rectifier

BZX55C5V1 5.1V 500mW Zener Diode

1 × BZX55C5V1 5.1V 500mW Zener Diode

100 in stock

$0.30

BZX55C3V3 3.3V 500mW Zener Diode

1 × BZX55C3V3 3.3V 500mW Zener Diode

100 in stock

$0.30

BAT85S-TAP Small Signal Schottky Diode, 30 V, 200 mA, 800 mV, 5 A, 125 °C

BAT48 Small Signal Schottky Diode, 40 V, 350 mA, 400 mV, 7.5 A, 125 °C

1 × BAT85S-TAP Small Signal Schottky Diode, 30 V, 200 mA, 800 mV, 5 A, 125 °C

68 in stock

$1.95

Diode Kit 100Pcs 8 Common Values

1 × Diode Kit 100Pcs 8 Common Values

12 in stock

$7.25

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.80
Qty Discount	10 +	8% $2.71

SKU: N/A

Categories:Bridge Rectifiers, Diodes

Description

Additional information

Applications

Support & Utility

Q & A

The ABS10 is a compact surface-mount bridge Rectifier designed for converting alternating current (AC) to direct current (DC) in low- to medium-power electronic Circuits. Packaged in a SOP-4 form factor, it offers space efficiency and reliable performance for Surface-mount assembly lines.

Specifications:

Maximum Repetitive Peak Reverse Voltage (V_RRM): 1000V
Average Forward Current (I_O): 1A
Peak Forward Surge Current (I_FSM): 30A (8.3ms single half-sine wave)
Forward Voltage Drop (V_F): Approx. 1.1V @ 1A
Reverse Current (I_R): < 5µA @ 25°C
Operating Temperature Range: -55°C to +150°C
Package Type: SOP-4 (Surface Mount)

Package Includes:

ABS10 1A1000V SOP4 SMD Bridge Rectifier
