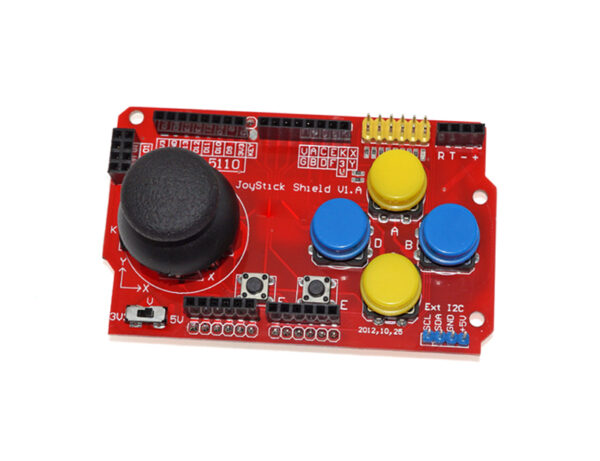

Arduino Gamepad Joystick Shield V1
It works with voltages of 3.3 V and 5 V to choose by the switch for Arduino. It has a built-in I2C connector, Bluetooth, nRF24L01 and a slot of the Nokia 5110 display.
$9.95
5 in stock
This item: Arduino Gamepad Joystick Shield V1
5 in stock
$9.95
$9.95
Description
Additional information
Applications
Support & Utility
Q & A
Description:

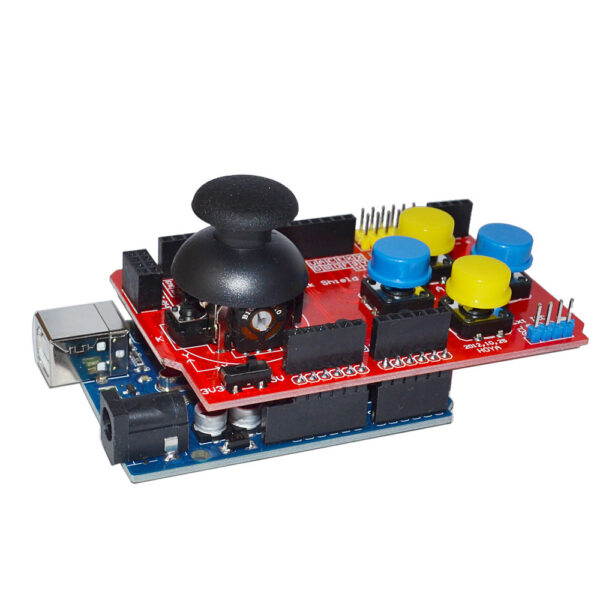

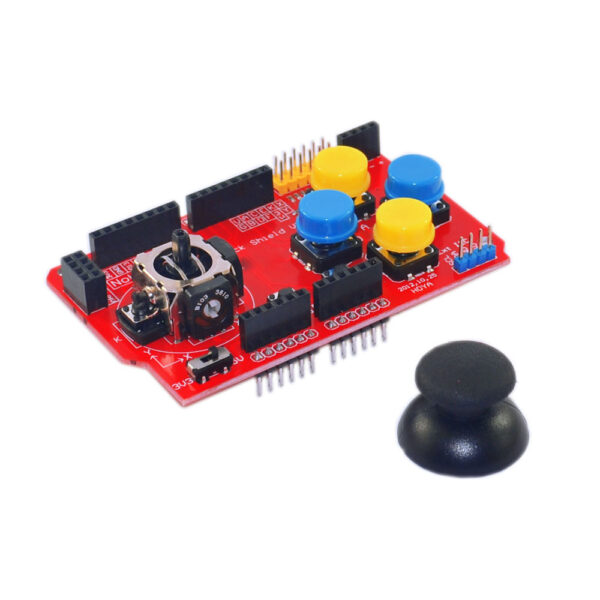

Arduino Gamepad Joystick Shield V1 contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Seven momentary push buttons (6+ joystick select button) and a two-axis thumb joystick give your Arduino functionality on the level of old Nintendo controllers.
Features
- Supports both 3.3v and 5.0V Arduino platforms. A slide switch lets the user select voltage system
- 7-Momentary Pushbuttons (6+ joystick select button)
- Two-Axis Joystick
- Additional Ports / Headers for Nokia 5110 LCD, NRF24L01 Communication module, and Bluetooth Module Header
- Additional I2C Header for further expansion
Technical Specifications
- Output Voltage: 3.3 or 5.0V (Use Voltage Selector Switch)
- No of Push Buttons: 7
- No of Analog Axis: 2
- vibration Motor: No
- Communication Port: NRF24L01 and Bluetooth (HC-05, HC-06)
- I2C Header: Yes
- LCD Header: Yes (Nokia 5110)
Joystick Connections
| Joystick Connections | Description | Type | Arduino Pins |
| A | Momentary Button A | Digital | D2 |
| B | Momentary Button B | Digital | D3 |
| C | Momentary Button C | Digital | D4 |
| D | Momentary Button D | Digital | D5 |
| E | Momentary Button E | Digital | D6 |
| F | Momentary Button F | Digital | D7 |
| K | Joysticks Momentary Button K | Digital | D8 |
| X | Joystick X-Axis | Analog | A0 |
| Y | Joystick Y-Axis | Analog | A1 |
Nokia LCD Connections
| Nokia LCD | Description | Type | Arduino Pins |
| SCLK | Serial Clock | Digital | D9 |
| CSN | Chip Select (Active Low) | Digital | D10 |
| D/C | Data / Command | Digital | D11 |
| RST | RESET | Digital | D12 |
| SCE | Chip Enable (Active Low) | Digital | D13 |
NRF24L01 Connections
| NRF24L01 Connections | Description | Type | Arduino Pins |
| SCE | Chip Enable (RX TX Mode Select) | Digital | D9 |
| CSN | Chip Select (Active Low) | Digital | D10 |
| SCK | Serial Clock | Digital | D11 |
| MOSI | Master Out Slave In | Digital | D12 |
| MISO | Master In Slave Out | Digital | D13 |
Development Resources: demo, codes, schematics, datasheets, etc
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angle and display monitor.
Other Related Products
| Weight | 0.038 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
Product Applications
Current Product Support
| SKU | Product | Type | Download/View |
|---|---|---|---|
| OKY2212 | Arduino Gamepad Joystick Shield V1 - Arduino Gamepad Joystick Shield V1 | Datasheet | Download |
