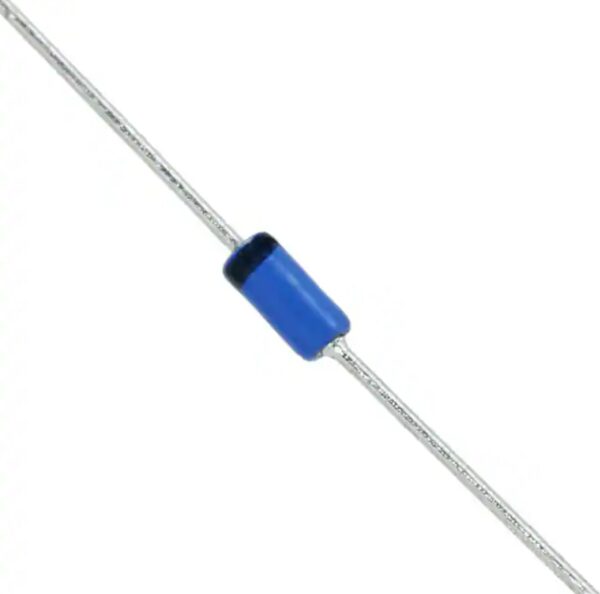

BAT42 Small Signal Schottky Diode, 30V, 200 mA, 650 mV, 4A, 125 °C

BAT42 Signal Schottky Diode 20 pack

Name: BAT42 Signal Schottky Diode 20 pack
SKU: TS-C410-1
Availability: InStock

BAT42 are small signal Schottky diodes. They are metal-to-silicon diodes within a DO-35 package. They feature integrated excessive voltage protection, for example, against electrostatic discharge.

$4.95

18 in stock

This item: BAT42 Signal Schottky Diode 20 pack

18 in stock

$4.95

0.5W Zener Diode 300pcs Pack

1 × 0.5W Zener Diode 300pcs Pack

15 in stock

$9.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $4.70
Qty Discount	10 +	8% $4.55

SKU: TS-C410-1

Categories:Diodes, Schottky Diodes

Description

Additional information

Applications

Support & Utility

Q & A

BAT42 Small Signal Schottky Diode 20 pack 30V, 200 mA, 650 mV, 4A, 125 °C is a general-purpose metal-to-silicon small-signal Schottky Diode featuring very low turn-on voltage fast switching. This device has integrated protection against excessive voltage, such as electrostatic discharge.

What are they used for?
The BATxx are designed for general-purpose applications. They feature integrated excessive voltage protection, for example, against electrostatic discharge.

Specifications:

Pack Qty: 20
Diode Configuration: Single
Repetitive Reverse Voltage Vrrm Max: 30V
Forward Current If(AV): 200 mA
Forward Voltage VF Max: 650mV
Forward Surge Current Ifsm Max: 4A
Reverse Recovery Time: 5ns
Operating Temperature Max: 125°C

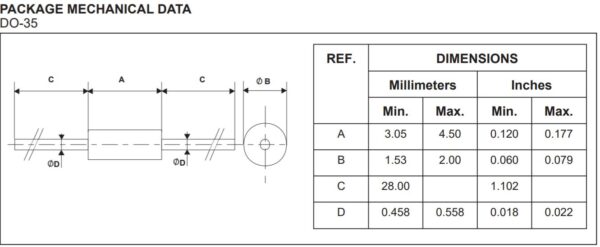

Diode Case Style: DO-35
No. of Pins: 2Pins
Diameter: 1.7mm
Lead-Free Finish, RoHS Compliant

Package Includes:

BAT42 Signal Schottky Diode 20-pack
