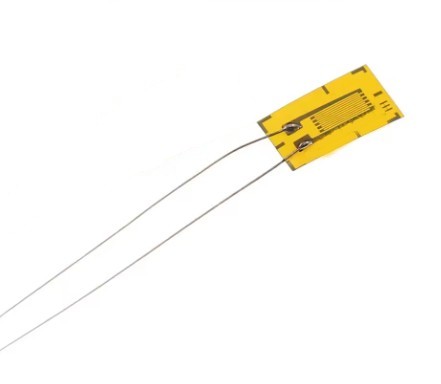

BF120-3AA Pressure Resistance Strain Gauge Sensor

Name: BF120-3AA Pressure Resistance Strain Gauge Sensor
SKU: 56629
Availability: InStock

Strain gauges are widely used in mechanical engineering research and development to measure strain in objects under load. A strain gauge works on the principle that its electrical resistance changes when it is deformed.

This item: BF120-3AA Pressure Resistance Strain Gauge Sensor

LJ12A3-4-Z/BY PNP Inductive Proximity Sensor Switch DC 6V-36V

1 × LJ12A3-4-Z/BY PNP Inductive Proximity Sensor Switch DC 6V-36V

12 in stock

$9.15

ML8511 Ultraviolet light Detection Module

1 × ~~ML8511 Ultraviolet light Detection Module~~

Out of stock

$10.95

GY-53 VL53L0X Laser ToF Flying Time Ranging

1 × GY-53 VL53L0X Laser ToF Flying Time Ranging

2 in stock

$15.95

HC-SR04 Ultrasonic Distance Measuring Sensor Module

1 × HC-SR04 Ultrasonic Distance Measuring Sensor Module

44 in stock

$3.99

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: N/A

Categories:Interactive Sensors, Sensors, Weight & Pressure

Description

Additional information

Applications

Support & Utility

Q & A

The BF120-3AA Pressure Resistance Strain Gauge Sensor is a type of strain gauge used to measure strain (deformation) in materials. Strain gauges are widely used in mechanical engineering research and development to measure strain in objects under load.

Specifications:

The key technical indexes: BF series
Model: BF120-3AA
3AA = linear grid ≈ 3 mm
Wire/Cable: 3cm±5%
Strain limit: 2.0%
Fatigue life：≥1M
Resistance: 120 ohms ≤±2%
Contrast: 800: 1 (Min) (transmission)
Sensitivity coefficient: ~2.0 ± ~0.5%
Using temperature range: -30~+80
Tolerance of average resistance: ≤±0.1%
Sensitive coefficient dispersion：≤±1%
Size: 7.5mm(length) x 2.8mm(width)≤±2%
Note: Substrate colour can change

Package Includes:

BF120-3AA Pressure Resistance Strain Gauge Sensor
