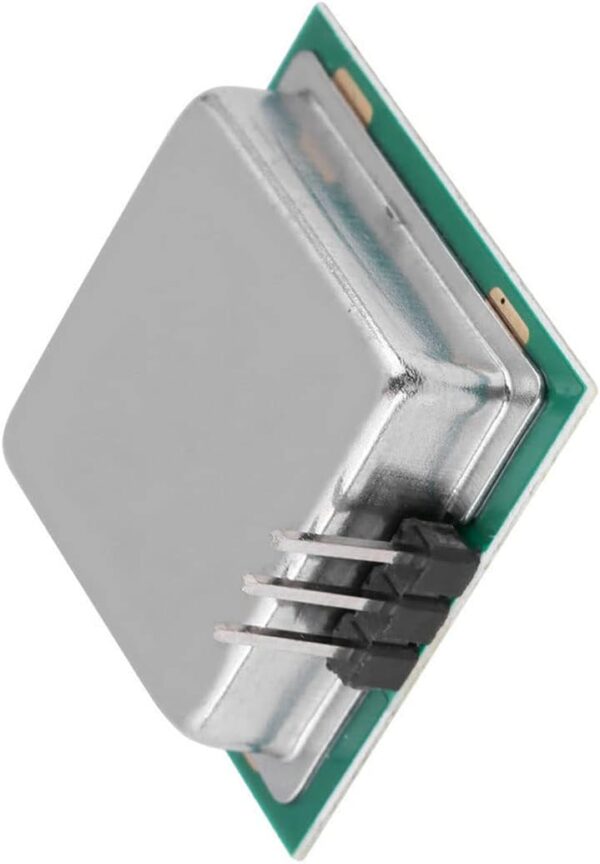

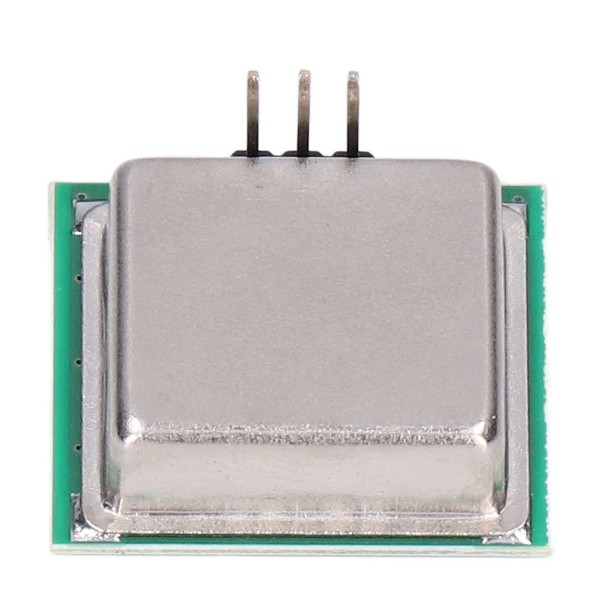

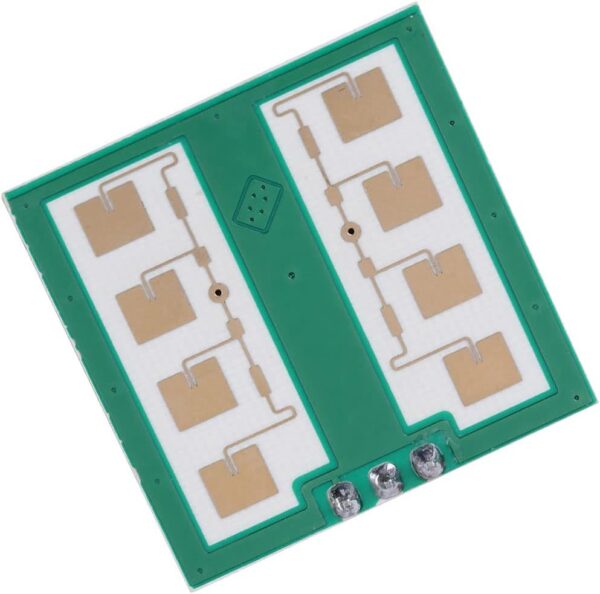

Name: CDM324 24GHz Microwave Human Body Motion Sensor Module
SKU: TS-P1480
Availability: InStock

Is there Anybody out there? Compact, low-power, immune to light and temperature, ideal for security and automation projects worldwide applications.

$10.95

4 in stock

This item: CDM324 24GHz Microwave Human Body Motion Sensor Module

4 in stock

$10.95

LJ12A3-4-Z/AY Proximity Sensor Switch

1 × LJ12A3-4-Z/AY Proximity Sensor Switch

9 in stock

$7.95

GY-45 MMA8452 Module

1 × GY-45 MMA8452 Module

9 in stock

$10.95

GY-30 BH1750FVI Digital Light Sensor

1 × GY-30 BH1750FVI Digital Light Sensor

8 in stock

$6.95

WEMOS D1 Mini Buzzer Shield

WEMOS D1 Mini compatible ESP8266 Active Buzzer Shield

1 × WEMOS D1 Mini Buzzer Shield

3 in stock

$4.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $10.40
Qty Discount	10 +	8% $10.07

SKU: TS-P1480

Categories:Interactive Sensors, Microwave Radar, Sensors

Description

Additional information

Applications

Support & Utility

Q & A

CDM324 24GHz microwave motion sensor module detects human movement up to 15m using Doppler radar. Compact, low-power, immune to light and temperature, ideal for security and automation projects worldwide applications.

Features:

Transmitting Frequency: min:24GHz typ:24.125GHz max:24.25GHz
Output Power:16dbm (tpy)
Operating Temperature:-20–60℃
Operating Current: tpy:30MA, max:40MA
Operating Voltage: tpy:5.5V
Pulse Width: tpy:10US
IF Output:-300–300MV
Size:25*25*7mm(L*W*H)

Package Includes:

CDM324 24GHz Microwave Human Body Motion Sensor Module
