CJMCU 12-Bit WS2812 RGB LED 50mm Ring

Name: CJMCU 12-Bit WS2812 RGB LED 50mm Ring
SKU: TS-P1382
Availability: InStock

Sale!14%

12-Bit WS2812 RGB LED 50mm Ring Controlled by a microcontroller (Arduino, ESP32, Raspberry Pi, etc.) using libraries like Adafruit NeoPixel or FastLED.

2 in stock

This item: CJMCU 12-Bit WS2812 RGB LED 50mm Ring

2 in stock

Full Color LED Module SCM Light Water 5050 LED

1 × Full Color LED Module SCM Light Water 5050 LED

4 in stock

$5.95

CJMCU-16 4x4 RGB LEDs WS2812 RGB LED full colour drive

1 × CJMCU-16 4x4 RGB LEDs WS2812 RGB LED full colour drive

12 in stock

CJMCU 21-Bit WS2812 RGB LED 50mm 3 Ring

1 × CJMCU 21-Bit WS2812 RGB LED 50mm 3 Ring

2 in stock

$12.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-P1382

Categories:LED - diodes, displays, modules, LED modules

Description

Additional information

Applications

Support & Utility

Q & A

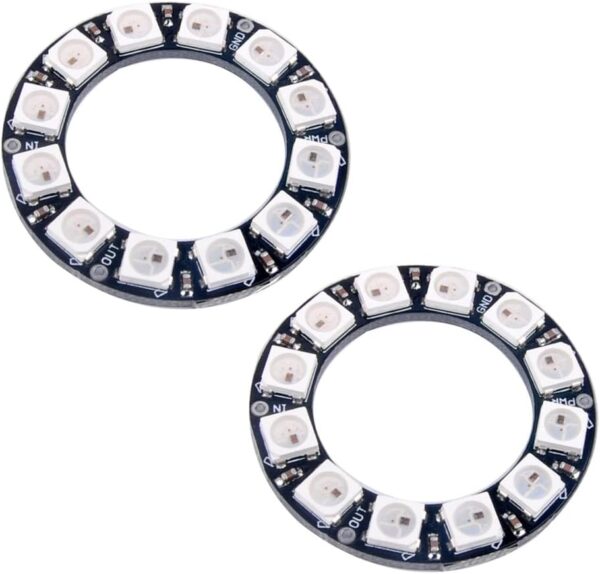

The 12-Bit WS2812 RGB LED 50mm Ring is a small circular LED module built with 12 addressable RGB LEDs arranged in a ring shape, using the popular WS2812 (a.k.a. NeoPixel) driver chips.

Specifications:

LEDs: 12 × WS2812 (RGB, addressable).
Outer Diameter: ~50mm.
Inner Diameter: ~35
Operating Voltage: 5V DC.
Data Protocol: Single-wire, serial (800 kHz).
Power Consumption: ~60mA per LED at full white brightness (so max ~720mA for all 12).
Chainable: The Data out pin allows you to connect multiple rings/strips in series.
Viewing Angle: ~120°.

Package Includes:

1x CJMCU 12-Bit WS2812 RGB LED 50mm Ring
