CJMCU-64 8x8 RGB LEDs WS2812 RGB Full-Color Driving Lights

CJMCU-64 8×8 RGB LEDs WS2812 RGB Full-Color Driving Lights

Name: CJMCU-64 8x8 RGB LEDs WS2812 RGB Full-Color Driving Lights
SKU: TS-P540
Availability: InStock

CJMCU-64 is an 8×8 RGB LED matrix module Featuring WS2812 individually addressable LEDs. Widely used for LED decorative lighting, Indoor/outdoor LED video irregular screen.

$12.95

5 in stock

CJMCU-64 8x8 RGB LEDs WS2812 RGB Full-Color Driving Lights

This item: CJMCU-64 8x8 RGB LEDs WS2812 RGB Full-Color Driving Lights

5 in stock

$12.95

LED Lighting push button Module

1 × LED Lighting push button Module

2 in stock

$2.95

CJMCU-16 4x4 RGB LEDs WS2812 RGB LED full colour drive

1 × CJMCU-16 4x4 RGB LEDs WS2812 RGB LED full colour drive

12 in stock

Title	Qty	Discount
Qty Discount	4 - 9	5% $12.30
Qty Discount	10 +	8% $11.91

SKU: TS-P540

Categories:LED - diodes, displays, modules, LED modules

Description

Additional information

Applications

Support & Utility

Q & A

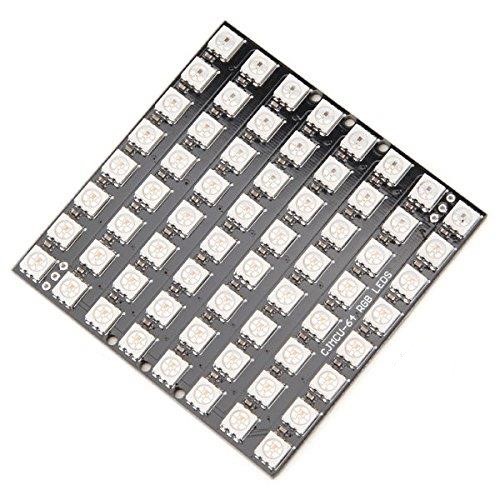

The CJMCU-64 is a compact 64-pixel RGB LED matrix using WS2812 intelligent control LEDs, arranged in an 8×8 grid. Each LED contains a built-in controller, allowing full-colour, individually addressable lighting via a single digital data line.

It’s ideal for dynamic lighting displays, status Indicators, DIY pixel art, and Arduino or Raspberry Pi projects.

Specifications:

LED Type: WS2812B (integrated driver IC)
Matrix Size: 8×8 (64 LEDs)
Control Interface: Single-wire Digital (supports daisy chaining)
Colour Depth: 24-bit RGB (8 bits per colour)
Operating Voltage: 5V DC
Power Consumption: ~18W max (when all LEDs are full brightness white)
PCB Size: Approx. 65mm x 65mm
Control Library: Compatible with Adafruit NeoPixel / FastLED libraries
Usage Tips
Requires a microcontroller (Arduino, ESP32, Raspberry Pi, etc.)
Ensure a sufficient power supply (~3.5–4A at 5V for full brightness)
Use a 1000 µF capacitor across power lines and a 300–500 Ω resistor on the data line to prevent damage.
Chain multiple boards via DIN/DOUT for extended displays

Package Includes:

CJMCU-64 8×8 RGB LEDs WS2812
