ESP32-C3 Super Mini Development Board

Key Features:

• Microcontroller:
  • ESP32-C3: RISC-V 32-bit single-core processor up to 160 MHz.
  • 400 KB SRAM and 4 MB Flash (varies by model).
  • Low power consumption with deep sleep and light sleep modes.
• Connectivity:
  • Wi-Fi 802.11 b/g/n (2.4 GHz) with WPA3 support.
  • Bluetooth 5 with Long Range and Mesh networking capabilities.
• Compact Design:
  • Super mini form factor for space-constrained applications.
  • SMD mountable versions are available for industrial use.
• GPIO and Interfaces:
  • Multiple GPIO pins with support for PWM, ADC, I2C, SPI, UART, and other peripherals.
  • Programmable pins for flexible hardware design.
• Development Environment:
  • Compatible with Espressif’s ESP-IDF, Arduino IDE, PlatformIO, and other common development platforms.
  • Easy-to-use USB-C or micro-USB port for power and programming.
• Additional Features:
  • Integrated debugging (JTAG support).
  • Onboard LEDs for status indication.
  • Wide operating voltage (often 3.3V to 5V input).

Specifications:

• Processor: ESP32-C3 32-bit RISC-V single-core, up to 160 MHz
• WiFi: 802.11b/g/n, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station mode
• Bluetooth: Bluetooth 5.0
• Memory: 400KB SRAM, 384KB ROM, 4MB flash
• Power Consumption: Deep sleep ~43 μA
• Size: 22.52x18mm
• Security: AES-128/256, hashing, RSA, HMAC, digital signature, secure boot

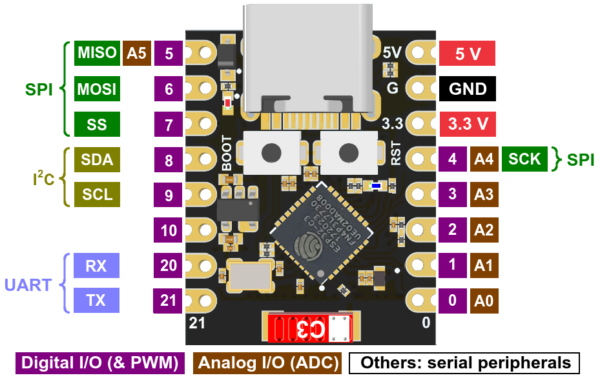

• Interfaces: 1x I2C, 1x SPI, 2x UART, 11x GPIO (PWM), 4x ADC
• LED: On-board blue LED (GPIO8 pin)

Package Includes:

• ESP32-C3 Development Board Super Mini WiFi Bluetooth for Arduino Projects

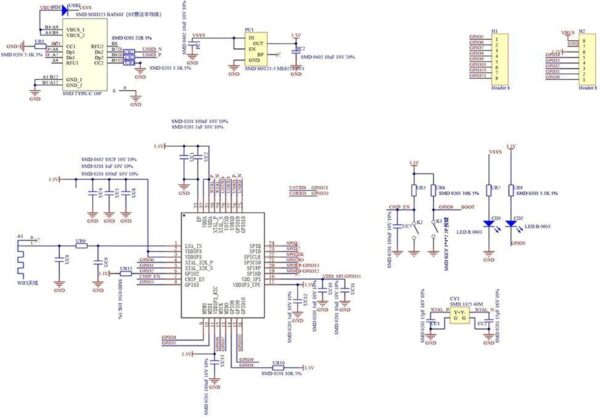

Development  Resources: Demo Codes, Schematics, Datasheets, Etc

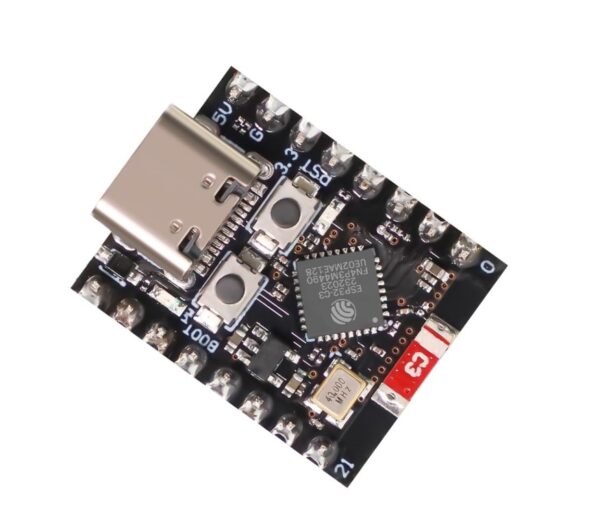

First Look at the Super Mini ESP32-C3

1. There may be slight size deviations due to manual measurement and different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photography lights, angles and displays.
