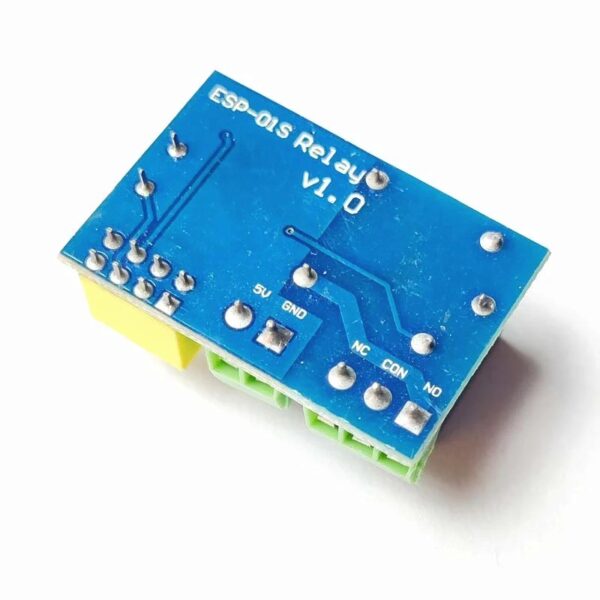

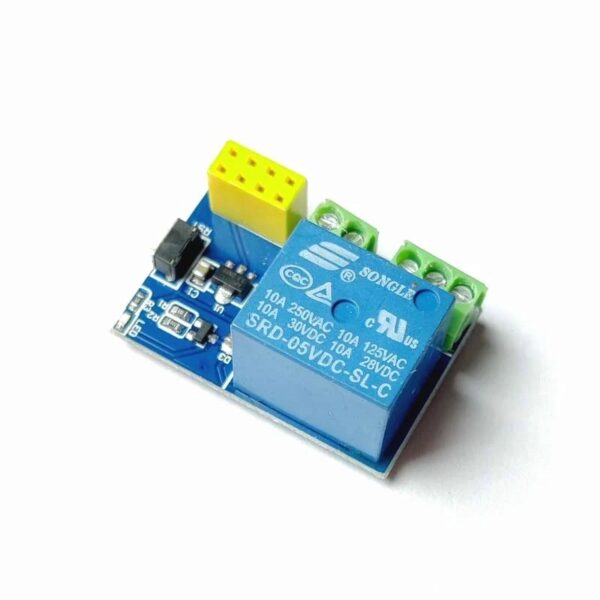

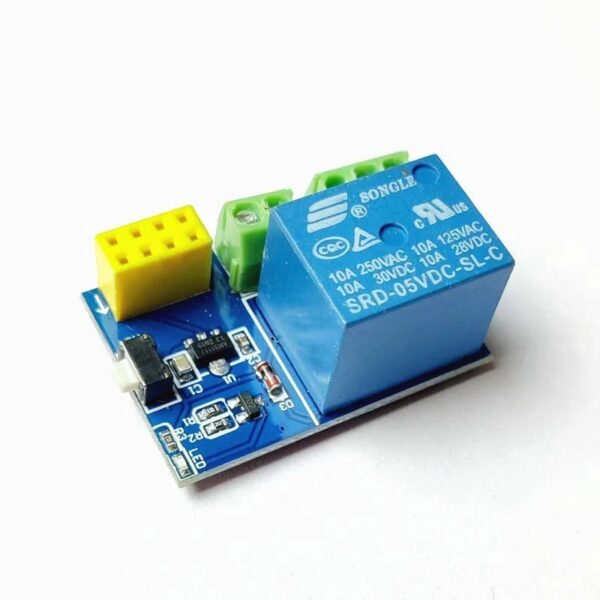

The ESP8266 ESP-01/ESP-01S Relay WiFi Smart Control Module is a compact and cost-effective solution for controlling high-voltage appliances remotely via WiFi.

It combines the popular ESP8266 WiFi microcontroller module (ESP-01 or ESP-01S) with a relay module to enable wireless switching of connected devices.

Specifications:

Working voltage: DC 5V-12V
Working current: ≥250mA
Communication: ESP01 or ESP 01S WiFi module
Transmission distance: the maximum transmission distance is 400m (open environment, mobile phone equipped
with a WiFi module)
Load: 10A/ 250VAC, 10A/ 30VDC, 10A/ 30VDC, 10A/ 28VDC
Size: 37 x 25mm
Note: The Relay Brand can change.

Package Includes:

ESP8266 ESP-01/ESP-01S Relay WiFi Smart Control Module

	Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc https://www.instructables.com/id/ESP0101S-RELAY-MODULE-TUTORIAL/
