FFC / FPC Extension Board 0.5mm – 6 to 60 pin

Name: FFC / FPC Extension Board 0.5mm – 6 to 60 pin
SKU: 56710
Availability: InStock

FFC / FPC Adapter Board are useful in terminating the displays, and also for supporting board-to-board; it is ideal for limited space applications, and manoeuvrability is necessary, like automotive, communications

This item: FFC / FPC Extension Board 0.5mm – 6 to 60 pin

Wemos Triple Base for D1 Mini

1 × Wemos Triple Base for D1 Mini

3 in stock

$6.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.61
Qty Discount	10 +	8% $2.53

SKU: N/A

Categories:Breakout Boards, FFC / FPC Adapter, Prototyping

Description

Additional information

Applications

Support & Utility

Q & A

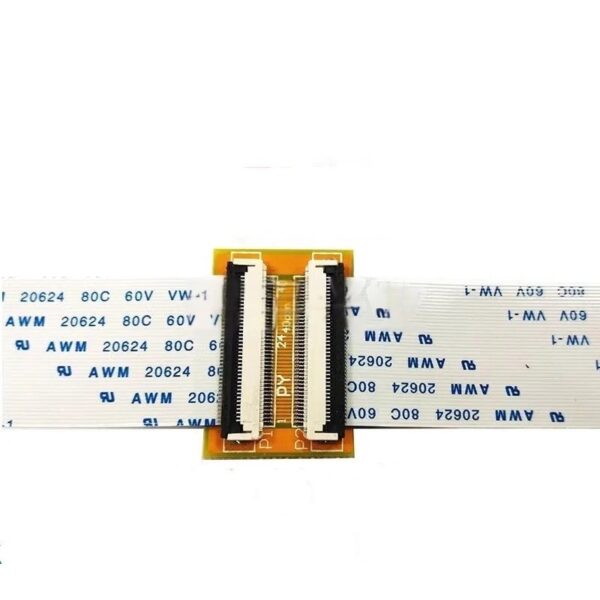

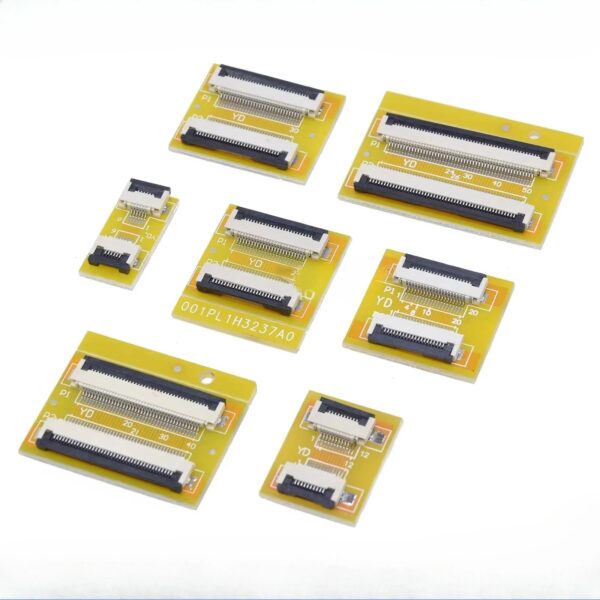

FFC/FPC Extension Board 0.5mm – 6 to 60 pin. The connector is a surface-mount, ideal for applications where space is a factor. It is ideal for limited-space applications that require manoeuvrability, such as the automotive, communications, medical, and consumer industries. They help terminate displays and support board-to-board connections.

Specifications:

FFC Connector pitch 0.5 mm
FPC connector pitch 1.0 mm (Custom order only)
Through-hole space 2.54 mm x 2.54 mm
Double Sided 1.5mm (.060″)
FR-4 board
Plated Copper

Model Dimensions:

6 pin – L 19.5mm, W 9.8mm ±5%.
8 pin – L 19.6mm, W 9.8mm. ±5%
10 pin – L 19.4mm, W 9.9mm. ±5%
12 pin – L 20mm, W 16.3mm. ±5%
20 pin – L 20.2mm, W 22mm. ±5%
24 pin – L 19.5mm, W 21.8mm. ±5%
30 pin – L 20.1mm, W 24.9mm. ±5%
40 pin – L19.8mm, W 30.1mm. ±5%
50 pin – L 19.9mm, W 34.8mm. ±5%
60 pin – L 19.9mm, W39.1mm ±5%
Height 2.9mm ±5%

Package Includes:

FFC / FPC Extension Board 0.5mm xx pin
