H34S T2 xxxmhz RF Wireless Transmitter Module

H34S T2 315mhz RF Wireless Transmitter Module

Name: H34S T2 315mhz RF Wireless Transmitter Module
SKU: TS-W064
Availability: InStock

These modules are commonly used for remote control systems, Wireless data Transmission, home Automation, and other RF communication applications. ASK Superheterodyne Wireless Receiver Module

$5.95

5 in stock

This item: H34S T2 315mhz RF Wireless Transmitter Module

5 in stock

$5.95

L293D Motor Driver Expansion Board Shield For Wifi ESP-12E ESP8266 for NodeMCU

1 × L293D Motor Driver Expansion Board Shield For Wifi ESP-12E ESP8266 for NodeMCU

4 in stock

$6.95

NodeMCU WIFI ESP8266 0.96 INCH OLED

1 × NodeMCU WIFI ESP8266 0.96 INCH OLED

3 in stock

$18.95

NRF24L01 2.4GHz Wireless Transceiver Module

1 × NRF24L01 2.4GHz Wireless Transceiver Module

2 in stock

$4.95

JDY-40 2.4G Wireless Serial Port Transceiver super NRF24L01

1 × JDY-40 2.4G Wireless Serial Port Transceiver super NRF24L01

10 in stock

$3.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-W064

Categories:RF Transceiver Module, Wireless Communication

Description

Additional information

Applications

Support & Utility

Q & A

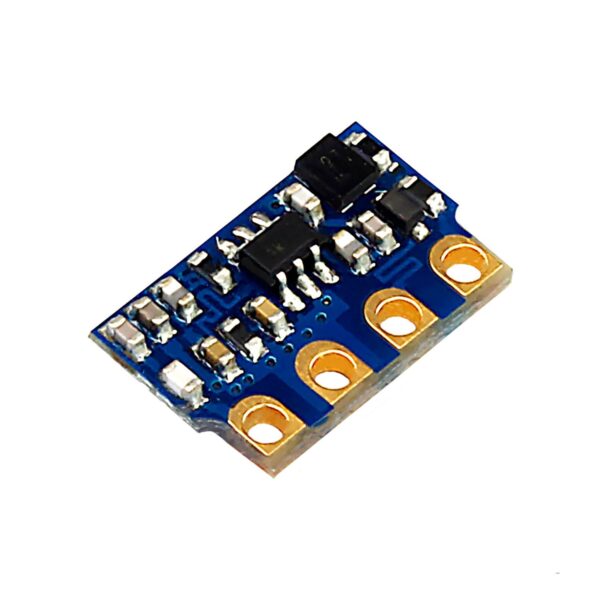

The H34S T2 is a type of RF (Radio Frequency) wireless transmitter module that operates in the 315 MHz frequency range.

These modules are commonly used for remote control systems, wireless data transmission, home automation, and other RF communication applications.

Specifications:

Working frequency: 315 MHz
Working voltage: 2~12V
Emission current: typically 18mA, maximum 20mA (3V power supply, 40% modulation duty cycle )
Modulation method: Ask/00K
Output power: 15dBm(3V) (typical), 16dBm(5V), 18dBm(12V)
Harmonic suppression: >40dBc
Transmission rate: up to 4.8kbps
Frequency deviation: maximum ± 100KHz
Antenna impedance: 50
Data Input: compatible with standard 3-5V CMOS level
Dimensions: 10″, 5×6.5mm X 2.0mm [width X length X thickness]
Working temperature: -45 to +85 °C

Package Includes:

H34S T2 315mhz RF Wireless Transmitter Module
