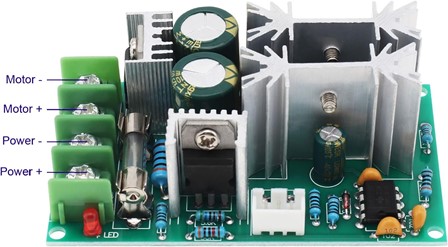

High Power Drive Module PWM Controller 12-48V 2

High Power Drive Module PWM Controller 12-48V

Name: High Power Drive Module PWM Controller 12-48V
SKU: TS-P1294
Availability: InStock

High Power Drive Module PWM Controller 12-48V It can drive all DC Brushed Motors that work between 12V-48V DC and consume up to 20A of current.

$15.95

2 in stock

This item: High Power Drive Module PWM Controller 12-48V

2 in stock

$15.95

FPV Nylon Pan & Tilt Kit (Without Servo)

1 × FPV Nylon Pan & Tilt Kit (Without Servo)

51 in stock

$5.95

Servo Motor SG-5010 - 360 degrees

1 × Servo Motor SG-5010 - 360 degrees

10 in stock

$12.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $15.15
Qty Discount	10 +	8% $14.67

SKU: TS-P1294

Categories:Motor Drivers & Controllers, Motors - Servo's

Description

Additional information

Applications

Support & Utility

Q & A

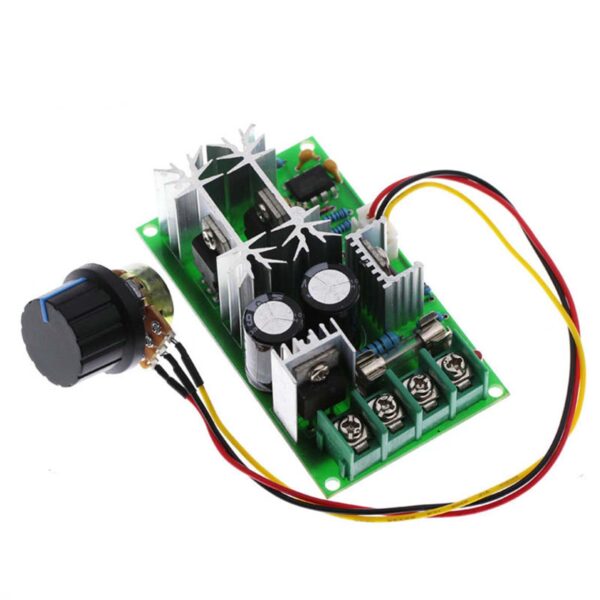

High Power Drive Module PWM Controller 12-48V lets you control the speed of a DC motor using a Pulse Width-Modulated (PWM) DC voltage. It can drive all DC Brushed Motors that work between 10V-48V DC and consume up to 20A of current.

Specifications:

Input Voltage: DC 12-48V
Output Voltage: Linear Load
Output Current: 0-20A
Maximum Current: 20A
Continuous Current: 18A
Continuous Power: 1200W
Control Frequency: 25KHZ
Speed Regulating Type: Adjust Flow
Potentiometer:100k (linear)
Speed Range: 0-100%
Potentiometer Mounting Hole: 7mm (Approx.)
Module Size: 77 x 45 x 28mm (Approx.)
Board Size: 73 x 40mm(Approx.)

DC power supply Only. Never connect directly to household 240V AC.

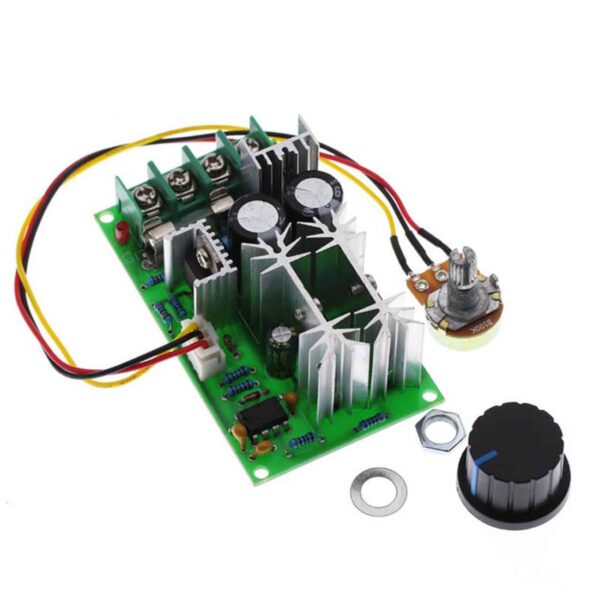

Package Includes:

High Power Drive Module PWM Controller 12-48V
Mounting Hardware
Knob: Black
Cable
