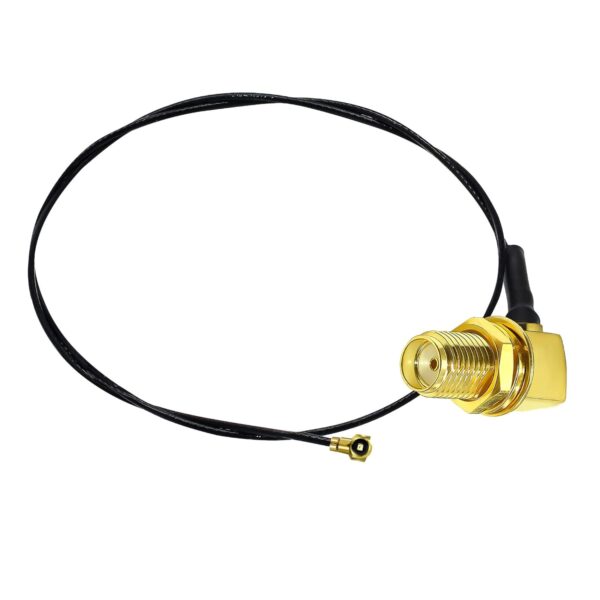

IPEX 4 to Right Angle SMA Female Cable

Name: IPEX 4 to Right Angle SMA Female Cable
SKU: TS-W050
Availability: InStock

IPEX 4 to Right Angle SMA Female Cable is commonly used to attach WiFi, Bluetooth, Meshtastic and LoRa antennas

$3.95

22 in stock

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.75
Qty Discount	10 +	8% $3.63

SKU: TS-W050

Category:RF Adapter Cable

Description

Additional information

Applications

Support & Utility

Q & A

IPEX 4 to Right Angle SMA Female Cable is commonly used to attach WiFi, Bluetooth, Meshtastic and LoRa antennas, but can be used. Frequency Range: 0mHz-6GHz

Note: There are two types of SMA connectors in everyday use:

SMA Female: connector with centre receptacle pin
RP-SMA Female: connector with centre pin

Specifications:

Frequency Range: 0mHz-6GHz
Maximum Power: 20 watts
Impedance: 50 ohms
Cable length: 150mm (can change with each Batch), but the minimum is 150mm
Cable Colour: Black
SMA Connector: 6mm x 11mm
Connector Type: UFL to SMA Female

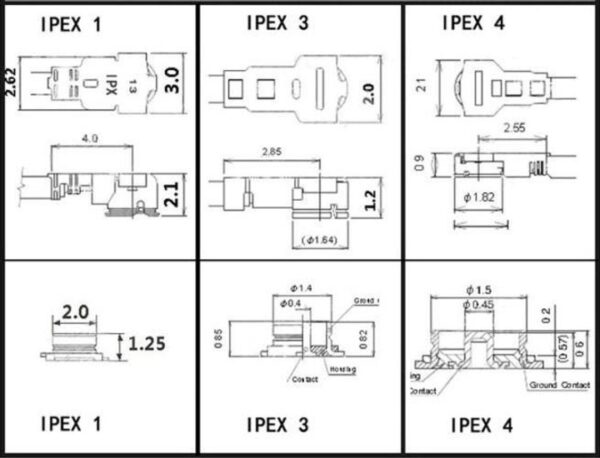

Connector Type: IPEX 4
Hardware: Nut, Helical Spring washer, internal Tooth Washer

Package Includes:

IPEX 4 to Right Angle SMA Female Cable
Hardware: Nut, Helical Spring washer, internal Tooth Washer
