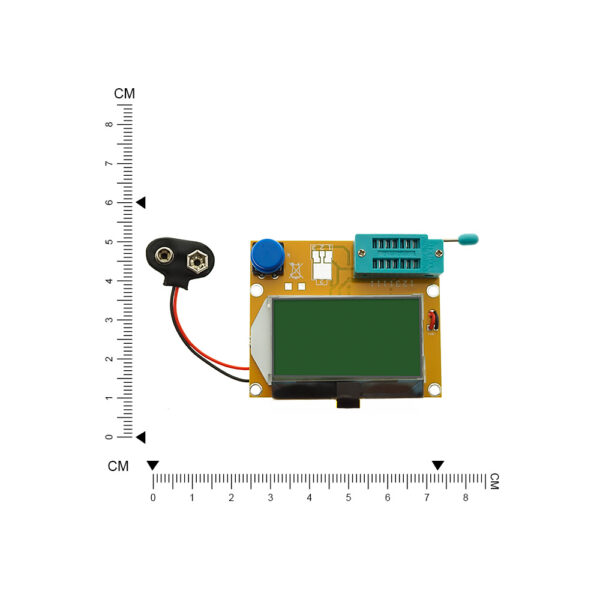

LCR-T4 MEGA428 Component tester ESR meter LCD display

Operation:

• The meter measures the voltage across and the current through the DUT.
• From these ratios, the meter can determine the magnitude of the Impedance. In combination with the impedance.
• The DUT’s equivalent capacitance, inductance, and resistance can be calculated and displayed.
• All real Capacitors have negligible inductance, little resistance, and some defects causing inefficiency.
• The most helpful assumption, usually adopted, is that LR measurements have the elements in series and CR measurements have the elements in parallel.
• Handheld LCR meters typically have selectable test frequencies of 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz for top-end meters.
• The display resolution and measurement range capability will typically change with the applied test frequency since the circuitry is more sensitive or less for a given component.

Specifications:

• Supply Voltage: DC9V
• Resistance Measurement Resolution: 0.1 ohm
• Maximum Measurement Value: 50M ohm
• Work Temperature: -25℃~85℃
• Work Humidity: 5%~95%RH
• Size: 86*60.5*18.5mm
• Resistor: 0.1ω-50Mω
• Capacitor: 25pF-100000uF
• Inductance: 0.01mH – 20H
• Standby current: 0.02uA
• Operating current: 25mA
• No Case supplied

Package Includes:

• LCR-T4 Transistor Tester
• 9V battery (Not Included)

Development  Resources: Demo Codes, Schematics, Datasheets, Etc

1. There may be slight size deviations due to manual measurement and different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photography lights, angles and displays.
