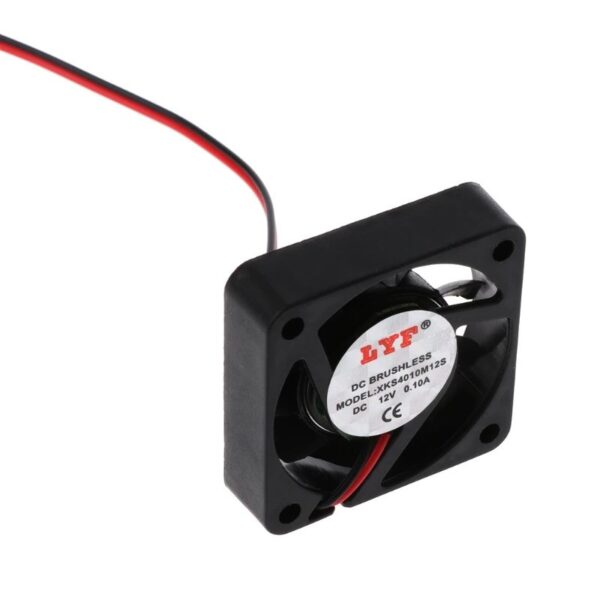

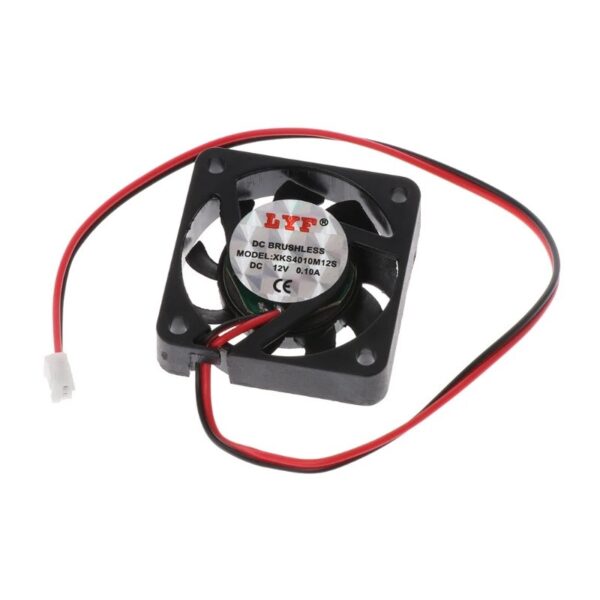

LYF 40mm 12V Sleeve bearing Cooling Fan

Name: LYF 40mm 12V Sleeve bearing Cooling Fan
SKU: TS-P1318
Availability: InStock

LYF 40mm 12V Sleeve bearing Cooling Fan system provides whisper-quiet operation and superior resistance to dust and debris, extending the motor’s operational lifetime.

$4.95

2 in stock

This item: LYF 40mm 12V Sleeve bearing Cooling Fan

2 in stock

$4.95

Silver 58x22x27mm Heatsink Holder for 12mm Laser Modules

Silver Heatsink Holder for 12mm Laser Modules

1 × Silver 58x22x27mm Heatsink Holder for 12mm Laser Modules

6 in stock

$7.95

Sunon 40mm 12VDC Maglev Bearing Cooling Fan

1 × Sunon 40mm 12VDC Maglev Bearing Cooling Fan

1 in stock

$14.95

Sunon 80mm 12VDC Sleeve Bearing Cooling Fan

1 × Sunon 80mm 12VDC Sleeve Bearing Cooling Fan

1 in stock

$13.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $4.70
Qty Discount	10 +	8% $4.55

SKU: TS-P1318

Categories:12VDC Fans, Cooling Systems, Fans

Description

Additional information

Applications

Support & Utility

Q & A

LYF 40mm 12V Sleeve bearing Cooling Fan with a thermoplastic frame. It is designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.

Specifications:

Model: MKS4010M12S
Mechanical Characteristics
Motor Design: 2 phases, 4-pole brushless DC motor
Bearing System: Sleeve bearing system
Frame Material: Thermoplastic PBT of UL94V-0
Blade Material: Thermoplastic PBT of UL94V-0
Direction of Rotation: Counterclockwise viewed from the front of the fan blade
Cable:15cm
Plug: JST PH2.0
Weight: 10.5g
Dimensions: 40 x 40 x 10mm
Electrical Characteristics
Rated Voltage: 12V DC
Rated Current: 10mA
Operating Temperature: -10°C ~ +70°C
Storage Temperature: -40°C ~ +70°C
Performance Characteristics
Rated Speed: 4900-6050 RPM ±15% at rated voltage
Insulation Class: UL Class A
Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
Dielectric Strength: 500V AC for once minute or 600V AC for 2 seconds between housing and lead wire (+)
Life Expectancy: 40,000 hours at 40°C, 65% RH, 90% CL
*Specifications are subject to change without notice.

Package Includes:

LYF 40mm 12V Sleeve bearing Cooling Fan
