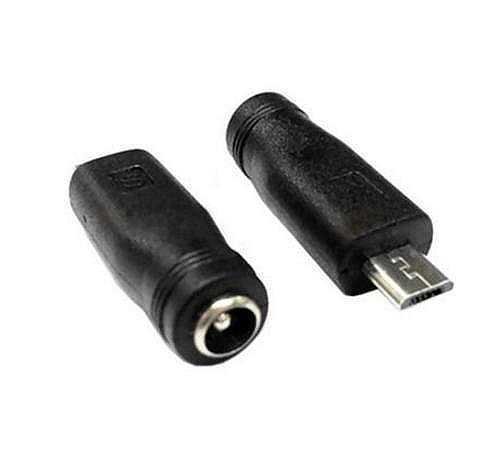

Micro USB 5 Pin Male To 5.5 x 2.1mm Female DC Power Adapter

The premise of this Micro USB 5 Pin Male To 5.5 x 2.1mm Female DC Power Adapter is simple. There’s a MicroUSB plug on one end and a 5.5mm/2.1mm DC barrel jack with centre positive polarity on the other. This allows you to connect one of our 5V 2 Amp, 5V 4A or 5V 10 Amp adapters to something that expects to connect to 5V USB. We also have a cable version of this, but this one is compact and cute!

Since this does not have any resistors or other connections inside for the data lines, this won’t work for charging an iPhone, iPod or iPad or another device that expects some sort of resistance on the D+ and D- connections. It does, however, work great for Arduinos, BeagleBones, Raspberry Pis, many generic cellphones & Android devices, as well as most other USB-powered gadgets.

Description

• Micro USB 5 Pin Male To 5.5 x 2.1mm Female DC Power Adapter
• Connector 1: 5.5mm x 2.1mm Female
• Connector 2: Micro USB male

Development  Resources: demo codes, schematics, datasheets, etc

USB Nano V3 ATmega328P FTDI 5V

Reference for Arduino and reference to all matters

Ardunio from Wikipedia

Notes:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing light, angle and display monitor.
