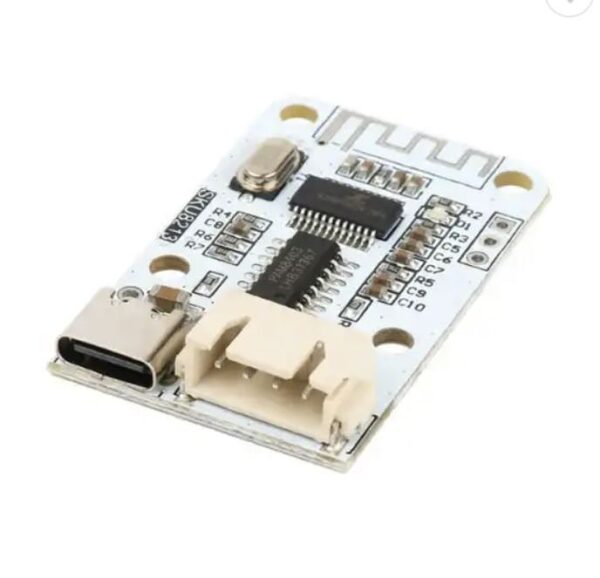

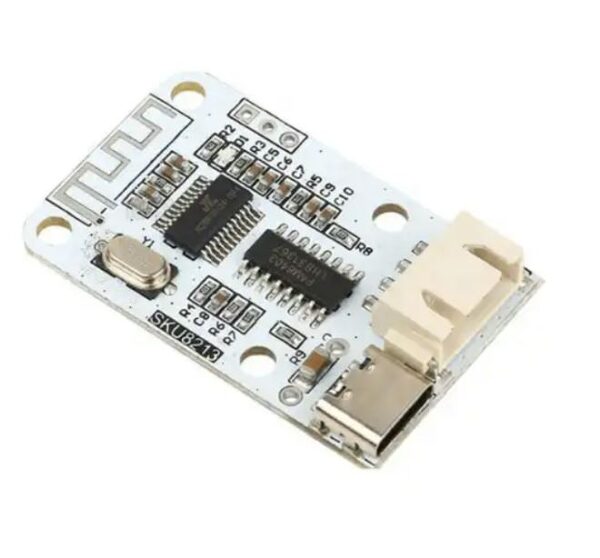

The PAM8403 Bluetooth 4.0 2-Channel 3W Class D Amplifier, based on the PAM8403 Integrated circuit, is a 3W Class-D audio Amplifier with low Harmonic Distortion and high efficiency.

The supply voltage is 5V via the Type-C connector, allowing you to use the computer’s USB port to power the amplifier or a smartphone charger.

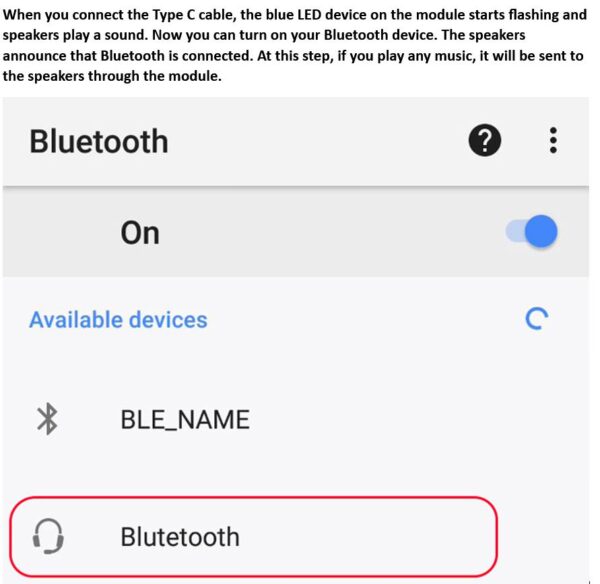

The sound source is, therefore, all portable devices, such as smartphones, mobile phones, tablets, laptops, and notebooks, equipped with Bluetooth. The amplifier module is straightforward to install in the final product.

Specifications:

Model:8213
IC: PAM8403
Audio input signal: Bluetooth v4.0 wireless stream
Bluetooth operating range up to 10 meters
Type C: Power Input
Output: JST XH 2.54 4-pin
Low voltage power supply: 2.5~5.5VDC, USB
Two stereo channels: 3+3W
Class: Class-D or Class-AB
5W Output at 10% THD with a 2Ω Load @ 5VDC
3W Output at 10% THD with a 4Ω Load @ 5VDC
Low voltage power supply: 2.5~5.5VDC
Speaker Impedance: 2/4 Ω
Efficiency up to 90% with Class-D Mode
Filterless, low Quiescent current and no EMI
Low thd+n at fully output range
Superior low noise
No pop at turn-on/off
Fully short circuit protection with auto-recovery
Thermal Shutdown

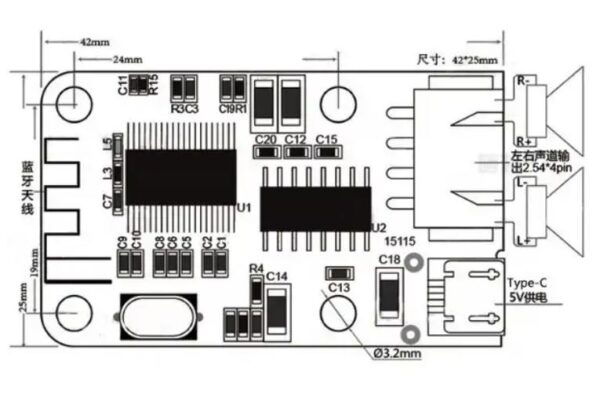

Dimensions: 42 x 25 x 1.2cm

Package Includes:

PAM8403 Bluetooth 4.0 2-Channel 3W class D amplifier
