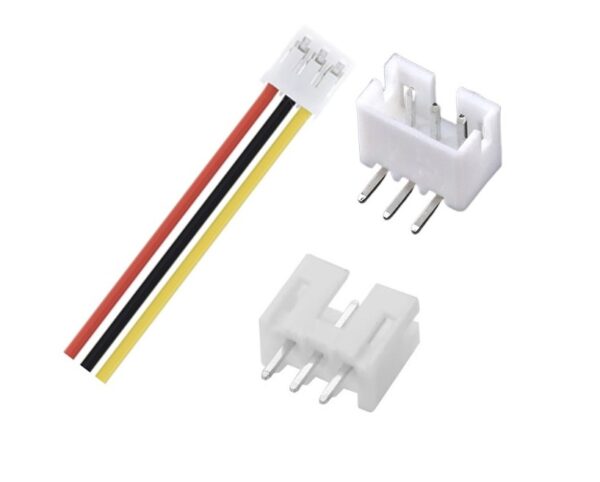

PH2.0 3 Pin 200mm 26AWG Cable + Socket

Name: PH2.0 3 Pin 200mm 26AWG Cable + Socket
SKU: 39995
Availability: InStock

This cable is perfect for customising the connections on your project/PCB to accept a LiPo battery or simply replacing existing battery connections. Always check the polarity of any JST cable before using it.

This item: PH2.0 3 Pin 200mm 26AWG Cable + Socket

RJ45 Cat5e 3mt Patch Cable Blue

1 × RJ45 Cat5e 3mt Patch Cable Blue

26 in stock

$6.95

Micro USB 5 Pin Male To 5.5 x 2.1mm Female DC Power Adapter

1 × Micro USB 5 Pin Male To 5.5 x 2.1mm Female DC Power Adapter

94 in stock

Title	Qty	Discount
Qty Discount	4 - 9	5% $2.14
Qty Discount	10 +	8% $2.07

SKU: N/A

Categories:Cable assemblies, JST Cable Assemblies, JST-PH2.0 3 Pin Extension Cable

Description

Additional information

Applications

Support & Utility

Q & A

This is perfect for customising the connections on your project/PCB to accept a LiPo battery or simply replacing existing battery connections.

A Word on Polarity…

The cable connector industry doesn’t appear to have a clearly defined polarity standard for JST cables/connectors/batteries, so you may find that different suppliers use different polarities. Always check the polarity of any JST cable before using it.
You can easily swap the wires by releasing each wire from the connector with a pin or similar—this is a standard process with JST connections.

Specifications:

Cable Length: 200mm
Pins: 3 Way
PCB Socket: Through Hole, Vertical or Right Angle.
Current Rating: 2A AC/AC
Voltage Rating: 250V AC/DC
Contact Resistance: 20M Ohm max.
Withstand Voltage:800V AC/min
Temperature Range: -25c -+ 85c
Post: Brass, Tin-plated
Base: PA66, UL94V-2
26AWG Connector
Material: Plastic wire

Package Includes: In your Qty pack

PH2.0 3-pin Cables
Vertical or Right Angle PCB Socket
