PL2303 USB to TTL Serial UART RS232 Adaptor

PL2303 USB to TTL Serial UART RS232 Adaptor

Name: PL2303 USB to TTL Serial UART RS232 Adaptor
SKU: TS-P1501
Availability: InStock

USB to TTL converters are essential for prototyping – they provide a direct interface with the target device. This module connects to your computer USB port and there are 4 wires which connect with your target device

$5.95

6 in stock

This item: PL2303 USB to TTL Serial UART RS232 Adaptor

6 in stock

$5.95

Isolated USB-C to UART TTL CH340E 3.3v Converter

1 × Isolated USB-C to UART TTL CH340E 3.3v Converter

5 in stock

$7.95

MAX3232 RS232 Serial Port To TTL

1 × MAX3232 RS232 Serial Port To TTL

1 in stock

$5.95

FT232RL Chip USB To TTL USB to TTL Program Compact Verison

1 × FT232RL Chip USB To TTL USB to TTL Program Compact Verison

3 in stock

$6.50

SN65HVD230 CAN Bus Transceiver Module

1 × SN65HVD230 CAN Bus Transceiver Module

96 in stock

$9.99

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-P1501

Categories:Data Converters, USB to UART TTL RS 232

Description

Additional information

Applications

Support & Utility

Q & A

A PL2303 USB-to-Serial adapter is a USB dongle/module built around the Prolific PL2303 chip. It converts USB signals from a computer into TTL-level serial (UART) signals for communication with microcontrollers and embedded devices.

Specifications:

Fully enclosed professional finish.
Built-in PL2303TA USB to Serial Controller
Designed to be used for USB to TTL electronic projects
TTL interface output, easy to connect to your MCU
Dual 3.3V and 5V Power output (by changing the red wire termination)
Can independently power the circuit with 5V or 3.3V
Compact design

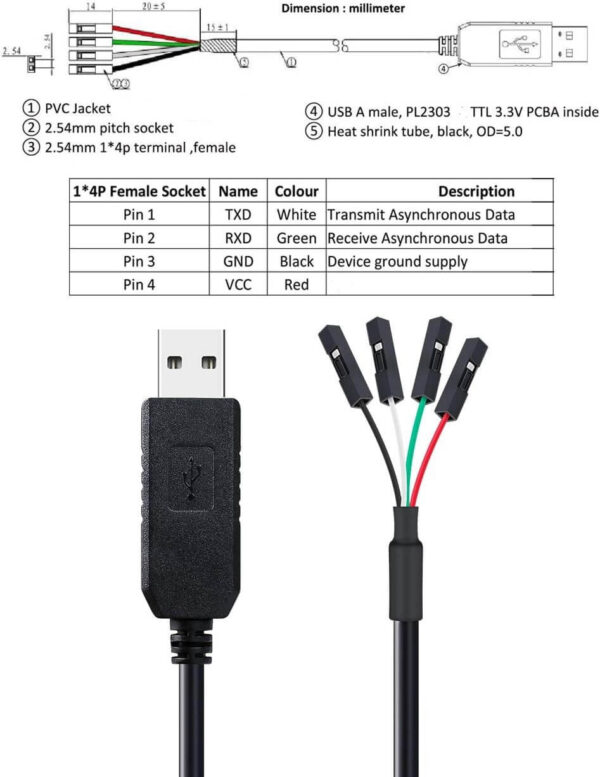

Operation:

Red – power. This pin provides up to 500mA of current. YOU MUST NOT use other power supplies if you choose to power the target device with this Adaptor.
Black – ground (always needed, regardless of whether the Adaptor is powering the target device or not)
White RX (3.3V, which is compatible with 5V logic)
Green TX (3.3V, which is compatible with 5V logic)

3.3V and 5V Selection:

Open the plastic case (twist the USB connector, then evenly pull the case apart) and change the red wire termination to the pad marked 5V or 3V3.

Supports the following Windows OS

Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above (32 & 64 bit)
Windows Server 2003 (32 & 64 bit)
Windows Server 2008 / 2008 R2 (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows 7 (32 & 64 bit)
NOTE: For Windows 7, please use RC build 7100 or above.
Windows 8, 8.1, & 10
Driver Software

Package Includes:

PL2303 USB to TTL Serial UART RS232 Adaptor
