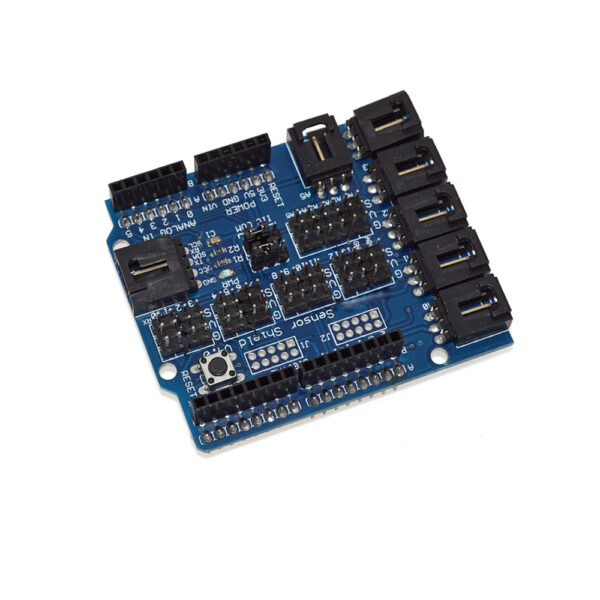

Sensor Shield V4.0 compatible with Arduino2

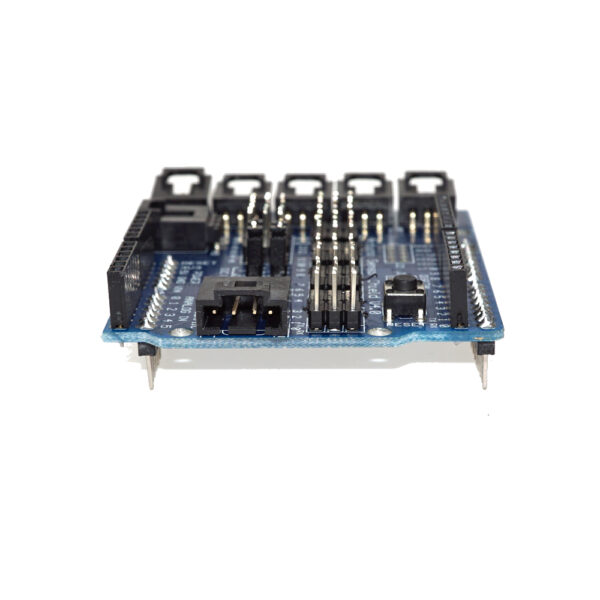

Sensor Shield V4.0 compatible with Arduino1

Sensor Shield V4.0 compatible for Arduino

Name: Sensor Shield V4.0 compatible for Arduino
SKU: TS-P1327
Availability: InStock

Sensor Shield V4.0 is Compatible with most Arduino boards that support the standard header layout, including Uno, Leonardo, and Mega. It provides a convenient way to connect various sensor modules

$8.95

5 in stock

This item: Sensor Shield V4.0 compatible for Arduino

5 in stock

$8.95

UNO R3 Proto Screw Shield V3.0

1 × UNO R3 Proto Screw Shield V3.0

4 in stock

$12.95

L298N Dual DC Motor Shield Mega2560 UNO R3

1 × L298N Dual DC Motor Shield Mega2560 UNO R3

3 in stock

Mega Sensor Expansion Shield V1.0

1 × Mega Sensor Expansion Shield V1.0

5 in stock

$10.55

ZigBee XBee Bluetooth Expansion Shield - UNO Mega1280 Mega2560

1 × ZigBee XBee Bluetooth Expansion Shield - UNO Mega1280 Mega2560

5 in stock

Title	Qty	Discount
Qty Discount	4 - 9	5% $8.50
Qty Discount	10 +	8% $8.23

SKU: TS-P1327

Categories:Arduino Shield, Sensor Shield

Description

Additional information

Applications

Support & Utility

Q & A

Sensor Shield V4.0 is a low-cost expansion board (stackable shield) for Arduino boards such as the Uno, Leonardo, and Mega.

It provides a plug‑and‑play interface to sensors, servos, relays, buttons, potentiometers, and I²C/UART modules—without soldering.

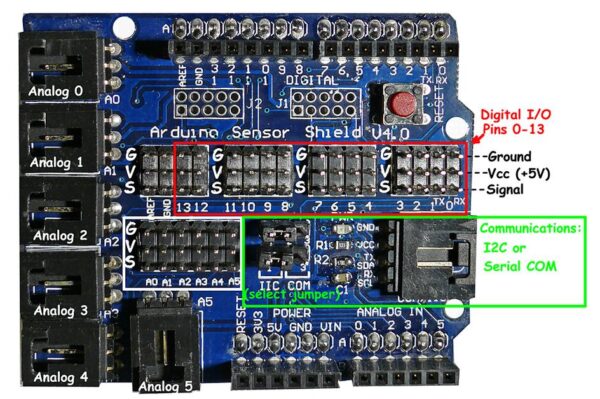

Specifications:

6 x Buckled 3-pin analogue connectors providing connections to Analogue pins A0 to A5, GND and 5V
1x Buckled 4-pin serial I2C / UART interface (selectable via onboard jumpers)
12x Servo headers providing access to digital pins 0 to 13 with VCC and GND power connections.
Input Voltage (limits): 6-20VDC.
6x Aux headers providing access to analogue pins A0 to A5
Analog IO Port:2.54 grid male pin header connections.
Digital IO port: 13 ports prepared for digital modules or servos.
Serial I2C / UART jumper selection
Reset button
Size:7cm x 5.8cm
Standard Arduino headers for adding additional shields.

Note I2C interface is compatible with Uno only. When connecting multiple servos, please check the power requirements.

Package Includes:

Sensor Shield V4.0 is compatible with Arduino
