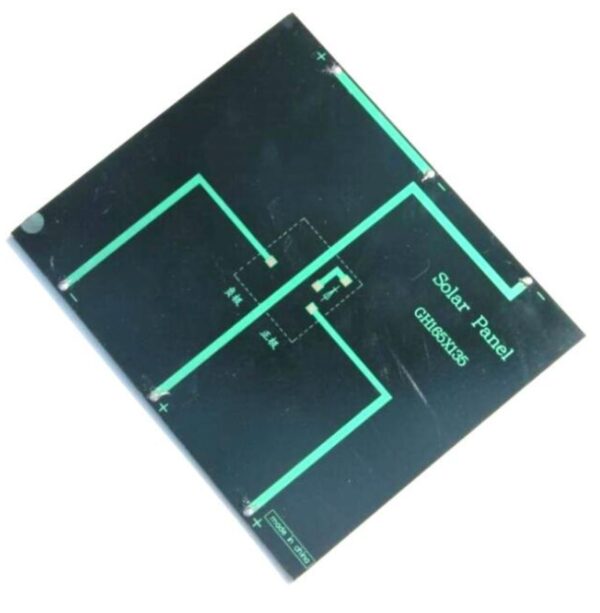

Mini Solar Panel 165x135mm 3.5W 6.0V 580mA

The Mini Solar Panel 165x135mm 3.5W 6.0V 580mA is made of single-crystal material and has a high % solar energy transformation efficiency of 17%.

Specifications:

• Chemical type: polycrystalline silicon cell
• Construction Process: Epoxy resin AB glue
• Output power: 3.5W MAX
• Working voltage: 6V
• Conversion efficiency: 17 (%)
• Working current: 580mA MAX
• Open circuit voltage: 6.6V
• Short circuit current:   638mA
• Dimensions: 165mm×135mmx 3mm
• Note:

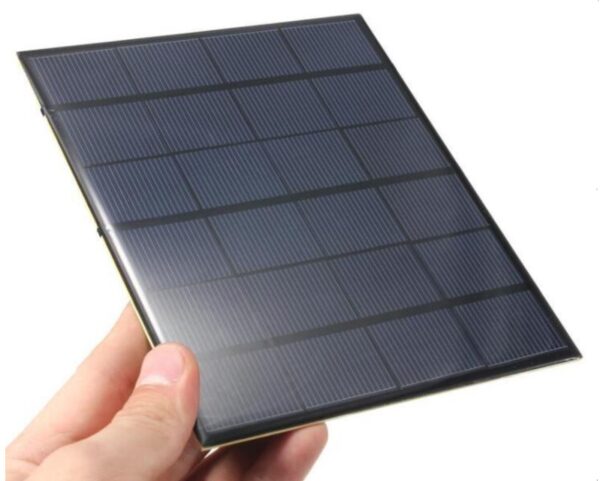

Package included: 1x Solar Panel 135mm x 165mm 3.5W 6V 580MA

Check out our On Sale and Clearance Items

Development  Resources: demo codes, schematics, datasheets, etc

Recommended: Solar lipo charger Lithium battery

How to choose a solar panel :

This table shows the solar system configuration relationship between storage batteries and solar panels
