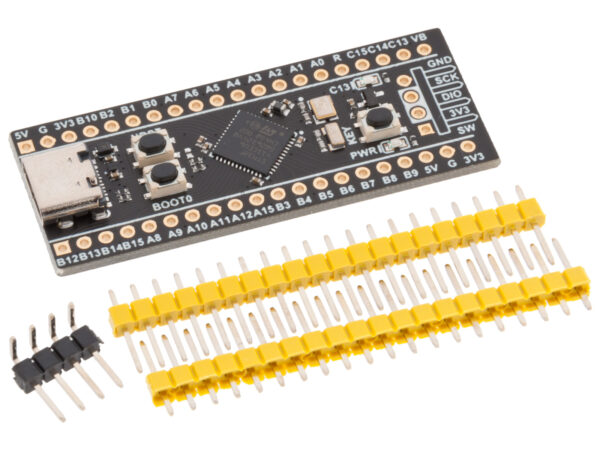

STM32F401CCU6 STM32F4 Black Pill

The New  STM32F401CCU6 STM32F4 Black Pill Development Board with the STM32F401 series chip, with a higher clock frequency, a floating-point arithmetic module, more internal SRAM (64KB), more Flash (256KB) and enhanced peripherals. The M32F401CCU6 STM32F4 Black Pill also implements a complete set of DSP instructions and a memory protection unit (MPU), which enhances application security.

Features

• The onboard Mini USB interface provides power and USB communication.
•  test indicator LED (On C13 io)
•  reset button and power indicator LED
• Boot0 Configuration Push-Button
• On-board 100ma 3.3V Regulator
• All GPIO are led out and the names of the pins are marked
• After soldering the headers, you can directly plug the board into the breadboard

Technical Specifications

• CPU Part Number: STM32F401CCU6
• Core: ARM 32 Cortex-M4 CPU.
• Debug mode: SWD (can be programmed with ST-LINK V2)
• CPU Internal Maximum Clock: 84MHz
• External Clock Source: 25MHz crystal
• 256K flash memory, 64K SRAM
• Connectivity: I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
• Peripherals: Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
• 2.0-3.6V power, I/O
• USB Connector Type: Type C
• Reset(POR/PDR)
• Size: 5.3cm x 2.0cm

Package included: 1x STM32F401CCU6 STM32F4 Black Pill
