Sunon 40mm 12VDC Maglev Bearing Cooling Fan

Name: Sunon 40mm 12VDC Maglev Bearing Cooling Fan
SKU: TS-P1319
Availability: InStock

40mm 12VDC Fan maglev bearing system provides whisper-quiet operation and superior resistance to dust and debris, extending the motor’s operational lifetime.

$14.95

1 in stock

Sunon 40mm 12VDC Maglev Bearing Cooling Fan

This item: Sunon 40mm 12VDC Maglev Bearing Cooling Fan

1 in stock

$14.95

Silver 58x22x27mm Heatsink Holder for 12mm Laser Modules

Silver Heatsink Holder for 12mm Laser Modules

1 × Silver 58x22x27mm Heatsink Holder for 12mm Laser Modules

6 in stock

$7.95

Sunon 80mm 24VDC Sleeve Bearing Cooling Fan

1 × ~~Sunon 80mm 24VDC Sleeve Bearing Cooling Fan~~

Out of stock

$17.25

10g Syringe Silicone Heatsink Thermal Paste Compound

10g Syringe CPU Silicone Heatsink Thermal Paste Compound

1 × 10g Syringe Silicone Heatsink Thermal Paste Compound

2 in stock

$4.55

Sunon 40mm 5VDC Maglev Bearing Cooling Fan

1 × Sunon 40mm 5VDC Maglev Bearing Cooling Fan

1 in stock

$19.50

Title	Qty	Discount
Qty Discount	4 - 9	5% $14.20
Qty Discount	10 +	8% $13.75

SKU: TS-P1319

Categories:12VDC Fans, Cooling Systems, Fans

Description

Additional information

Applications

Support & Utility

Q & A

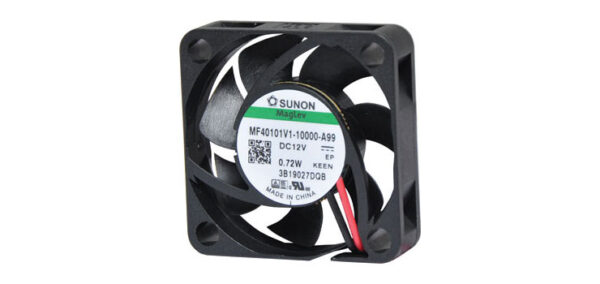

Sunon MF40101V1-1000U-A99 is a 12V DC 40mm Maglev/Vapo Bearing Cooling Fan with a thermoplastic frame. It is designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings.

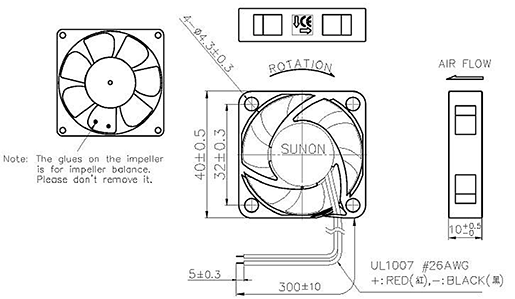

Specifications:

Manufacturer’s Code: MF40101V1-1000U-A99
Connection: Flying Lead
Air Flow: 8CFM
Input Power: 1.1W
Rated Current: 51mA/ Max. 59mA
Speed: 7000 RPM
Noise Level: 27.3dBA
Material: Thermoplastic
Size: 40 x 40 x 10mm
Bearing Type: Maglev
Operating temperature: -10 to +70 °C. C
Storage temperature: -40 to +70 °C. C
*Specifications are subject to change without notice.

Package Includes:

Sunon 40mm 12VDC Maglev Bearing Cooling Fan
