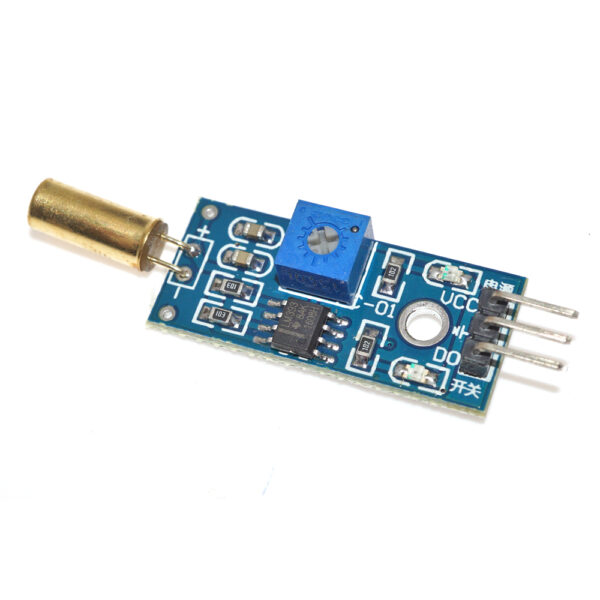

SW-520D Tilt Switch Angle Sensor Module

Name: SW-520D Tilt Switch Angle Sensor Module
SKU: TS-P1421
Availability: InStock

The SW-520D operates via a rolling-ball mechanism inside a sealed tube. When the sensor is tilted, the ball moves and closes the circuit, activating the switch. The output is digital, providing a simple HIGH (1) or LOW (0) signal to indicate whether the sensor is tilted or not.

$5.95

8 in stock

This item: SW-520D Tilt Switch Angle Sensor Module

8 in stock

$5.95

XL-10AL Bistable Switch 3v to 5.4V

1 × XL-10AL Bistable Switch 3v to 5.4V

5 in stock

$2.95

3-5V DC Vibration Switch Single-Channel

1 × 3-5V DC Vibration Switch Single-Channel

1 in stock

$5.95

Keyes Ball switch/angle tilt sensor module With XH2.54 3P Socket

1 × Keyes Ball switch/angle tilt sensor module With XH2.54 3P Socket

9 in stock

$4.95

Mercury switch sensor module

1 × ~~Mercury switch sensor module~~

Out of stock

$3.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $5.65
Qty Discount	10 +	8% $5.47

SKU: TS-P1421

Categories:Mercury, Switch Modules

Description

Additional information

Applications

Support & Utility

Q & A

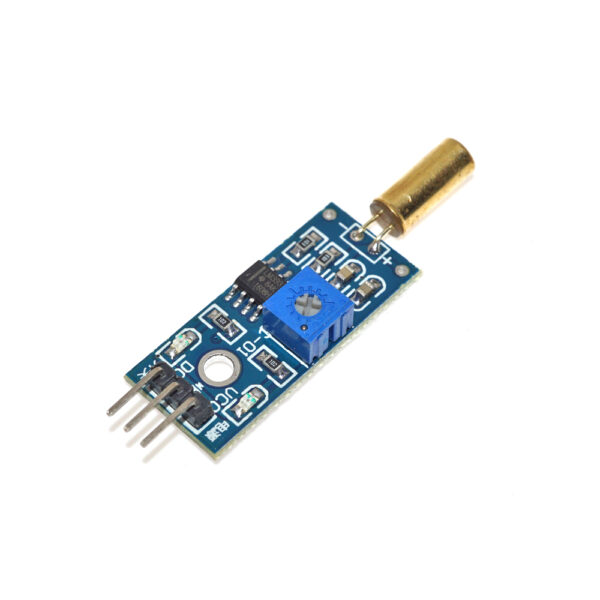

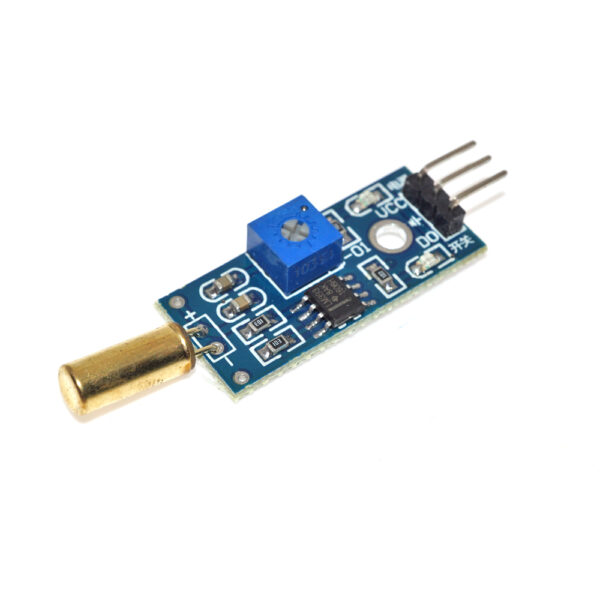

The SW-520D Tilt Switch Angle Sensor Module is a simple, reliable motion detection device that senses tilt, vibration, or orientation changes. It is based on the SW-520D tilt switch, which contains a small metal ball that moves inside the sealed housing to open or close the circuit when the module is tilted beyond a certain angle.

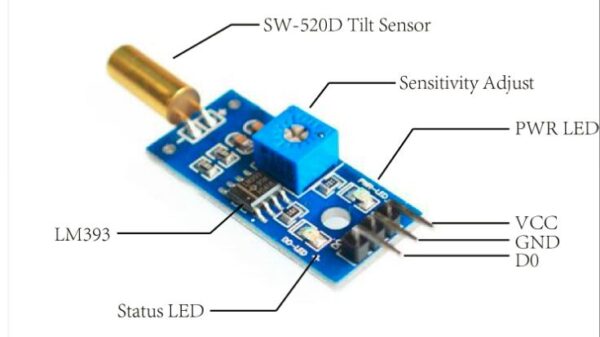

This module features an LM393 comparator IC and an adjustable potentiometer, allowing you to fine-tune the sensitivity for digital output. It provides both analog and digital signal outputs, making it easy to interface with microcontrollers such as Arduino, Raspberry Pi, or other control boards.

Specifications:

Tilt Switch: SW-520D
Tilt Angle Detection: 14-45 degrees
Working Voltage: 3.3-5Vdc
Max Comparator Current: 15mA
Comparator Chip: LM393
Output format: digital switching outputs (0 and 1).
Board Size: 30mm x 16mm

Package Includes:

SW-520D Tilt Switch Angle Sensor Module
