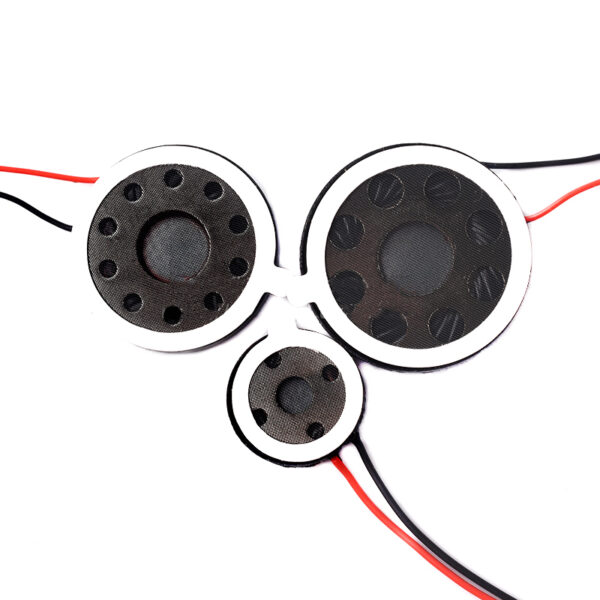

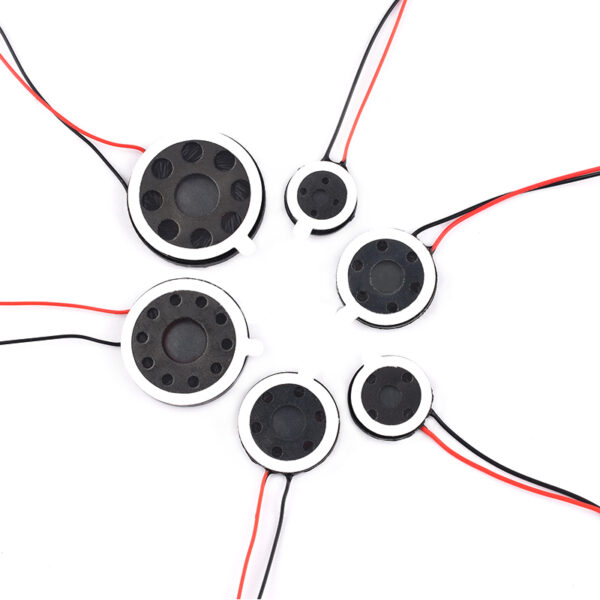

Ultra-thin Mini Round Loudspeaker 0.5-1W 13-25mm

Name: Ultra-thin Mini Round Loudspeaker 0.5-1W 13-25mm
SKU: 35612
Availability: InStock

Ultra-thin Mini Round Loudspeaker 0.5-1W 13-25mm Will bring sound to your next Project; great for Small robots, DoorBell or DIY toys.

This item: Ultra-thin Mini Round Loudspeaker 0.5-1W 13-25mm

Ultra-thin Mini speaker 8Ω 2W 40mm

1 × ~~Ultra-thin Mini speaker 8Ω 2W 40mm~~

Out of stock

$4.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $4.70
Qty Discount	10 +	8% $4.55

SKU: N/A

Description

Additional information

Applications

Support & Utility

Q & A

Ultra-thin Mini Round Loudspeaker 0.5-1W 13-25mm Will bring sound to your next Project; great for Small robots, DoorBell or DIY toys.

13mm: Speaker
Rated Frequency:300-15KHz
Rated Power:500mW
Maximum Power:800mW
Resistance: 8Ω
Operating Temperature:-5℃-55℃
Storage Temperature:-10℃-50 ℃
Weight: 1 grams
15mm,18mm: Speaker
Rated Frequency:300-15KHz
Rated Input Power:0.5W
Maximum Power:1W
Resistance: 8Ω
Operating Temperature:-25℃~+50℃
Storage Temperature:-25℃~+55℃
Weight: 15mm 1.5 grams, 18mm 2.35 grams, 18mm (with JST 1.25), 2.4 grams
23mm, 25mm: Speaker
Rated Frequency:300-15KHz
Rated Input Power:1W
Maximum Power:1.5W
Resistance: 8Ω
Operating Temperature:-25℃~+50℃
Storage Temperature:-25℃~+55℃
Weight: 23mm 2.5 grams. 25mm 3.3 grams

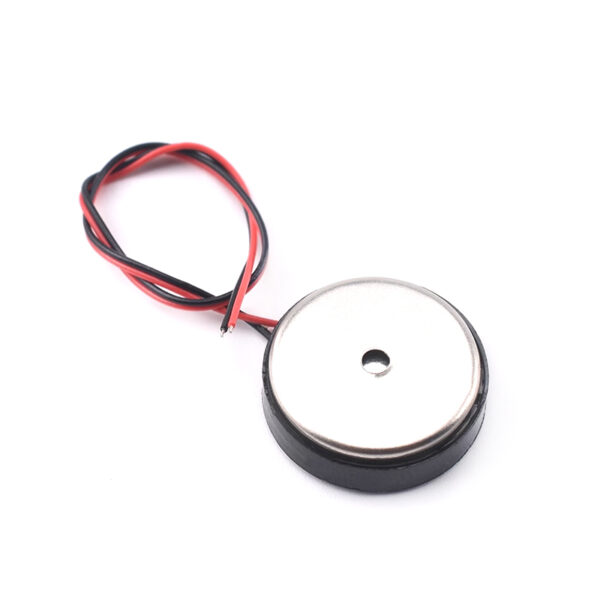

16mm bone conduction Speaker
Rated Input Power:0.2W
Maximum Power:0.5W
Resistance: 8Ω
Frequency Range: 0HZ – 20HZ
Sound Pressure Level: 88dB~+3dB
Operating Temperature:-25℃~+50℃
Storage Temperature:-25℃~+55℃
Weight: 2.5 grams

Note: These are sold as a twin pack

	Check Out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc
	Hackaday serves up Fresh Hacks Every Day from around the Internet.
	Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
	Where the world builds software
	Raspberry Pi Foundation: What would you like to make today?
	Arduino’s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
	Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:	There may be slight size deviations due to manual measurement and different measuring methods and tools. The picture may not reflect the actual colour of the item because of different photography lights, angles and display monitors.

Weight	0.010 kg
Dimensions	6 × 5 × 1 cm
Speaker Size	13mm 8Ω, 15mm 8Ω, 16mm 8Ω bone conduction speaker, 18mm 8Ω, 18mm 8Ω with 1.25mm plug, 20mm 8Ω, 23mm 8Ω, 25mm 8Ω
