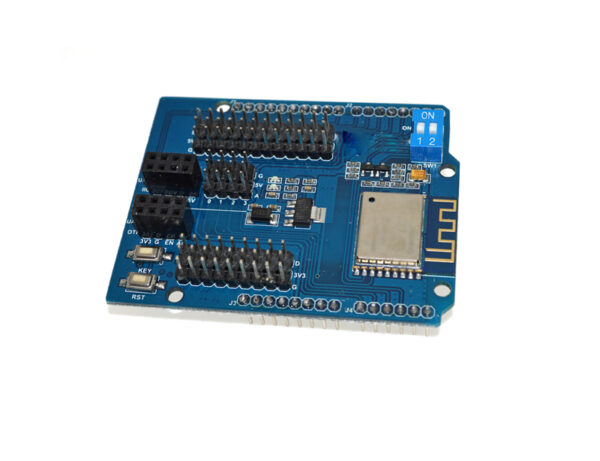

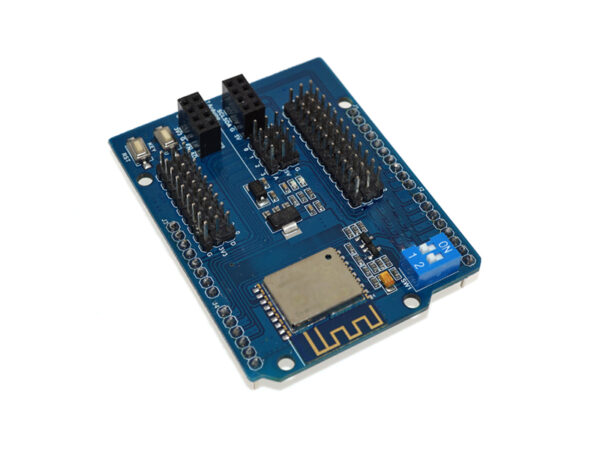

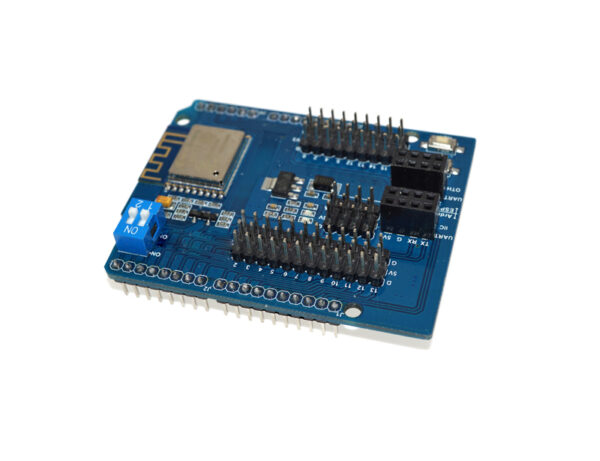

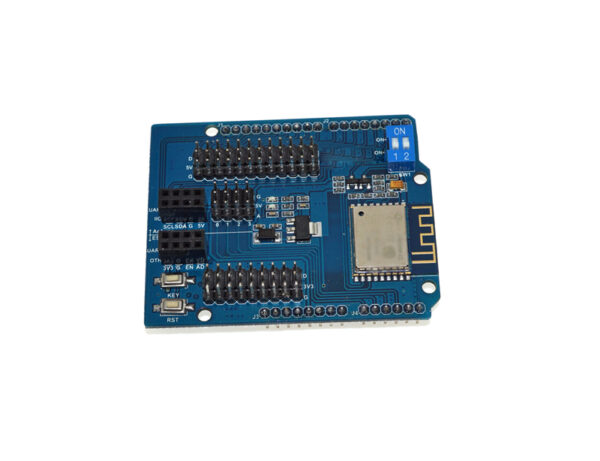

UNO R3 ESP8266 ESP-13 Web Sever Serial WiFi Shield

UNO R3 ESP8266 ESP-13 Web Sever Serial WiFi Shield

Name: UNO R3 ESP8266 ESP-13 Web Sever Serial WiFi Shield
SKU: TS-P535
Availability: InStock

Note: The ESP8266 Module can only connect with the 3.3V system directly. If you want to connect it with a 5V system, you need a Logic Level

$21.95

2 in stock

This item: UNO R3 ESP8266 ESP-13 Web Sever Serial WiFi Shield

2 in stock

$21.95

L298P 4A Dual Channel Motor Driver Uno R3

1 × L298P 4A Dual Channel Motor Driver Uno R3

2 in stock

$24.95

L293D Motor Drive Shield Expansion Board Mega2560 UNO R3

1 × L293D Motor Drive Shield Expansion Board Mega2560 UNO R3

4 in stock

$8.95

UNO R3 Sensor Shield V5.0

1 × UNO R3 Sensor Shield V5.0

3 in stock

UNO R3 ProtoShield With SYB-170 Mini Breadboard Base

1 × UNO R3 ProtoShield With SYB-170 Mini Breadboard Base

2 in stock

$6.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $20.85
Qty Discount	10 +	8% $20.19

SKU: TS-P535

Categories:Arduino Shield, Bluetooth-WIFI Expansion Shield

Description

Additional information

Applications

Support & Utility

Q & A

The UNO R3 ESP8266 ESP-13 Web Sever Serial WiFi Shield Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.

Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning you can hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)!

This module has a powerful enough onboard processing and storage capability to be integrated with sensors and other application-specific devices through its GPIOs with minimal development upfront and loading during runtime.

The ESP8266 supports APSD for VoIP applications and Bluetooth coexistence interfaces. Its self-calibrated RF allows it to work under all operating conditions and requires no external RF parts.

Specifications:

Model: ESP8266MOD
Size(L x W x H): 70 x 50 x 20 mm
Serial Parity: None
Wireless transmission rate: 110-460800 bps
Serial data bits:5 / 6 / 7/8bits
WiFi current: Continuous transmission: ≈70mA (200mA MAX),
Serial port stop bits: 1/2 bit
Standby: <200uA
The working temperature: -40 ℃ ~ + 125 ℃
Support for: Wireless 802.11 b/g/n standards
STA/AP two modes of operation
Standard TCP/UDP Server and Client
support:1200 / 2400 / 4800 / 9600 / 19200 / 38400 /57600 / 74800 /115200 bps
Note: The ESP8266 Module can only be connected directly to the 3.3V system. You need a logic level to connect it to a 5V system.

Package Includes:

ESP8266 ESP-13 Web Sever Serial WiFi Shield
