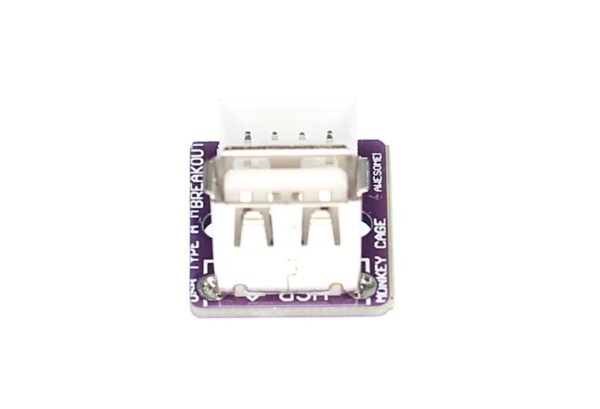

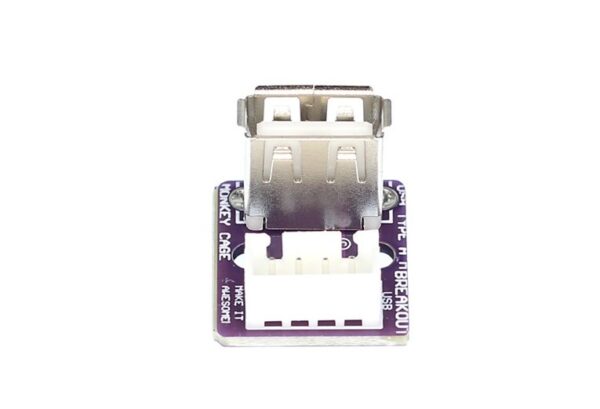

USB A Vertical Female Flange Vertical Header + Dupont Board

• Specifications:

• PCB: 18.6mm x 19.7mm x 1.54mm
• Overall Size: 18.6mm x 19.7 x 16mm
• Mounting Holes: M3 x 2

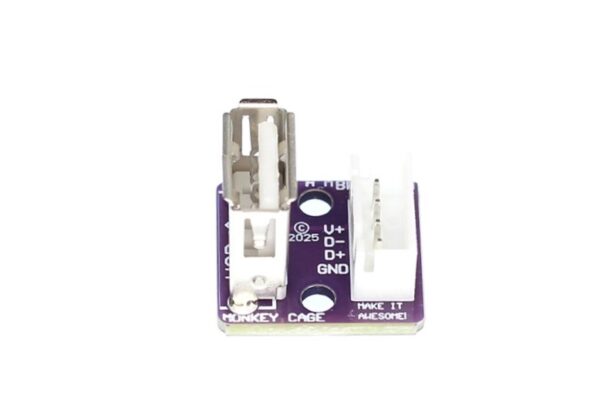

• Breaks out the four main USB pins: XH2.54 Vertical
• Pitch 2.54mm
• VCC (5V) – power
• D- (Data −)
• D+ (Data +)
• GND (Ground)

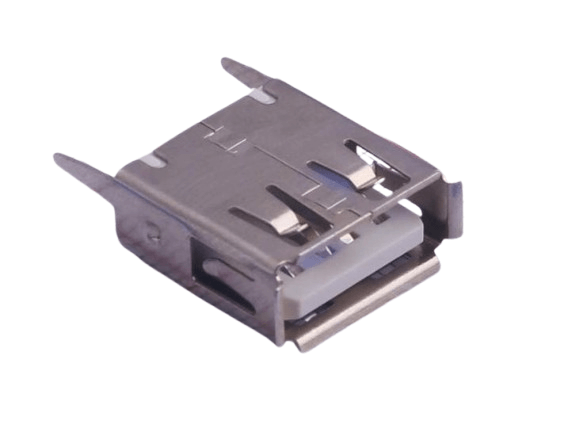

• USB Connector:
• Model: USB 2.0
• Number of Contacts: 4P
• Gender: Female
• Mounting Type: Vertical
• Current Rating: 1.5A
• Voltage Rating: 30V
• Operating Temperature -25℃~+85℃
• Connector Type Type-A
• Connect-Disconnect Life 5,000 Cycles

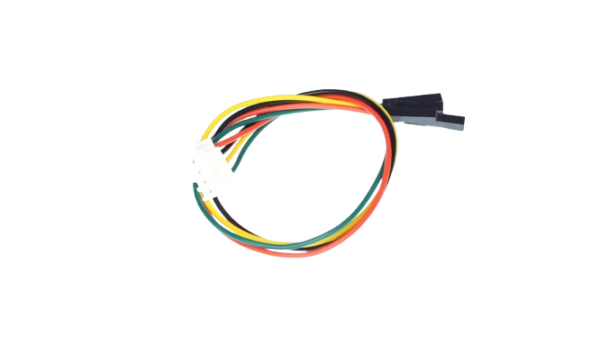

• Cable: XH2.54 to 4 Single Dupont
• Length: 20cm
• Connector Type: JST XH2.54  Dupont 2.54
• Wire: UL-1007 AWG-26 PVC 7×0.12ts 1.3mm
• Voltage Rating: 300v
• Current Capacity (Amps): 2–3 A short-term, 1–2 A continuous.
• Chassis wiring / free air 2.2–3 A
• Bundled inside a cable/enclosure: 1–2 A
• Short runs (<1 m), low ambient temp: ~3 A possible
• Longer runs or continuous current:  Keep ≤ 2 A to avoid overheating

Package Includes:

• USB A Vertical Female Flange Vertical Header with Dupont Breakout Board

Development  Resources: Demo Codes, Schematics, Datasheets, Etc

1. There may be slight size deviations due to manual measurement and variations in measurement.
2. Due to variations in photography lighting and angles, the picture may not accurately reflect the actual colour of the item.
