USB Male Female To Screw Terminal Connector
Easy to use: No soldering required. Use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
Price range: $6.15 through $9.15
This item: USB Male Female To Screw Terminal Connector
Price range: $6.15 through $9.15
Price range: $6.15 through $9.15
Description
Additional information
Applications
Support & Utility
Q & A
USB Male Female To Screw Terminal Connector Easy to use: No soldering required. Use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
Specifications:

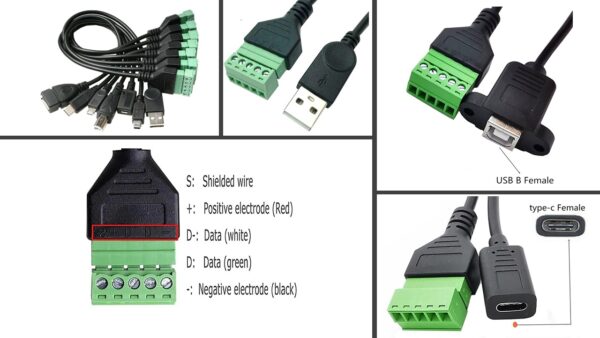

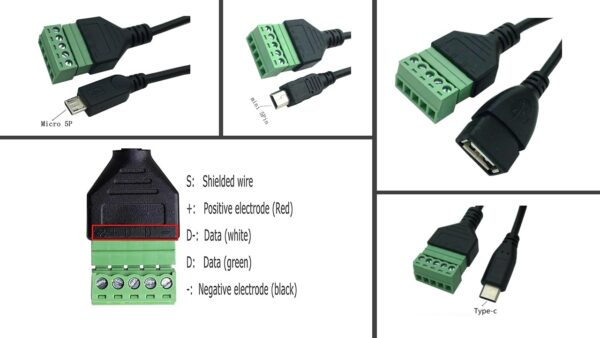

- Plug: Type-c, Micro, Mini Type A, Type B
- Terminals: 5P pluggable terminals
- Material: Metal, PVC
- Colour: Black, Green, Silver
- Line Diameter: OD4.0mm
- Length: About 30cm
- Terminal screw fixed

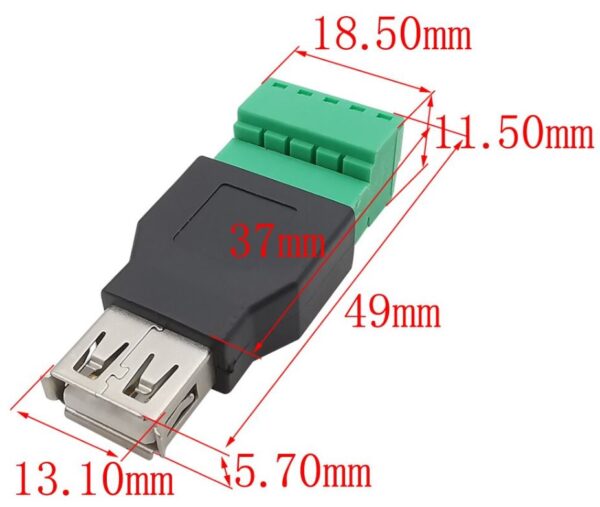

USB A Male/Female to 3.5mm 5 Pin Screw Terminal Block.
- Material: Metal, PVC
- Gender: Male / Female
- Colour: Black, Green, Silver

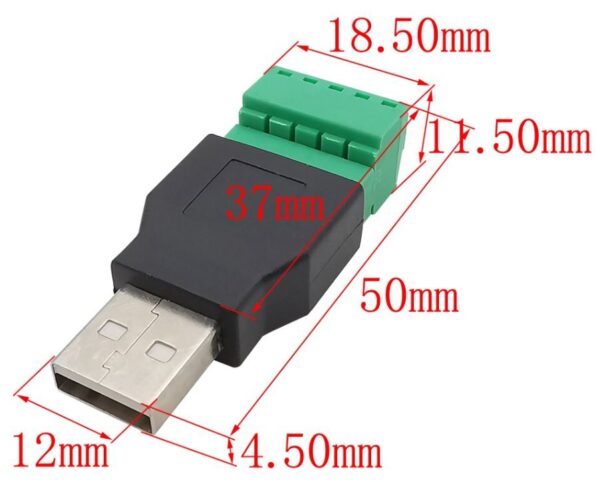

- Male: Appr. 50mm
- Female: 49mm
Package Included: 1 x USB Male Female To Screw Terminal Connector of your Selection.
Check out our On Sale and Clearance Items
Development Resources: Demo Codes, Schematics, Datasheets, Etc
Hackaday serves up Fresh Hacks Every Day from around the Internet.
Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
Where the world builds software
Raspberry Pi Foundation What would you like to make today?
Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
1. There may be slight size Deviations due to manual Measurement, different Measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different Photographing lights, angles and display monitors.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | USB A Female to 5pin Case terminal block, USB A Female to 5pin terminal block, USB A to 5pin Case terminal block, USB A to 5pin terminal block, USB B Female to 5pin terminal block, USB C Female to 5pin terminal block, USB C to 5pin terminal block, USB Micro to 5pin terminal block, USB Mini to 5pin terminal block |
