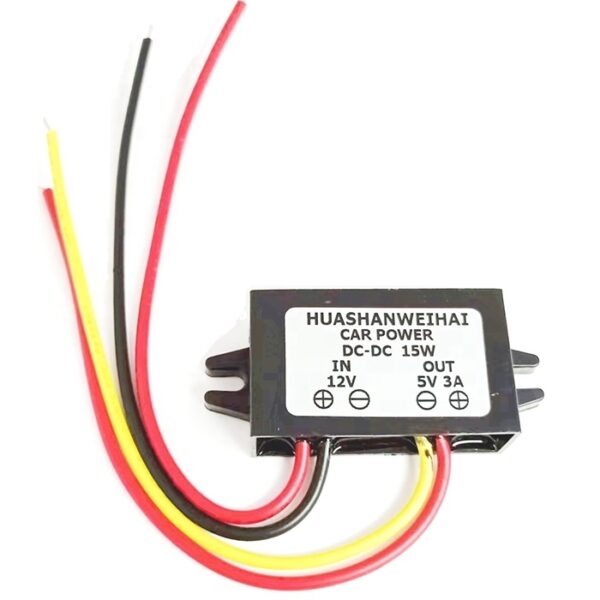

Waterproof DC-DC 12V Step Down 5V Car Power Supply 3A

3A of stable output, ideal for automotive and outdoor use. Its sealed design ensures durability in harsh conditions, making it perfect for powering dash cams, GPS units, and USB devices directly from a 12V battery source.

$11.35

20 in stock

Add to Wishlist
Waterproof DC-DC 12V Step Down huashanweihai
This item: Waterproof DC-DC 12V Step Down 5V Car Power Supply 3A

20 in stock

$11.35
$11.35
702530 Lithium ion polymer Battery (LiPo) (3.7V 500mAh)
$9.99
2 in 1 Voltmeter 5V USB Charger Step-Down Power Module
$6.95
Duracell Procell Constant Alkaline 9V Batteries PP3
$6.25
Qty Discount
4 - 9 5%
10 + 8%
SKU: TS-P587
Description
Additional information
Applications
Support & Utility
Q & A
Waterproof DC-DC 12V Step-Down 5V Car Power Supply 3A converter regulator step down for Car, GPS, Smartphone and IoT Projects.

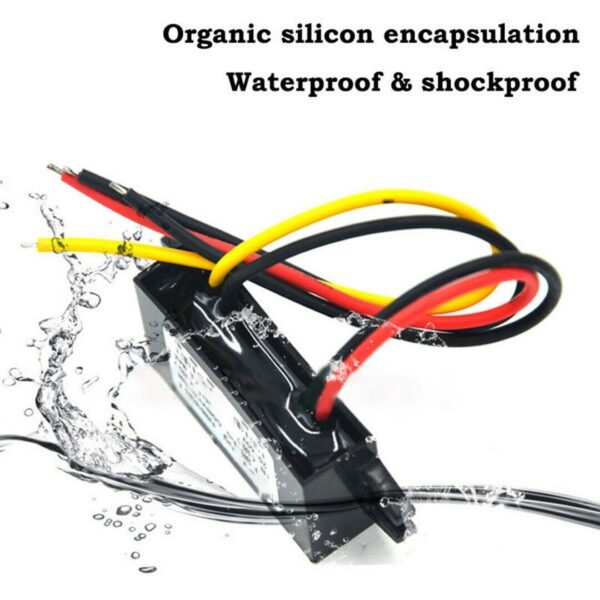

The whole sealing filling process comprises a fire-retardant plastic case and imported high-heat conductive silica gel.



Feature: Specifications:
  • Type: DC-DC Converter
  • Waterproof
  • Non-isolated
  • With overload/over-current protection
  • With over/low voltage protection
  • Stable performance.



  • Current Brand: Huashanweihai

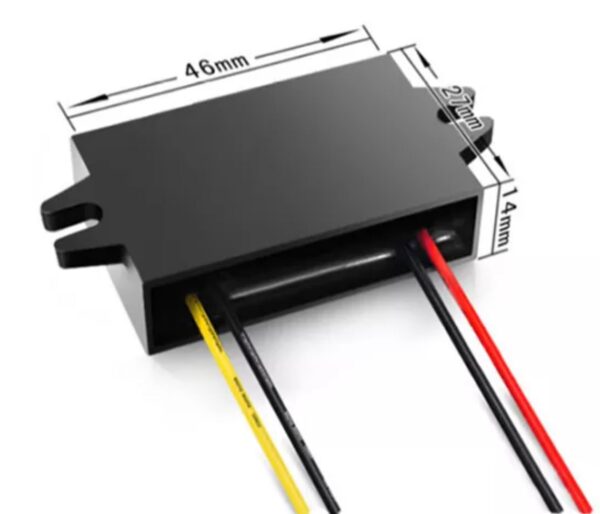

  • Shape Size: approx. 46*26*14mm
  • Cable Length: approx. 130-140mm
  • Input Voltage: DC 12V (have been tested 24V)
  • Output Voltage: DC 5V
  • Output Current: 3A
  • Max Output Power: 15W
  • Conversion Efficiency: 96% Max
  • Working Temperature: -20℃ – +80℃
  • Heat Dissipation Mode: Natural heat dissipation
  • Waterproof Grade: IP67
  • Note: Brand names may vary from order to order, but the specifications remain the same.



Package Includes:
  • 1 x Waterproof DC-DC 12V Step Down 5V Car Power Supply 3A



www.monkeycage.com.au Check out our Clearance and on-sale items.

Development  Resources: Demo Codes, Schematics, Datasheets, Etc
Tempero systems Hackaday Hackaday serves up fresh hacks every day from around the Internet.
tempero systems-Instructables Instructables is a community for people who enjoy creating and sharing their projects. Explore, share, and do your next project with us!
Tempero Systems-Github Where the world builds software
tempero systems-Raspberry Pi Raspberry Pi Foundation: What would you like to make today?
tempero systems-Arduino
Arduino’s mission is to enable anyone to enhance their lives through Accessible electronics and Digital Technologies.
tempero systems-Wikipedia Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
  1. There may be slight size deviations due to manual measurement and variations in measurement.
  2. Due to variations in photography lighting and angles, the picture may not accurately reflect the actual colour of the item.
Weight 0.040 kg
Dimensions 4.7 × 2.7 × 1.6 cm
