Waterproof Type C USB Fast Charging port

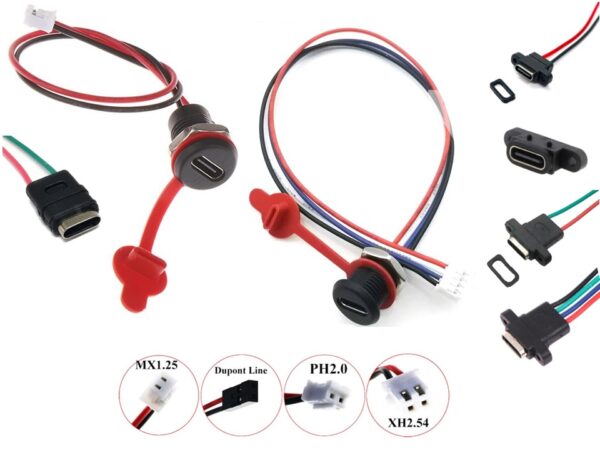

Waterproof USB Type-C connector with cables, They are great if you need to keep your Device Sealed and can charge it up.
Price range: $2.45 through $6.15
This item: Waterproof Type C USB Fast Charging port
Price range: $2.45 through $6.15
Price range: $2.45 through $6.15
Description
Additional information
Applications
Support & Utility
Q & A
Waterproof Type C USB Fast Charging port, Large range IPX5 to IPX8 with many Wire and connector Options, Bare wire, and MX1,25, PH2.0, XH2.54, DuPont 2 or 4 pins.
They are great if you need to keep your Device Sealed and can charge it up.

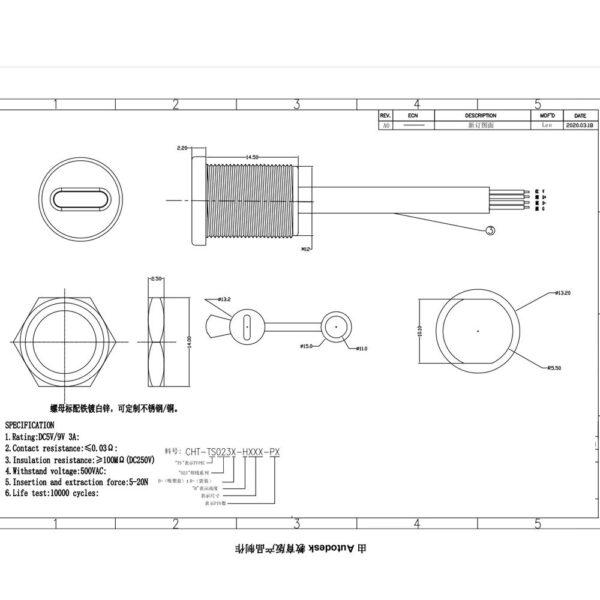

Specifications: 11M Mount Hole Type
- IPX8
- Silicon Plug Cap
- Rated:5/9v DC 5.0A
- Contact Resistance: <0.03Ohm
- Insulation Resistance: >100M Ohm (DC 250V)
- Withstand Voltage: 500Vac
- Insertion – Extraction force” 5-20N
- LiveTest: 10000 Cycles.
- MX1,25, PH2.0, XH2.54, DuPont Line Bear Tinned Wire.
- M11 Locking Nut
- Pin: 2 or 4

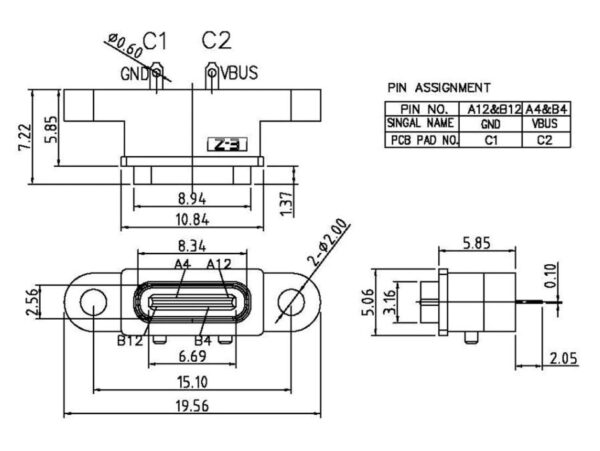

Specifications: Panel Mount type /With Mounting Holes
- IPX8
- Rated:5/9v DC 3.0A
- Contact Resistance: <0.03Ohm
- Insulation Resistance: >100M Ohm (DC 250V)
- Withstand Voltage: 500Vac
- Insertion – Extraction force” 5-20N
- LiveTest: 5000 Cycles.
- MX1,25, PH2.0, XH2.54, DuPont Line Bear Tinned Wire.
- Pin: 2 or 4

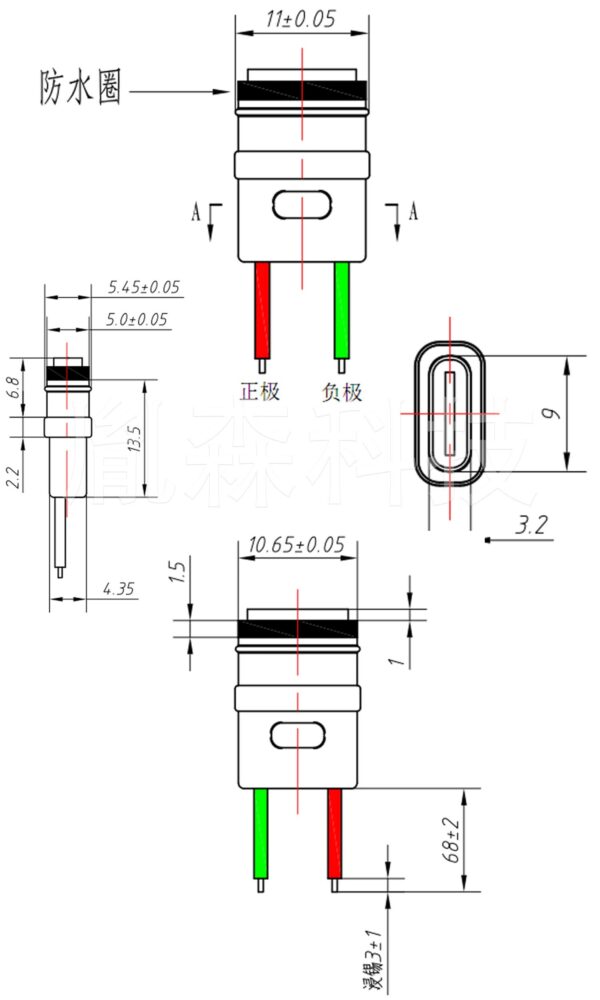

Specifications: Push In Panel Mount type
- IPX7 with Silica Gel Ring
- IPX5 Without Silica Gel Ring
- Rated:5/9v DC 3.0A
- Contact Resistance: <0.03Ohm
- Insulation Resistance: >100M Ohm (DC 250V)
- Withstand Voltage: 500Vac
- Insertion – Extraction force” 5-20N
- LiveTest: 5000 Cycles.
- MX1,25, PH2.0, XH2.54, DuPont Line Bear Tinned Wire.
- Pin: 2 or 4
Note: Silicon Plug Cap is random colour.
Package Included: Waterproof Type C USB in your selection
Check out our On Sale and Clearance Items
Development Resources: Demo Codes, Schematics, Datasheets, Etc
Hackaday serves up Fresh Hacks Every Day from around the Internet.
Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
Where the world builds software
Raspberry Pi Foundation What would you like to make today?
Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photographing lights, angles and display monitors.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | TYPE-C 2P Mount Female, TYPE-C 2P Mount Female 4.5cm With Ring Tinned Cable, TYPE-C 2P Mount Female Dupont 15cm Cable, TYPE-C 2P Mount Female MX1.25 15cm Cable, TYPE-C 2P Mount Female PH2.0 15cm Cable, TYPE-C 2P Mount Female XH2.54 15cm Cable, TYPE-C 2P Socket Female With Cap 15cm PH2.0, TYPE-C 2P Socket Female With Cap PH2.0 15cm Cable, TYPE-C 2P USB 3.1 Mount Female with ring 7cm Tinned Cable, TYPE-C 2P USB 3.1 Socket Female 7cm Tinned Cable, TYPE-C 4P Socket Female With Cap 15cm PH2.0 Cable, TYPE-C 4P Socket Female With Cap 15cm Tinned Cable, TYPE-C 4P USB 3.1 Female 8cm Tinned Cable, TYPE-C 4P USB 3.1 Mount Female With Cap 8cm Tinned Cable |
