Mega2560 + WiFi R3 USB-TTL CH340G ATmega2560 ESP8266 Memory 32Mb

WiFi R3 ATmega2560 + ESP8266 32Mb Memory

Name: WiFi R3 ATmega2560 + ESP8266 32Mb Memory
SKU: TS-P1344
Availability: InStock

The convenient solution for the development of new projects that require Uno and WiFi via USB. You can update sketches and firmware for ATmega2560 and ESP8266

$39.95

1 in stock

This item: WiFi R3 ATmega2560 + ESP8266 32Mb Memory

1 in stock

$39.95

Nano V3.0 ATmega328P CH340G 5V Non Soldered Pins

1 × Nano V3.0 ATmega328P CH340G 5V Non Soldered Pins

9 in stock

$11.95

Pro Micro Leonardo - 5V/16MHz -micro-USB

1 × Pro Micro Leonardo - 5V/16MHz -micro-USB

3 in stock

$12.95

Ethernet W5100 shield

1 × ~~Ethernet W5100 shield~~

Out of stock

$19.95

Arduino UNO R3 ATmega328P CH340G Micro USB Connector

1 × Arduino UNO R3 ATmega328P CH340G Micro USB Connector

16 in stock

$12.55

Title	Qty	Discount
Qty Discount	4 - 9	5% $37.95
Qty Discount	10 +	8% $36.75

SKU: TS-P1344

Categories:Arduino Boards, Mega 2560

Description

Additional information

Applications

Support & Utility

Q & A

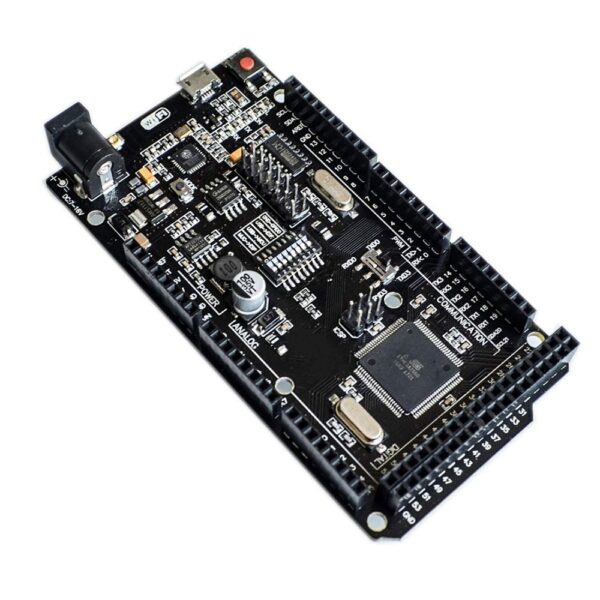

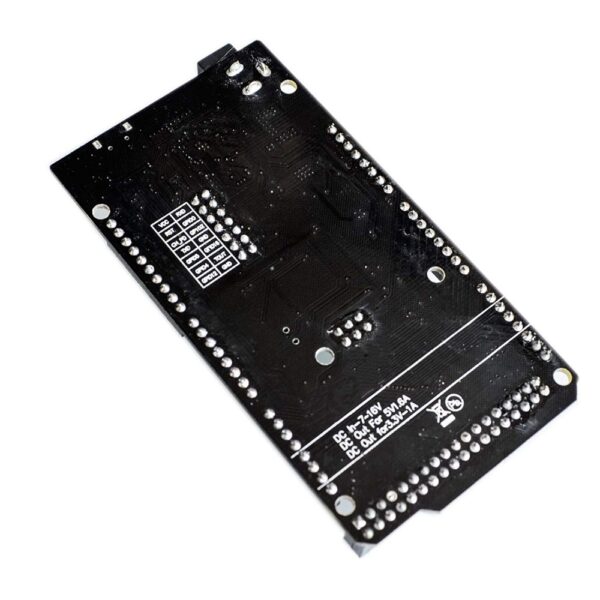

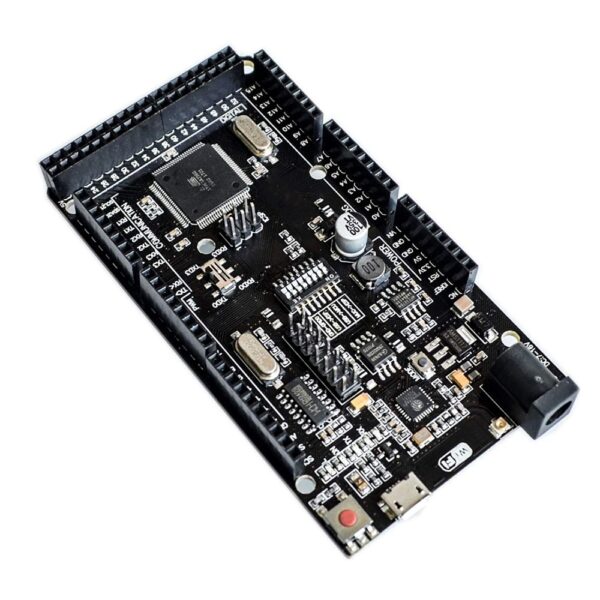

WiFi R3 ATmega2560 + ESP8266 (32MB) is a development board that combines the Mega 2560 and the ESP8266 WiFi module into one compact unit. It’s ideal for projects that require both powerful I/O (from the Mega 2560) and wireless capabilities (from the ESP8266).

Specifications:

Microcontroller: ATmega2560 (Arduino Mega compatible)
WiFi Module: ESP8266 (32Mb flash, ≈ 4MB)
USB-to-Serial: CH340G
Clock Speed: 16 MHz (ATmega2560)
Operating Voltage: 5V (ATmega2560), 3.3V (ESP8266)
Flash Memory:
ATmega2560: 256 KB
ESP8266: 32Mb (4MB)
SRAM: 8 KB (ATmega2560)
EEPROM: 4 KB (ATmega2560)
Digital I/O Pins: 54 (15 PWM)
Analog Inputs: 16
Communication: UART, I2C, SPI
Power Supply: 7–12V (DC jack or VIN)

Package Includes:

WiFi R3 ATmega2560 + ESP8266 32Mb Memory
