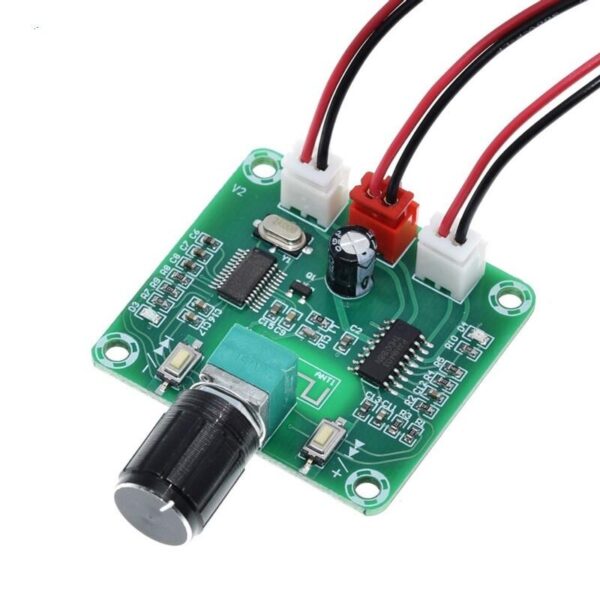

XH-A158 PAM8403 Bluetooth 5.0 Power Amplifier Board

XH-A158 PAM8403 Bluetooth 5.0 Power Amplifier Board

Name: XH-A158 PAM8403 Bluetooth 5.0 Power Amplifier Board
SKU: TS-P1315
Availability: InStock

Stereo audio amplifier with very compact dimensions and volume control. Connected to a pc, notebook or smartphone, it can drive two small speakers with excellent HI-FI quality.

$6.95

5 in stock

This item: XH-A158 PAM8403 Bluetooth 5.0 Power Amplifier Board

5 in stock

$6.95

VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3

VHM-314 Type C Bluetooth 5.0 MP3 Decoder Board Audio Receiver

1 × VHM-314 Type C Bluetooth 5.0 Audio Receiver Board MP3

5 in stock

$8.95

PAM8403 DC 5V Mini Class D 2x3W USB Power Amplifier Board

1 × PAM8403 DC 5V Mini Class D 2x3W USB Power Amplifier Board

10 in stock

$4.95

YX5300 UART TTL Serial Control MP3 Music Player

YX5300 UART TTL Serial MP3 Music Player Module

1 × YX5300 UART TTL Serial Control MP3 Music Player

5 in stock

$7.95

PAM8403 DC 5V Mini Class D 2x3W Amplifier Board

1 × PAM8403 DC 5V Mini Class D 2x3W Amplifier Board

4 in stock

$4.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $6.60
Qty Discount	10 +	8% $6.39

SKU: TS-P1315

Categories:Amplifier modules, Digital Amplifier

Description

Additional information

Applications

Support & Utility

Q & A

The XH-A158 Bluetooth 5.0 Power Amplifier Board is a compact and versatile audio solution. Its dual channels deliver 3W each, and the PAM8403 chip is employed for efficient amplification.

The low-power design is ideal for DIY wireless speaker projects, ensuring precise sound reproduction and ease of integration with various audio devices.

Specifications:

Model: XH-A157
IC: PAM8403
Low voltage power supply: 3 to 5VDC

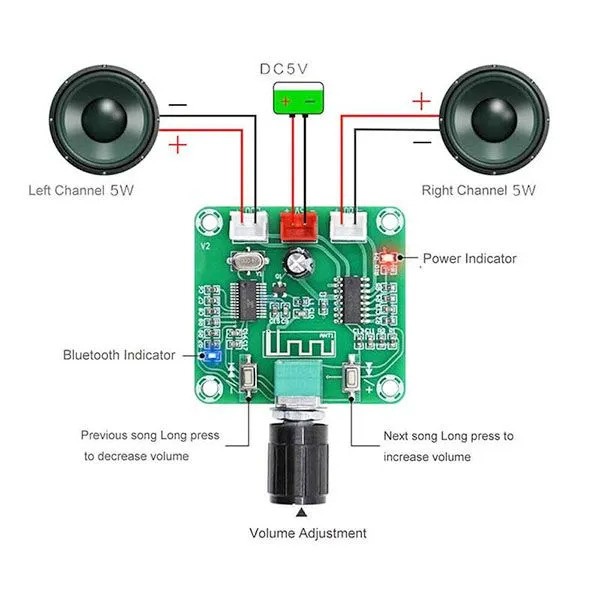

Audio input: Bluetooth
Volume Control Knob
Two stereo channels: 3+3W
Class: Class-D or Class-AB
3W Output at 10% THD with a 2Ω Load @ 5VDC
3W Output at 10% THD with a 4Ω Load @ 5VDC
Speaker impedance: 2/4 Ω
Efficiency up to 90% with Class-D Mode
Thermal shutdown
Supplied with 3 Cables

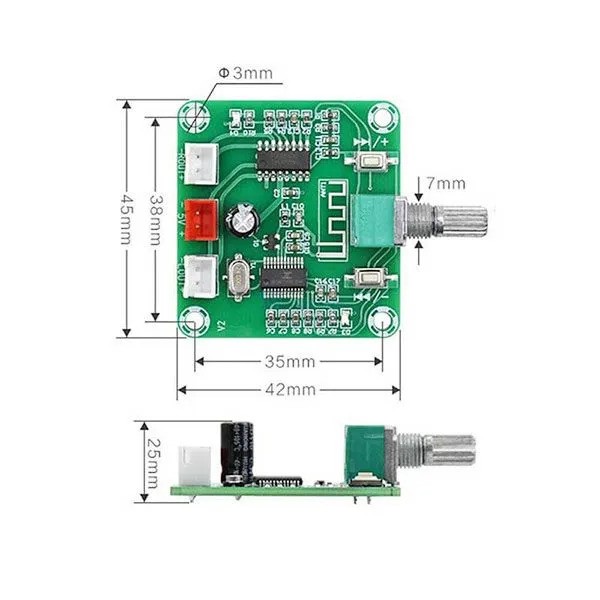

Dimensions: 45 x 42 x 25mm
Installation hole distance: 38 * 35mm

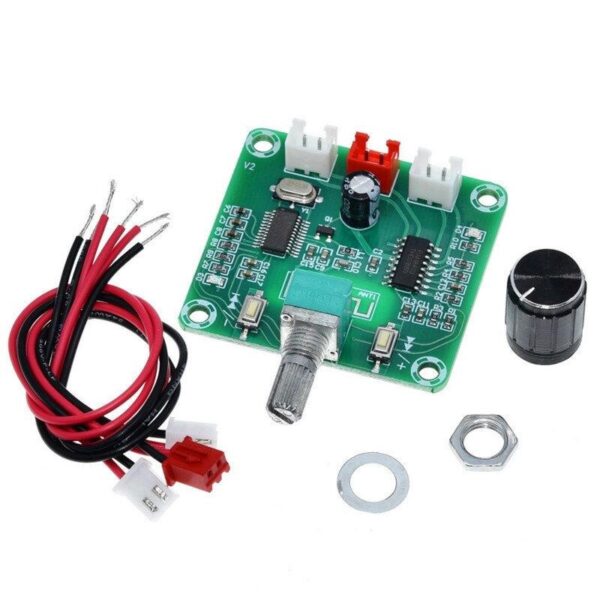

Package Includes:

XH-A158 PAM8403 Bluetooth 5.0 Power Amplifier Board
3 Cables
Knob + nut and washer.
