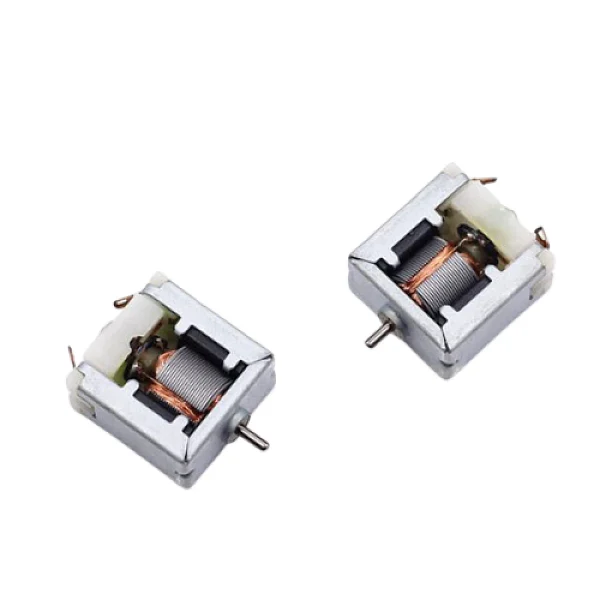

020 3V Micro DC Motor 15000RPM

Name: 020 3V Micro DC Motor 15000RPM
SKU: 55422
Availability: InStock

R130 Double Shaft Micro DC Motor is a compact DC motor featuring dual shafts, making it ideal for applications requiring simultaneous mechanical outputs

This item: 020 3V Micro DC Motor 15000RPM

MG90S 180 degrees Plastic Gear High Torque Micro Servo

1 × MG90S 180 degrees Plastic Gear High Torque Micro Servo

5 in stock

$11.75

TT DC Motor Bracket

1 × TT DC Motor Bracket

18 in stock

$2.95

Servo Motor SG-5010 - 180 degrees

1 × Servo Motor SG-5010 - 180 degrees

3 in stock

$11.75

Title	Qty	Discount
Qty Discount	4 - 9	5% $3.09
Qty Discount	10 +	8% $2.99

SKU: N/A

Categories:020 motor series, DC Brush Motor, Motors - Servo's

Description

Additional information

Applications

Support & Utility

Q & A

The 020 3V Micro DC Motor is a tiny, low-voltage DC motor commonly used in small electronics, robotics, toys, and DIY projects. Its compact size makes it ideal for applications with limited space.

Specifications:

Bear Solder Tabs
Single Shaft
Rated Voltage: 3V
Voltage range:1.5v to 5V
Test voltage, speed, and current
1.5V 6500RPM 60mA
3.0V 13000RPM 80mA
4.2V 18600RPM 90mA
4.5V 19800RPM 95mA
6.0V 25500RPM 110mA (No Load)
Operating Current: Approximately 80 mA@ 3V
Stall: Around 200–300 mA @ 3V
Operating Temperature: -10°C ~ +60°C
Body Size: 18 * 19 * 9.7mm
Shaft Size: 1.5mm diameter
Output shaft length: 3.8mm
Weight: 9.8 grams

Package Includes:

020 3V Micro DC Motor 15000RPM
