2.4GHz Embedded IPEX Super Thin Antenna
2.4GHz Embedded IPEX Super Thin Antenna Long Range Receiver Super Thin These are small in size and reliable in performance.
$4.95
This item: 2.4GHz Embedded IPEX Super Thin Antenna
$4.95
$4.95
Description
Additional information
Applications
Support & Utility
Q & A
2.4GHz Embedded IPEX Super Thin Antenna Long Range Receiver Omnidirectional. These are small in size and reliable in performance.
Stable Signal in sending and receiving, excellent VSWR, Compatible with various devices

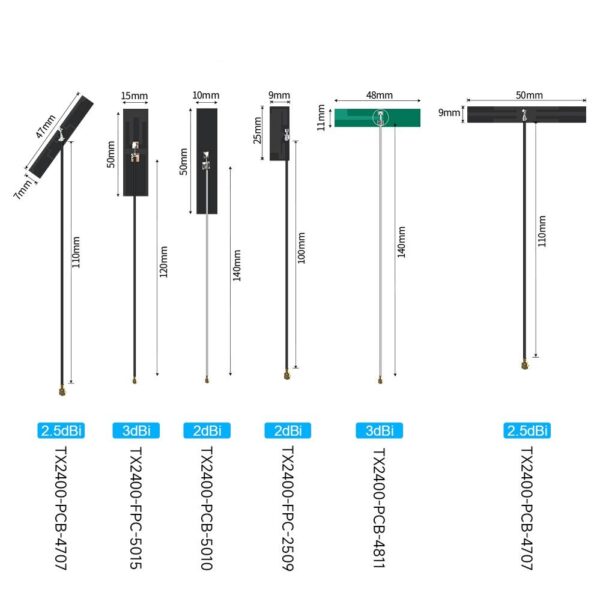

Specifications:
- Radiation Direction: Omnidirectional
- Band 2.4GHz
- VSWR: ≤1.5
- Input Impedance: 50Ω
- Power: 2W
- RF1.13 Coaxial Cable
- Connector Type: I-PEX
- 3M Adhesive
- Working Temperature: -30℃~+70℃

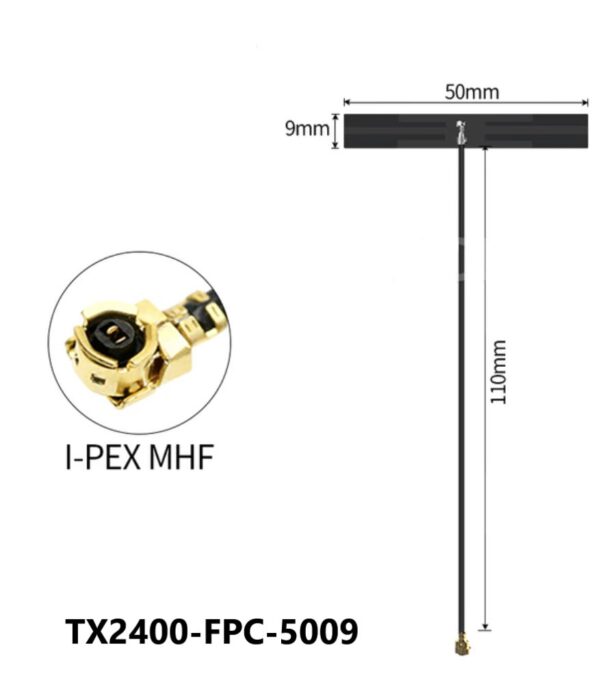

- TX2400-FPC-5009
- Gain: 2.5 dbi
- Size: 50*9mm
- Thickness: 0.22mm
- Flexible-Bendable
- Cable length: 110mm

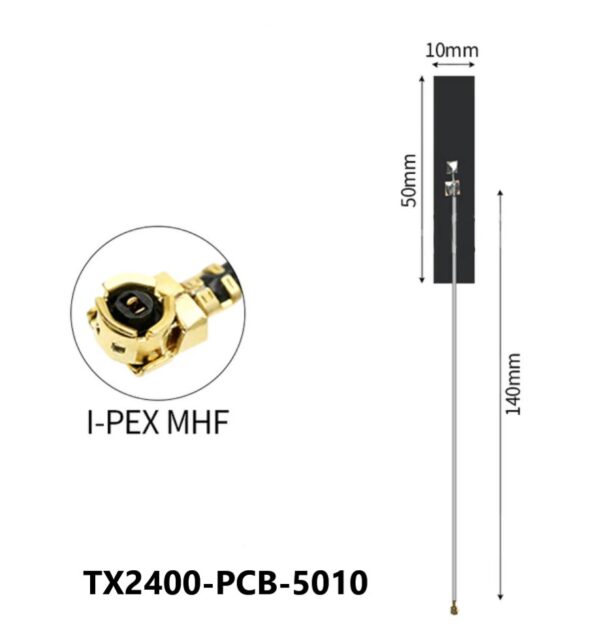

- TX2400-PCB-5010
- Gain: 2 dbi
- Size: 50*10mm
- Thickness: 0.88mm
- Inflexible-Unbendable
- Cable length: 140mm

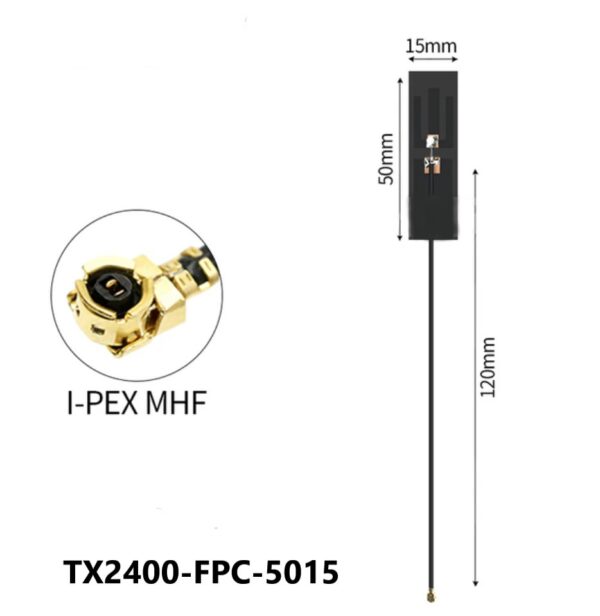

- TX2400-FPC-5015
- Gain: 3 dbi
- Size: 50*15mm
- Thickness: 0.22mm
- Flexible-Bendable
- Cable length: 120mm

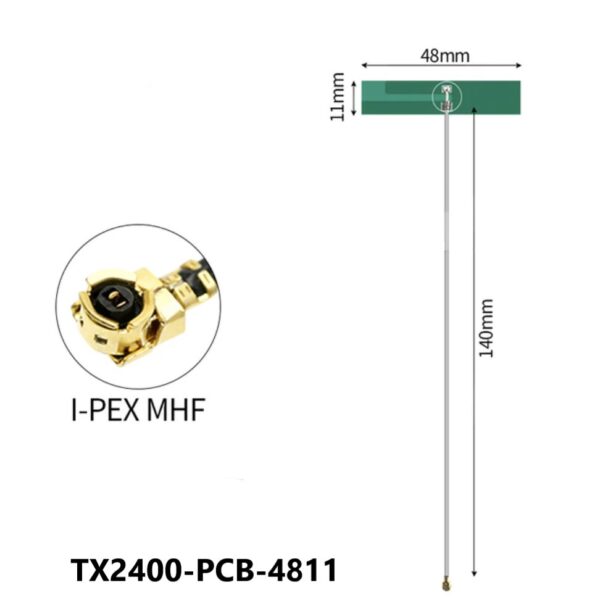

- TX2400-PCB-4811
- Gain: 3 dbi
- Size: 48*11mm
- Thickness: 0.88mm
- Inflexible-Unbendable
- Cable length: 140mm

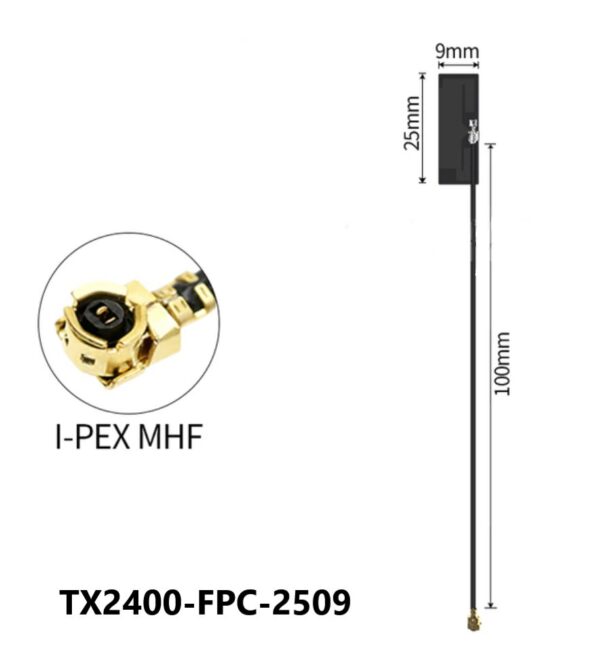

- TX2400-FPC-2509
- Gain: 2 dbi
- Size: 25*9mm
- Thickness: 0.22mm
- Flexible-Bendable
- Cable length: 100mm

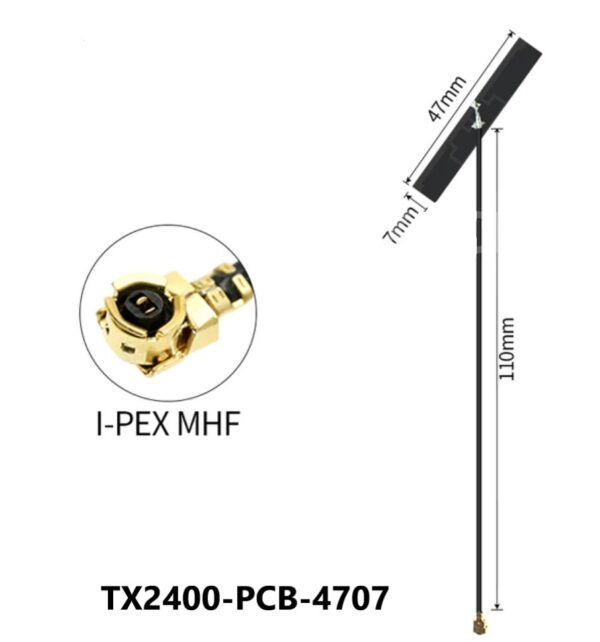

- TX2400-PCB-4707
- Gain: 2.5 dbi
- Size: 47*7mm
- Thickness: 0.88mm
- Inflexible-Unbendable
- Cable length: 110mm
Package Included: 1 x 2.4GHz Embedded IPEX Super Thin Antenna
Check out our On Sale and Clearance Items
Development Resources: Demo Codes, Schematics, Datasheets, Etc
Hackaday serves up Fresh Hacks Every Day from around the Internet.
Instructables is a community for people who like to make things. Explore, share, and do your next project with us!
Where the world builds software
Raspberry Pi Foundation: What would you like to make today?
Arduino‘s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
Wikipedia is a free online encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual colour of the item because of different photography lights, angles and display monitors.
| Weight | 0.010 kg |
|---|---|
| Dimensions | 4 × 6 × .5 cm |
| Antenna | TX2400-FPC-2509, TX2400-FPC-5009, TX2400-FPC-5015, TX2400-PCB-4707, TX2400-PCB-4811, TX2400-PCB-5010 |
