61 Bit WS2812B 5050 RGB LED Board 86mm

Name: 61 Bit WS2812B 5050 RGB LED Board 86mm
SKU: TS-P991
Availability: InStock

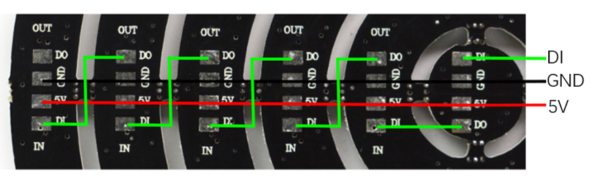

In addition to power and ground, these provide connections for data-in, data-out, clock and sometimes a strobe signal. These are connected in a daisy chain.

$19.95

1 in stock

This item: 61 Bit WS2812B 5050 RGB LED Board 86mm

1 in stock

$19.95

3W 200 Lumen White LED Lighting Module

1 × 3W 200 Lumen White LED Lighting Module

4 in stock

$5.95

WS2812 RGB 37 LED 68mm 4 Ring

1 × WS2812 RGB 37 LED 68mm 4 Ring

6 in stock

CJMCU-64 8x8 RGB LEDs WS2812 RGB Full-Color Driving Lights

1 × CJMCU-64 8x8 RGB LEDs WS2812 RGB Full-Color Driving Lights

5 in stock

$12.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $18.95
Qty Discount	10 +	8% $18.35

SKU: TS-P991

Categories:LED - diodes, displays, modules, LED modules

Description

Additional information

Applications

Support & Utility

Q & A

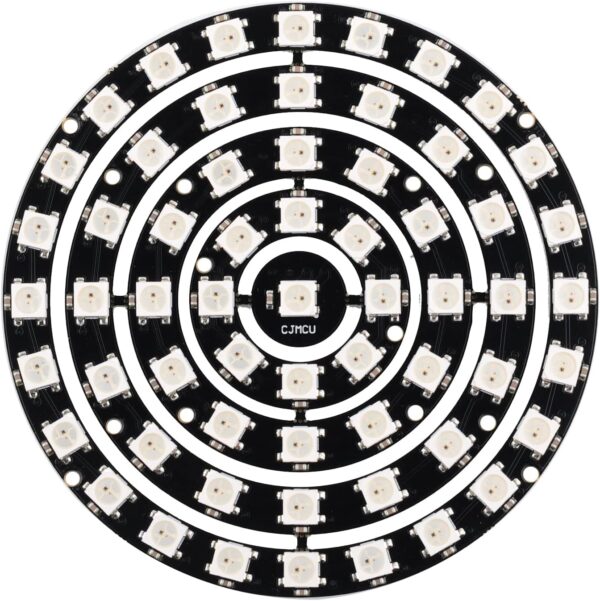

61 Bit WS2812B 5050 RGB LED Board 86mm contains 61 5050 WS2812 RGB LEDs on tiny circular PCBs.

The WS2812s are each addressable, as the driver chip is inside the LED. Each LED Ring has ~ an 18mA constant current drive, so the colour will be very consistent even if the voltage varies and requires 5V.

Specifications:

Chip: WS2812
LED Color: RGB
LED Type: 5050
LED Number: 61
Board Color: Black
Voltage: 5V

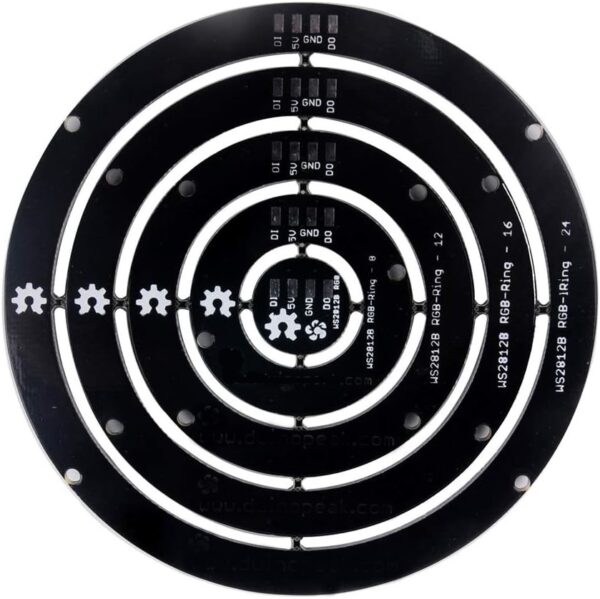

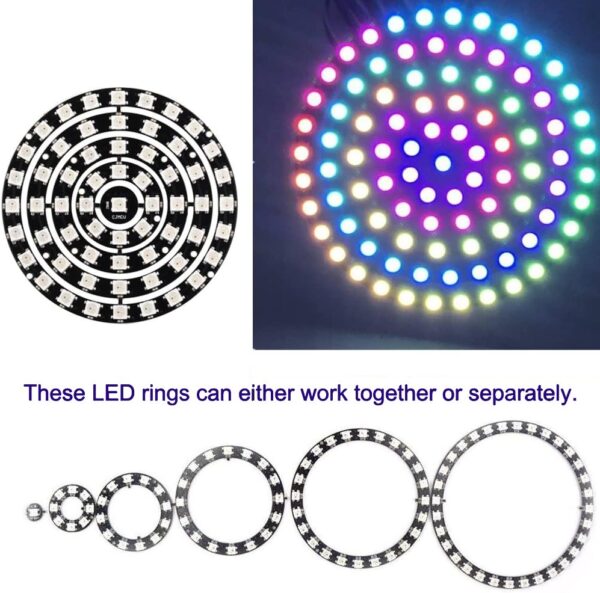

Ring with 24 WS2812B LEDs (86mm diameter)
Ring with 16 WS2812B LEDs (68mm diameter)
Ring with 12 WS2812B LEDs (50mm diameter)
Ring with 8 WS2812B LEDs (32mm diameter)
Ring with 1 WS2812B LED (14mm diameter)

Package Includes:

61 Bit WS2812B 5050 RGB LED Board 86mm

	Check Out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc Software Arduino IDE Download and install the FastLED Library (About how to install the library?)
