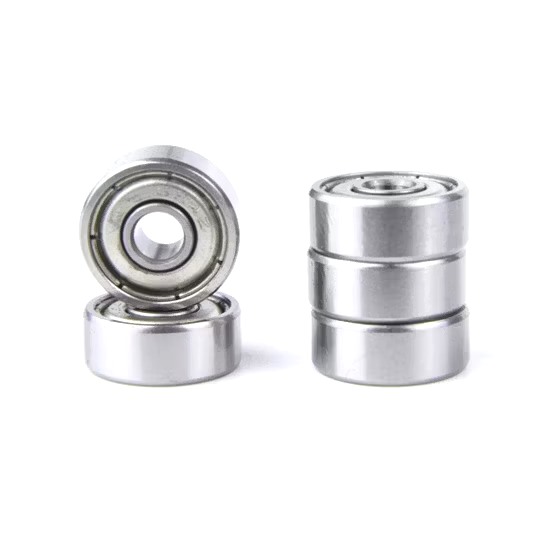

624-ZZ Economy Deep Groove Ball Bearing Metal Shields

624ZZ Ball Bearing (4x13x5)

Name: 624ZZ Ball Bearing (4x13x5)
SKU: 46132
Availability: InStock

624-ZZ is a high-quality, precision miniature ball bearing manufactured with both sides shielded with metal. Another durable and corrosion-resistant material, which helps to ensure its longevity and reliability in a wide range of applications

This item: 624ZZ Ball Bearing (4x13x5)

751643 Lithium ion polymer Battery (LiPo) (3.7V 430mAh)

751643 Lithium ion polymer Battery lithium polymer

1 × 751643 Lithium ion polymer Battery (LiPo) (3.7V 430mAh)

31 in stock

$8.95

Mini DC-DC 12-18V To 5V Step Down Power Supply Module 3A Buck Converter

Mini DC-DC 12-24V To 5V Step Down Power Supply

1 × Mini DC-DC 12-18V To 5V Step Down Power Supply Module 3A Buck Converter

41 in stock

$4.35

251020 Lithium ion polymer Battery (LiPo) (3.7V 25mAh)

1 × 251020 Lithium ion polymer Battery (LiPo) (3.7V 25mAh)

30 in stock

$7.35

2 in 1 Voltmeter 5V USB Charger Step-Down Power Module

1 × 2 in 1 Voltmeter 5V USB Charger Step-Down Power Module

12 in stock

$6.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $1.57
Qty Discount	10 +	8% $1.52

SKU: N/A

Categories:Bearing - Bushing, Power Control, Robotics, CNC, Printer Parts

Description

Additional information

Applications

Support & Utility

Q & A

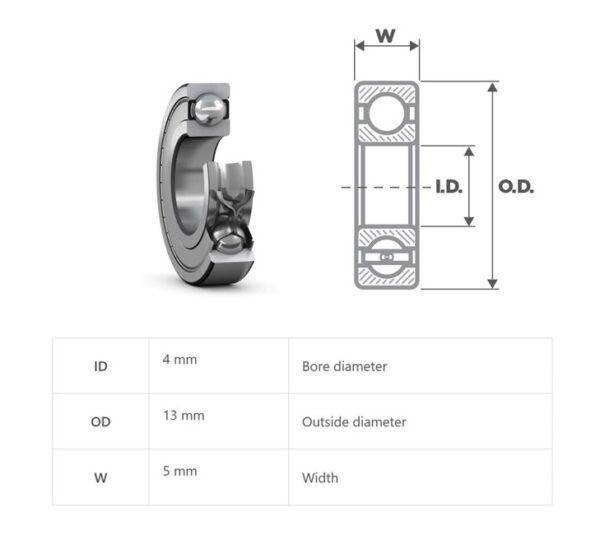

This 624zz Ball Bearing (4x13x5) is a metric deep groove ball bearing. The 624-ZZ inner diameter is 4 mm, the 624-ZZ outer diameter is 13 mm, and the 624-ZZ width is 5 mm.

Specifications:

Bearing Model: 624-ZZ
Also Known As: R-1340ZZ, MR624ZZ, 624-ZZ, SSR-1340ZZ, MR-624-ZZ, 624.2ZR, 624-2Z
Inner Diameter (d): 4 mm
Outer Diameter (D): 13 mm
Width (B): 5 mm
Min. Chamfer (r): 0.2 mm
Dynamic Load (Cr): 1.31 kn
Static Load (Cor): 0.49 kn
Max. Speed (Grease): 36000 RPM
Max. Speed (Oil): 45000 RPM
Operating Temperature: -20°C +120°C
Series: 6200
Material: GCR15 Bearing Steel
Closures: Metal Shielded Both Sides

Package Includes:

624zz Ball Bearing (4x13x5)

	Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc
	Hackaday serves up fresh hacks every day from around the Internet.
	Instructables is a community for people who enjoy making things. Explore, share, and do your next project with us!
	Where the world builds software
	Raspberry Pi Foundation: What would you like to make today?
	Arduino’s mission is to enable anyone to enhance their lives through accessible electronics and digital technologies.
	Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:	There may be slight size deviations due to manual measurement, variations in measuring methods, and the use of different tools. The picture may not accurately reflect the actual colour of the item due to variations in photography lighting, angles, and display monitors.

Weight	0.003 kg
Dimensions	1.3 × 1.3 × 0.5 cm
Pack Qty	1 Pack, 2 Pack, 4 Pack

Product Applications

624-ZZ Miniature Ball Bearings are used in a wide range of applications from Automation Control Components to Robotic Systems, Chemical Lab Equipment, High Speed Applications, Food Processing Equipment, Hand Piece, RC Helicopters, RC Planes, Fan Motors, among others.
