4x10-Bit WS2812 (a.k.a Neopixel) RGD LED Ring

WS2812 5050 RGB LED with Integrated Drivers

CJMCU 4×10-Bit WS2812 RGB LED Ring

Name: CJMCU 4x10-Bit WS2812 RGB LED Ring
SKU: TS-P1381
Availability: InStock

4×10-Bit WS2812 RGB LED Ring Controlled by a microcontroller (Arduino, ESP32, Raspberry Pi, etc.) using libraries like Adafruit NeoPixel or FastLED.

$11.95

7 in stock

CJMCU 4x10-Bit WS2812 RGB LED Ring

This item: CJMCU 4x10-Bit WS2812 RGB LED Ring

7 in stock

$11.95

3W 200 Lumen White LED Lighting Module

1 × 3W 200 Lumen White LED Lighting Module

4 in stock

$5.95

CJMCU 21-Bit WS2812 RGB LED 50mm 3 Ring

1 × CJMCU 21-Bit WS2812 RGB LED 50mm 3 Ring

2 in stock

$12.95

10MM LED RBG LED Module Light Emitting Diode

This is a 10MM RGB LED display module. You can make it display colorful light with PWM duty cycle.

1 × 10MM LED RBG LED Module Light Emitting Diode

11 in stock

$2.95

Title	Qty	Discount
Qty Discount	4 - 9	5% $11.35
Qty Discount	10 +	8% $10.99

SKU: TS-P1381

Categories:LED - diodes, displays, modules, LED modules

Description

Additional information

Applications

Support & Utility

Q & A

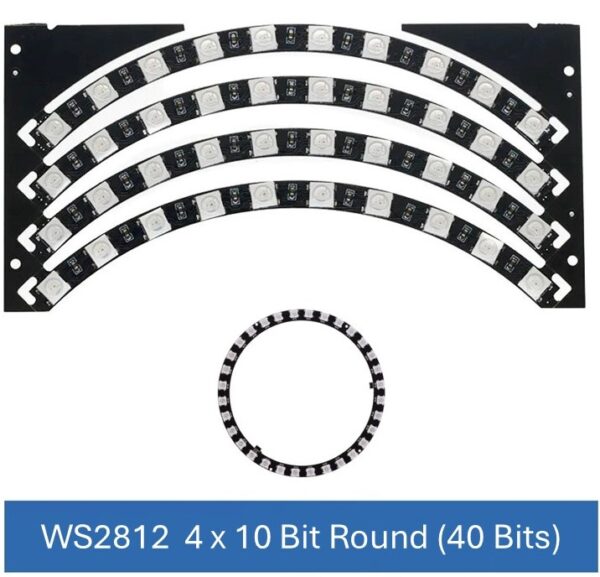

The CJMCU 4×10-Bit WS2812 RGB LED Ring is a compact circular LED module featuring 40 addressable RGB LEDs arranged in a ring shape, utilising the popular WS2812 (also known as NeoPixel) driver chips.

Specifications:

LEDs: 4×10 × WS2812 (RGB, addressable).
Operating Voltage: 5V DC.
Data Protocol: Single-wire, serial (800 kHz).
Power Consumption: Approximately 60mA per LED at full brightness (maximising to ~2400mA for all 40 LEDs).

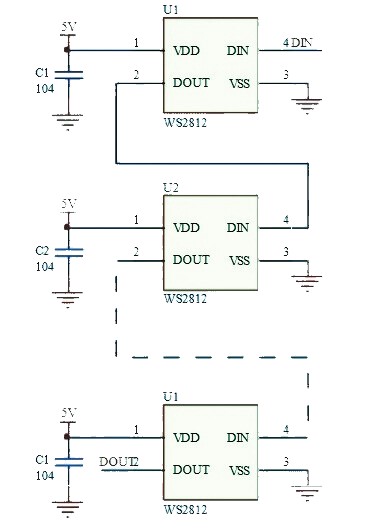

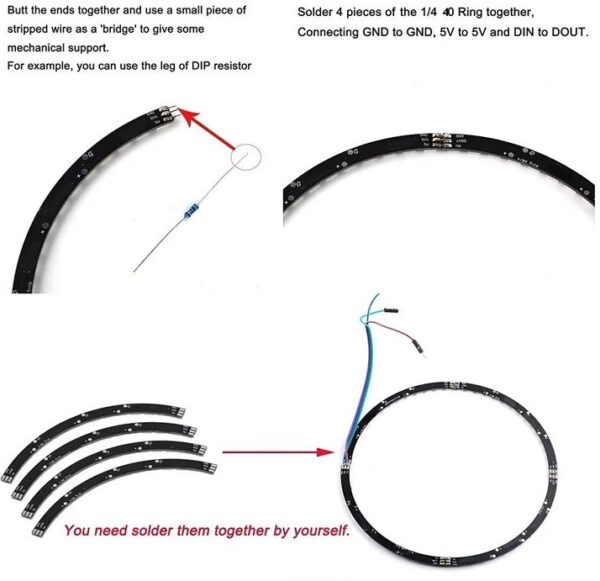

Chainable: The Data out pin allows you to connect multiple rings/strips in series.
Viewing Angle: ~120°.

Package Includes:

1x CJMCU 4×10-Bit WS2812 RGB LED Ring

	Check out our Clearance and on-sale items. Development Resources: Demo Codes, Schematics, Datasheets, Etc
	Hackaday serves up fresh hacks from around the Internet every day.
	Instructables is a community for people who enjoy creating and sharing their projects. Explore, share, and do your next project with us!
	Where the world builds software
	Raspberry Pi Foundation: What would you like to make today?
	Arduino’s mission is to enable anyone to enhance their lives through Accessible electronics and Digital Technologies.
	Wikipedia is a free online Encyclopedia created and edited by volunteers worldwide and hosted by the Wikimedia Foundation.
Notes:	There may be slight size deviations due to manual measurement and measurement variations. The picture may not reflect the item’s actual colour due to different lighting, angles, and displays.
