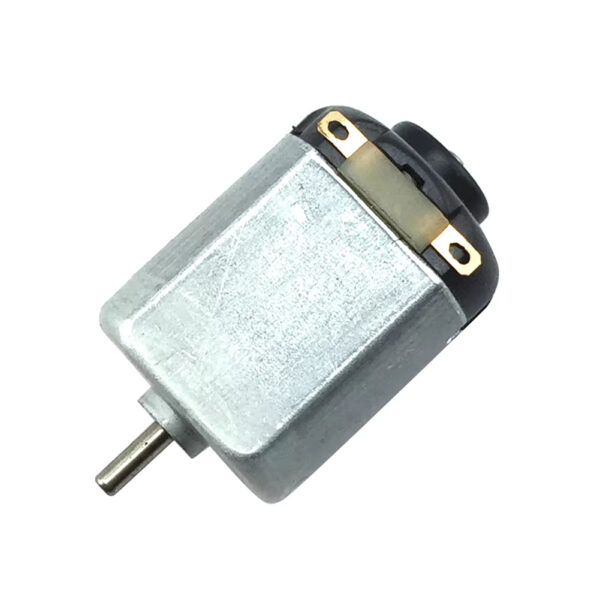

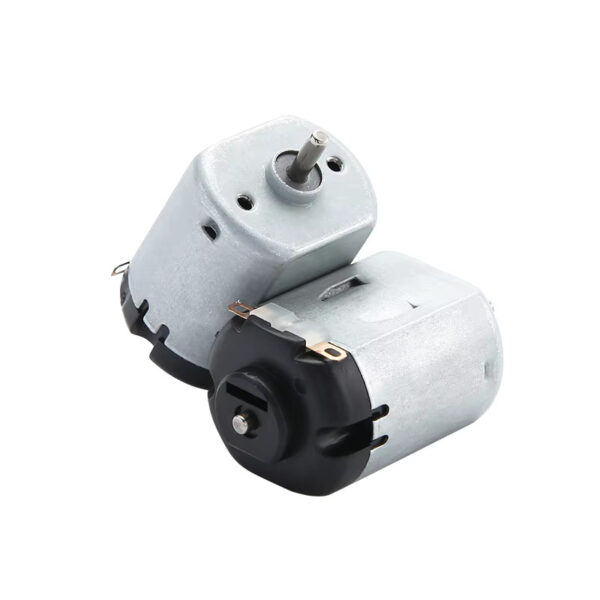

DC Motor R130 3-6V 26400 RPM

Specifications:

• Bear Solder Tabs
• Black End
• Rated Voltage: 3VDC
• Working Voltage: DC 1 ~ 6V
• Reference  Current: 0.2-0.4A
• Max. Speed: 26,400 RPM (13,200 RPM @3V)-+5%
• Test Data:
• Voltage: 1.5V No-load Speed: 6500RPM    Current:0.15A
• Voltage: 3.0V No-load Speed: 13200RPM  Current:0.20A
• Voltage: 4.5V No-load Speed: 19800RPM  Current:0.25A
• Voltage: 6.0V No-load Speed: 26400RPM  Current:0.30A
• Body Size: 25mm x 20mm x 15mm
• Shaft Size: 9mm x 2mm diameter
• Operating Temperature: -10°C ~ +60°C
• Weight: 14 grams

Operating Tips:

• Voltage: Operating it at 6V gives you the best speed (26,400 RPM), but running it at 3V will reduce the speed proportionally, potentially increasing its lifespan.
• Heat Management: Prolonged high-speed operation may generate heat, so consider providing ventilation or using the motor intermittently in high-speed applications.

Package Includes:

• DC Motor R130 3-6V 26,400 RPM Black end
